| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Model number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Temperature Fluctuation: | ±1℃ | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever |
| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany | Standards: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 4 |
| Condenser Mode: | Water-cooled |

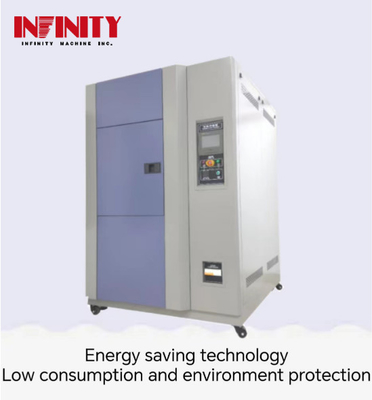

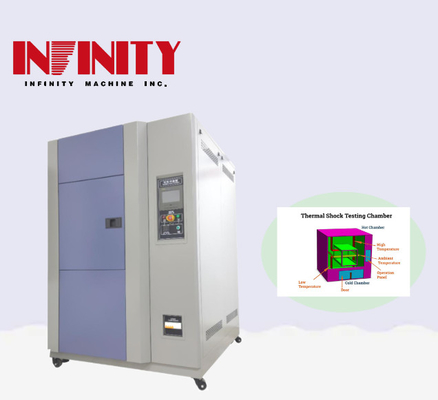

Coating Hot and Cold Impact Test Chamber with 30kg/Layer Bearing Weight Specimen Holder

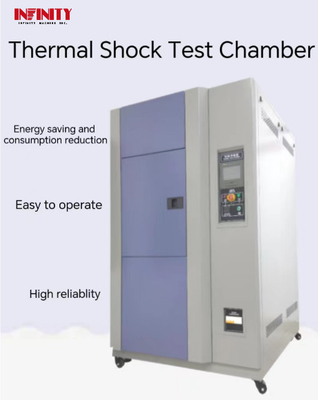

One of the standout features of this Thermal Shock Test Chamber is its energy-saving and consumption reduction capabilities. It uses a gas-liquid bypass mode to adjust the cooling capacity and achieve constant temperature and humidity. The programmed color LCD touch controller and reference group PID control make operation simple, and the experimental data recording and processing mode is flexible.
In terms of reliability, this Hot and Cold Impact Test Chamber is built to last. The key parts are imported to ensure a long service life and high reliability. The observation window is W300 *H400mm and is installed on the box door. The multi-layer insulating electric thermal coated glass provides effective heat preservation and prevents condensation.
The box door is designed to be opened alone, and features a door frame heating wire to prevent condensation at the door frame at low temperatures. Overall, this Thermal Shock Test Chamber is a reliable and efficient way to test the durability of products in extreme temperature conditions.

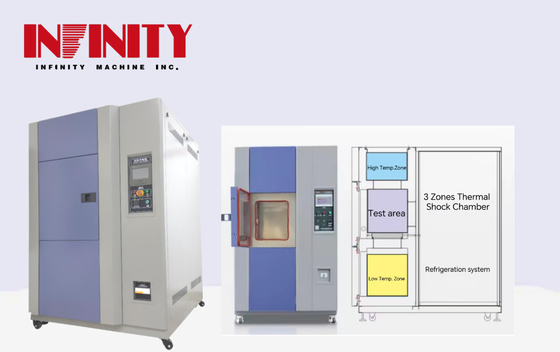

The Thermal Shock Test Chamber is also known as the Hot and Cold Impact Test Chamber. It is designed to simulate the temperature and humidity changes under the condition of cold and cold impact test, so as to evaluate the quality of the test products.
| Product name: | Programmable Cold And Hot Shock Test Chamber |
| Model number: | IE31A1 Series |
| Equipment overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
| Internal box size: | WxHxD(mm): 500x400x400(or Specify) |
| Heating rate (heat storage area): | Up From RT To + 150℃ About 50min Is Required(or Specify) |
| Observation window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Specimen holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Box door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |

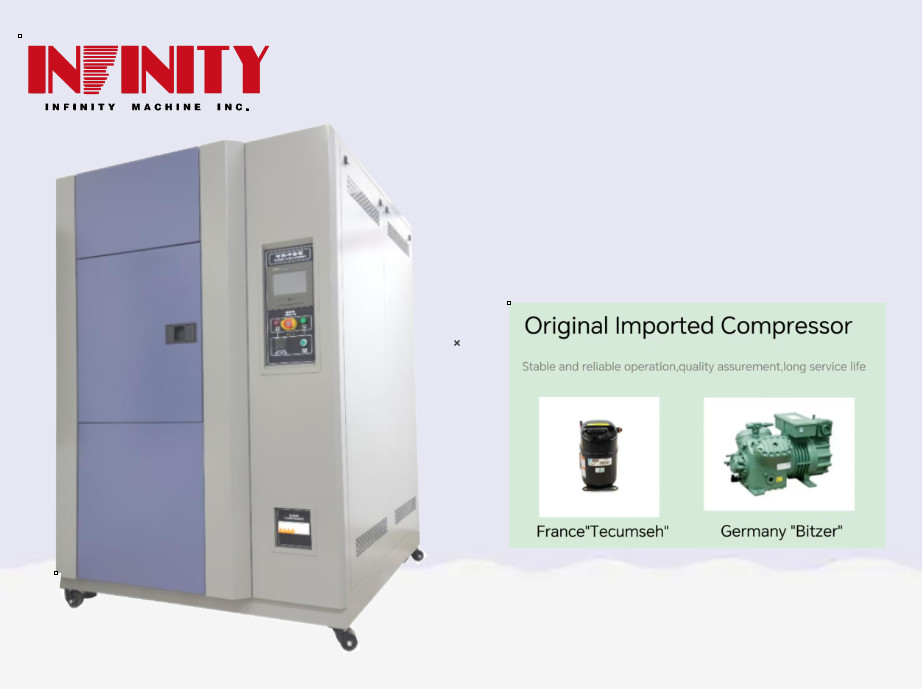

| Refrigeration compressor: | Half-compact Compressor In Bitzer, Germany |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Suitable for: | Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
The Thermal Shock Test Chamber is designed for testing the ability of products to withstand sudden temperature changes. It is widely used in the electronics, aerospace, automotive, and other industries where products are exposed to extreme temperature changes. This product is ideal for testing electronic components, circuit boards, and other products that may be affected by thermal shock.
The Hot and Cold Impact Test Chamber can simulate the harsh environment that products may face during transportation, storage, or use.
The programmable temperature control system allows you to set the temperature and time for each cycle, ensuring accurate and repeatable testing results. The specimen holder is made of stainless steel, which can bear a weight of 30kg per layer and is adjustable in height.
The Thermal Shock Test Chamber has a W300 *H400mm observation window installed on the box door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. The thermal insulation box is made of high-quality carbon steel plate with an electrostatic color spray plastic treatment on the surface. The inner wall is made of SUS304 # fog surface stainless steel plate. The thermal insulation material is made of hard polyurethane foam thermal insulation layer + glass fiber.
The source of the Thermal Shock Test Chamber is AC380V;50Hz;18KW (or specify), ensuring stable and reliable performance. The product is supplied in clear sheet+sponge+wooden carton packaging and has a delivery time of 20-30 days after order confirmation. Payment terms accepted are TT, PAYPAL, Moneygram, and so on. With a supply ability of 200 sets per month, the INFINITY IE31A1 Series Thermal Shock Test Chamber is an excellent investment for your testing needs.
Product Packaging:
The Thermal Shock Test Chamber will be packaged securely in a wooden crate to ensure safe delivery. The crate will be labeled with the product name, model number, and any special handling instructions.
Shipping:
The Thermal Shock Test Chamber will be shipped via a reliable carrier service that specializes in handling delicate and sensitive equipment. The carrier will be instructed to handle the package with care and to monitor its progress throughout the shipping process. The customer will be provided with a tracking number to monitor the delivery of their product.
What is the brand name of the Thermal Shock Test Chamber?
The brand name of the Thermal Shock Test Chamber is INFINITY .
What is the model number of the Thermal Shock Test Chamber?
The model number of the Thermal Shock Test Chamber is IE31A1 Series .
Where is the Thermal Shock Test Chamber made?
The Thermal Shock Test Chamber is MADE IN CHINA .
What certifications does the Thermal Shock Test Chamber have?
The Thermal Shock Test Chamber has CE and ISO certifications.
What is the minimum order quantity for the Thermal Shock Test Chamber?
The minimum order quantity for the Thermal Shock Test Chamber is 1 .
