| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Model number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Source: | AC380V;50Hz;18KW(or Specify) | Condenser Mode: | Water-cooled |
| Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin | Temperature Fluctuation: | ±1℃ |
| Standards: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 4 |
Water-cooled Hot and Cold Impact Test Chamber with Adjustable Height Specimen Holder
The Thermal Shock Test Chamber is equipped with an openable door that can be operated independently. The door frame features a heating wire to prevent condensation at the door frame at low temperature. The internal box size measures WxHxD(mm): 500x400x400 (or specify), providing ample space for testing different products. The temperature uniformity of the chamber is ≦2.0℃, ensuring accurate and reliable temperature testing results. The heating rate (heat storage area) required to reach the desired temperature of up from RT to + 150℃ takes about 50min (or specify) of operation.
The Thermal Shock Test Chamber is ideal for testing products that are susceptible to temperature changes, such as electronic products, automotive parts, and consumer goods. The product is designed to simulate the drastic temperature changes that can occur during transportation, storage, and usage. By subjecting products to extreme temperature changes, manufacturers can ensure that their products can withstand harsh conditions and are safe for consumer use.
In summary, the Thermal Shock Test Chamber is a high-quality, reliable, and efficient product that provides accurate temperature testing results. With its ability to meet various industry standards and simulate extreme temperature changes, the product is an essential tool for manufacturers looking to ensure the safety and durability of their products.
Hot and Cold Impact Test Chamber
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J/T10187-91Y73 Series Temperature Change Test Box-three-box Type; Meet The Standard IEC68-2-14 Test Method Temperature Change. |
| Thermal insulation box | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Box door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Cooling medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Observation window | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature uniformity | ≦2.0℃ |
| Equipment overview | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
| Temperature range | -65℃ ～ +150℃ |
| Internal box size | WxHxD(mm): 500x400x400(or Specify) |
The INFINITY IE31A1 Series Thermal Shock Test Chamber, made in China, is a high-quality and reliable product designed to perform hot and cold impact tests on a variety of materials and products. It is certified by CE and ISO, ensuring that it meets high standards of quality and safety.
This Hot and Cold Impact Test Chamber is perfect for testing materials and products that will be exposed to extreme temperature changes, such as electronic components, automotive parts, aerospace components, and more. It is designed to provide accurate and reliable test results, with a temperature fluctuation of ±1℃ and a temperature uniformity of ≦2.0℃.

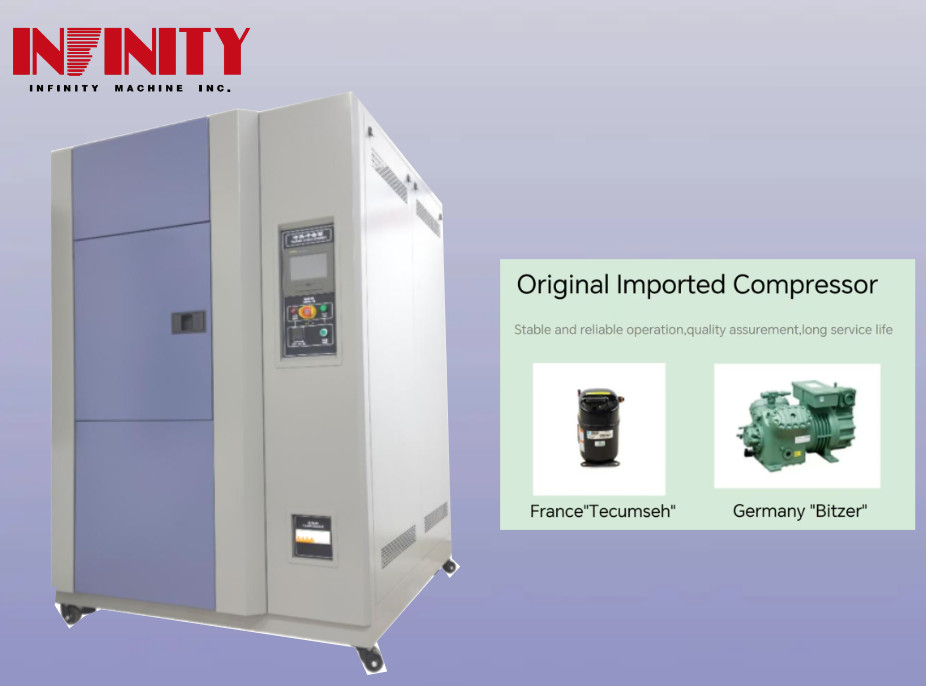

The thermal shock test chamber features a half-compact compressor from Bitzer, Germany, ensuring high efficiency and low energy consumption. The gas-liquid bypass mode helps to adjust the cooling capacity to achieve constant temperature and humidity, resulting in energy savings and consumption reduction.
Operating this hot and cold impact test chamber is simple thanks to the programmed color LCD touch controller that uses reference group PID control. The experimental data recording and processing mode is flexible, allowing for easy analysis and interpretation of test results.
The key parts of this hot and cold impact test chamber are imported, ensuring a high level of reliability and a long service life. It has a temperature range of -65℃ ～ +150℃, making it suitable for a wide range of applications.
With a minimum order quantity of 1 and a supply ability of 200 sets/month, the INFINITY IE31A1 Series Thermal Shock Test Chamber is an excellent choice for businesses and organizations that require a reliable and accurate hot and cold impact test chamber. The price is negotiable and payment terms include TT, PayPal, and Moneygram. The packaging details include clear sheet+sponge+wood carton, and delivery time is 20-30 days after order confirmation.
The IE31A1 Series also comes equipped with a W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. Safety protection features include Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection.
Our minimum order quantity is 1 and pricing is negotiable. Packaging details include clear sheet+sponge+wood carton and delivery time is 20-30 days after order confirmation. Payment terms accepted include TT, PAYPAL, Moneygram and more. Don't hesitate to contact us for more information on this top-quality Thermal Shock Test Chamber from INFINITY.
The Thermal Shock Test Chamber product comes with technical support and services to ensure optimal performance and efficiency. Our team of experts is available to provide assistance with installation and setup, as well as troubleshooting and repair services. In addition, we offer calibration and maintenance services to ensure that the chamber is operating at peak performance. Our technical support team is committed to providing timely and effective solutions to any issues that may arise, and we strive to minimize any downtime that may occur. Contact us for more information on our technical support and services.
Product Packaging:
The Thermal Shock Test Chamber will be packaged in a sturdy wooden crate to ensure safe transportation. The chamber will be secured with foam padding and other protective materials to prevent any damage during shipping.
Shipping:
The Thermal Shock Test Chamber will be shipped via a trusted freight carrier to the designated address. The customer will be provided with a tracking number to monitor the shipment's progress. Delivery time may vary depending on the customer's location and any potential customs or import regulations.
Q: What is the brand name of this Thermal Shock Test Chamber?
A: The brand name of this Thermal Shock Test Chamber is INFINITY.
Q: What is the model number of this Thermal Shock Test Chamber?
A: The model number of this Thermal Shock Test Chamber is IE31A1 Series.
Q: Where is this Thermal Shock Test Chamber made?
A: This Thermal Shock Test Chamber is made in China.
Q: What certifications does this Thermal Shock Test Chamber have?
A: This Thermal Shock Test Chamber has CE and ISO certifications.
Q: What is the minimum order quantity for this Thermal Shock Test Chamber?
A: The minimum order quantity for this Thermal Shock Test Chamber is 1.
Q: What is the price of this Thermal Shock Test Chamber?
A: The price of this Thermal Shock Test Chamber is negotiable.
Q: What are the packaging details for this Thermal Shock Test Chamber?
A: The packaging details for this Thermal Shock Test Chamber are clear sheet+sponge+wood carton.
Q: What is the delivery time for this Thermal Shock Test Chamber?
A: The delivery time for this Thermal Shock Test Chamber is 20-30 days after order confirmed.
Q: What are the payment terms for this Thermal Shock Test Chamber?
A: The payment terms for this Thermal Shock Test Chamber are TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability for this Thermal Shock Test Chamber?
A: The supply ability for this Thermal Shock Test Chamber is 200 sets/month.
