| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50min Is Required(or Specify) | Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required(or Specify) |
|---|---|---|---|
| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany | Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Temperature Uniformity: | ≦2.0℃ | Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Product Name: | Programmable Cold And Hot Shock Test Chamber | Temperature Range: | -65℃ ～ +150℃ |

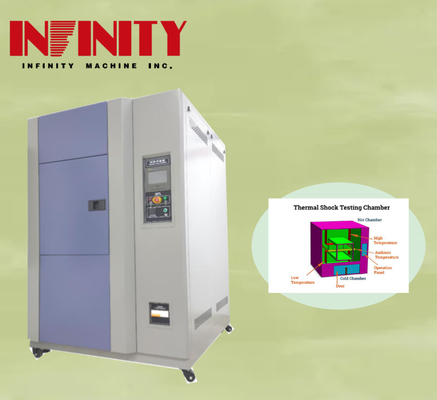

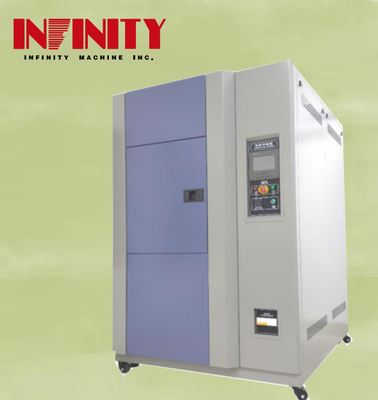

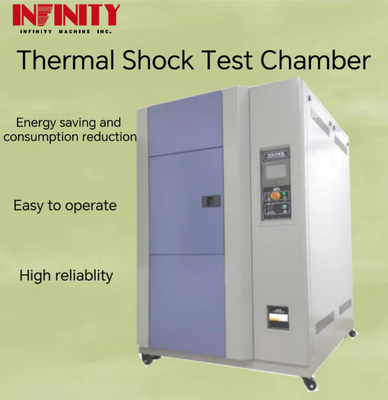

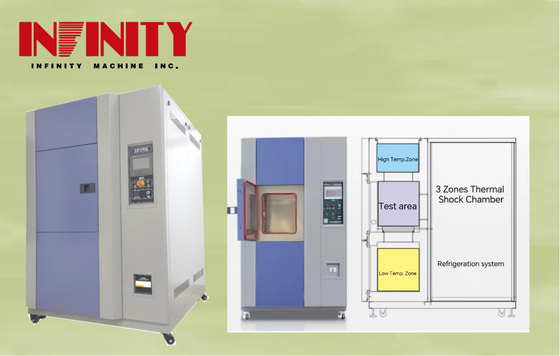

Advanced Technology Hot and Cold Impact Test Chamber with High Precision
Users can test the entire machine or parts, electrical appliances, instruments, materials, and coatings for the corresponding climate mutation test. The internal box size is 500x400x400mm, but it can be specified according to the user's requirements. The Thermal Shock Test Chamber is an excellent tool to assess the quality of products and materials.
The Thermal Shock Test Chamber is equipped with various safety protection devices to ensure that the testing process is safe and reliable. Some of these protection devices include Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High-Pressure Protection, Compressor Overheat Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection.
The Thermal Shock Test Chamber has a temperature uniformity of ≦2.0℃ and a temperature recovery time of within 5 minutes. These features make it an efficient and effective tool to simulate hot and cold impact tests.
Overall, the Thermal Shock Test Chamber is an essential equipment for testing products and materials. Its ability to simulate temperature and humidity changes under cold and hot conditions makes it a valuable tool for evaluating the quality of products. With its safety protection devices, it ensures a safe and reliable testing process.
Keywords: Thermal Shock Test Chamber, Hot and Cold Impact Test Chamber, Thermal Shock Test Chamber
| Product Name: | Thermal Shock Test Chamber |
| Model Number: | IE31A1 Series |
| Carton Size: | WxHxD(mm): 1480×1450×1950 (or Specify) |
| Internal Box Size: | WxHxD(mm): 500x400x400 (or Specify) |
| Source: | AC380V;50Hz;18KW(or Specify) |

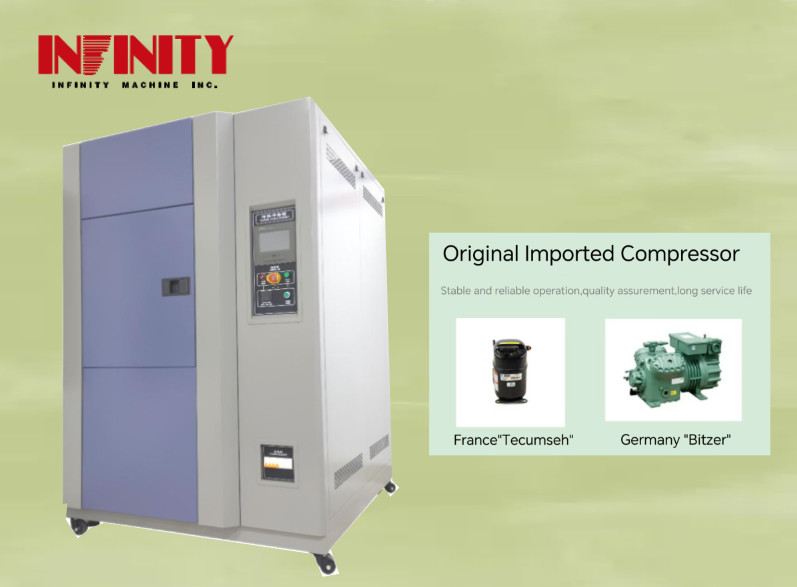

| Refrigeration Compressor: | Half-compact Compressor In Bitzer, Germany |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection. |
| Standards: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three-box Type; Meet The Standard IEC68-2-14_ Test Method _ Temperature Change. |
| Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
Our Thermal Shock Test Chamber is built to handle a variety of product application occasions and scenarios. The Stainless Steel Sample Frame 2 Layers is adjustable in height and can bear a weight of up to 30kg per layer, making it perfect for testing a wide range of products. The box door is designed to open alone, and comes equipped with a heating wire at the door frame to prevent condensation at low temperatures.
One of the standout features of our Thermal Shock Test Chamber is its energy-saving and consumption-reducing Gas-Liquid Bypass Mode, which adjusts the cooling capacity to maintain a constant temperature and humidity. The programmed color LCD touch controller and reference group PID control ensure simple operation, while the flexible experimental data recording and processing mode allows for easy data analysis.
Our Thermal Shock Test Chamber is also highly reliable, thanks to the imported key parts that ensure a long service life and reliability. The Water-Cooled Condenser Mode and adherence to standards such as GB/T2423.1-2001, GB/T2423.2-2001, and GJB360.7-87 Temperature Shock Test further ensure its quality and accuracy.
Ordering the Thermal Shock Test Chamber from INFINITY is easy and hassle-free. Our packaging details include a clear sheet, sponge, and wood carton, ensuring safe delivery of your product. With a delivery time of 20-30 days after order confirmation and payment terms that include TT, PayPal, and Moneygram, you can have peace of mind knowing that your order will be processed quickly and efficiently. Our supply ability of 200 sets per month ensures that we can meet the needs of businesses both large and small.
In summary, the Thermal Shock Test Chamber from INFINITY is an excellent choice for any business looking for a reliable, efficient, and top-quality Hot and Cold Impact Test Chamber. With its flexible applications, advanced features, and adherence to industry standards, it's the perfect choice for your testing needs. Contact us today to learn more about our products and pricing.
Brand Name: INFINITY
Model Number: IE31A1 Series
Place of Origin: Made in China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PayPal, Moneygram, and so on
Supply Ability: 200 sets / month
Thermal Shock Test Chamber:
Our thermal shock test chamber is designed to provide reliable and accurate testing of the impact of sudden temperature changes on products. We offer comprehensive technical support and services to ensure optimal performance and longevity of your chamber. Our services include:
We also offer customization options to meet the unique needs of your testing requirements. Contact us to learn more about our technical support and services.
Product Packaging:
The Thermal Shock Test Chamber will be packaged in a sturdy wooden crate and wrapped securely with plastic film to prevent any damage during transportation. The crate will also be marked with product information and handling instructions to ensure safe delivery.
Shipping:
The Thermal Shock Test Chamber will be shipped via a trusted and reliable courier service. The shipment will be insured and tracked to ensure safe and timely delivery. The customer will be provided with a tracking number and notified of the estimated delivery date.
Q: What is the brand name of the Thermal Shock Test Chamber?
A: The brand name of the Thermal Shock Test Chamber is INFINITY.
Q: What is the model number of the Thermal Shock Test Chamber?
A: The model number of the Thermal Shock Test Chamber is IE31A1 Series.
Q: Where is the Thermal Shock Test Chamber manufactured?
A: The Thermal Shock Test Chamber is made in China.
Q: What certifications does the Thermal Shock Test Chamber have?
A: The Thermal Shock Test Chamber is CE and ISO certified.
Q: What is the minimum order quantity for the Thermal Shock Test Chamber?
A: The minimum order quantity for the Thermal Shock Test Chamber is 1.
Q: What is the price of the Thermal Shock Test Chamber?
A: The price of the Thermal Shock Test Chamber is negotiable. Please contact us for more information.
Q: What are the packaging details for the Thermal Shock Test Chamber?
A: The packaging details for the Thermal Shock Test Chamber include: clear sheet+sponge+wood carton.
Q: What is the delivery time for the Thermal Shock Test Chamber?
A: The delivery time for the Thermal Shock Test Chamber is 20-30 days after order confirmed.
Q: What are the payment terms for the Thermal Shock Test Chamber?
A: The payment terms for the Thermal Shock Test Chamber include: TT, PayPal, Moneygram, and other methods. Please contact us for more information.
Q: What is the supply ability of the Thermal Shock Test Chamber?
A: The supply ability of the Thermal Shock Test Chamber is 200 sets per month.
