| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 50min Is Required(or Specify) |
|---|---|---|---|
| Product Name: | Programmable Cold And Hot Shock Test Chamber | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |
| Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As H | Carton Size: WxHxD(mm): | 1480×1450 ×1950(or Specify) |
| Temperature Recovery Time: | Within 5 Mint | Temperature Range: | -65℃ ～ +150℃ |
The Thermal Shock Test Chamber features a water-cooled condenser mode. It requires a source of AC380V;50Hz;18KW (or as specified). The chamber is equipped with multiple safety protection devices, including Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection. These safety features ensure the safe and reliable operation of the test chamber.
The cooling rate of the cold storage area is down from RT to -55℃, and it takes about 75 minutes (or as specified) to reach the target temperature. The test chamber comes with an observation window of W300 *H400mm installed on the box door. The multi-layer insulating electric thermal coated glass effectively provides heat preservation and prevents condensation, allowing for easy observation of the test specimens during the test.
The Thermal Shock Test Chamber is widely used in various industries, including aerospace, automotive, electronics, and military, for testing the reliability and durability of materials and products under extreme temperature conditions. It is an essential tool for quality control, research, and development, and product improvement. With its advanced features and comprehensive safety protection, the Thermal Shock Test Chamber is a reliable and efficient solution for thermal shock testing.

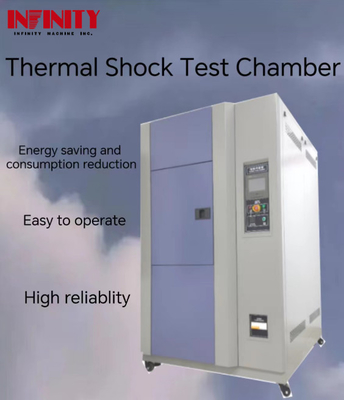

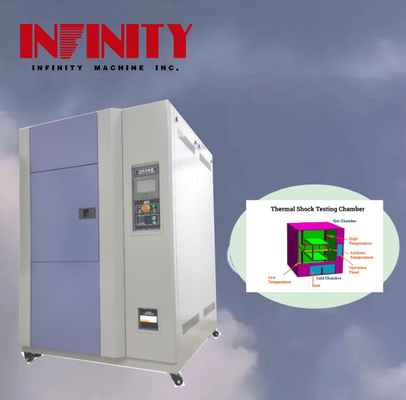

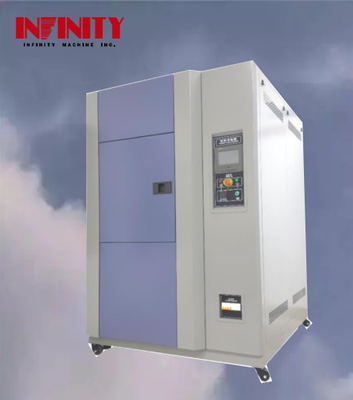

Thermal Shock Test Chamber, Hot and Cold Impact Test Chamber
| Product Name | Thermal Shock Test Chamber |
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three-box Type; Meet The Standard IEC68-2-14_ Test Method _ Temperature Change. |
| Source | AC380V;50Hz;18KW(or Specify) |
| Observation window | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature fluctuation | ±1℃ |
| Box door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Internal box size | WxHxD(mm): 500x400x400(or Specify) |
| Temperature recovery time | Within 5 Mint |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Specimen holder | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Carton size | WxHxD(mm): 1480×1450 ×1950(or Specify) |
The IE31A1 Series Thermal Shock Test Chamber is equipped with a water-cooled condenser mode, ensuring energy efficiency and consumption reduction. The gas-liquid bypass mode adjusts the cooling capacity to achieve constant temperature and humidity, allowing for a simple operation with a programmed color LCD touch controller reference group PID control. The experimental data recording and processing mode is flexible, ensuring high reliability and accuracy.
With a temperature uniformity of ≦2.0℃ and temperature fluctuation of ±1℃, this Thermal Shock Test Chamber guarantees accurate and precise testing results.
The IE31A1 Series Thermal Shock Test Chamber is suitable for various occasions and scenarios, including:
The IE31A1 Series Thermal Shock Test Chamber has a minimum order quantity of 1 and negotiable pricing. Packaging details include clear sheet+sponge+wood carton, and delivery time is estimated at 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and other options. With a supply ability of 200 sets per month, the IE31A1 Series Thermal Shock Test Chamber is a reliable and efficient testing solution for various industries.
The box door of the IE31A1 Series can be opened alone, and a door frame heating wire can be added to prevent condensation at the door frame during low temperatures. Our Hot and Cold Impact Test Chamber uses non-fluorine environmental protection refrigerant R404A R23 to comply with environmental protection regulations, ensuring safety and non-toxicity.
For easy observation, we have installed a W300 *H400mm observation window on the box door, which is made of multi-layer insulating electric thermal coated glass that can effectively provide heat preservation and prevent condensation.
Our thermal shock test chamber is customizable. The minimum order quantity is 1, and the price is negotiable. We use clear sheet+sponge+wood carton for packaging. Delivery time is 20-30 days after order confirmation, and we accept TT PAYPAL Moneygram and other payment terms. The source is AC380V;50Hz;18KW (or specify).
The Thermal Shock Test Chamber is designed to test the ability of a product to withstand sudden and extreme changes in temperature. Our product technical support team is available to assist with any questions regarding the operation and maintenance of the chamber. Additionally, we provide a range of services including installation, calibration, and repairs to ensure your chamber is always performing at its best.
Product Packaging:
The Thermal Shock Test Chamber is packaged in a sturdy wooden crate with foam padding to ensure maximum protection during shipping. The package dimensions are 2.5 meters in length, 1.5 meters in width, and 2 meters in height. The total weight of the package is approximately 1200 kg.
Shipping:
The Thermal Shock Test Chamber will be shipped via freight on a pallet. The customer will be responsible for arranging and paying for the shipping. The estimated shipping time is 4-6 weeks, depending on the destination.
1. What is the brand name of the thermal shock test chamber?
The brand name of the thermal shock test chamber is INFINITY.
2. What is the model number of the thermal shock test chamber?
The model number of the thermal shock test chamber is IE31A1 Series.
3. Where is the thermal shock test chamber manufactured?
The thermal shock test chamber is made in China.
4. What certifications does the thermal shock test chamber have?
The thermal shock test chamber has CE and ISO certifications.
5. What is the minimum order quantity of the thermal shock test chamber?
The minimum order quantity of the thermal shock test chamber is 1.
6. What is the price of the thermal shock test chamber?
The price of the thermal shock test chamber is negotiable.
7. What are the packaging details for the thermal shock test chamber?
The packaging details for the thermal shock test chamber are clear sheet+sponge+wood carton.
8. What is the delivery time for the thermal shock test chamber?
The delivery time for the thermal shock test chamber is 20-30 days after order confirmed.
9. What are the payment terms for the thermal shock test chamber?
The payment terms for the thermal shock test chamber are TT, PayPal, Moneygram, and so on.
10. What is the supply ability of the thermal shock test chamber?
The supply ability of the thermal shock test chamber is 200 sets per month.
