| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Model number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 75min Is Required(or Specify) | Product Name: | Programmable Cold And Hot Shock Test Chamber |
|---|---|---|---|
| Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin | Temperature Uniformity: | ≦2.0℃ |
| Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As H | Condenser Mode: | Water-cooled |
| Carton Size: WxHxD(mm): | 1480×1450 ×1950(or Specify) |
R404A R23 Comply With Environmental Protection Regulations Hot and Cold Impact Test Chamber
One of the most crucial features of the Thermal Shock Test Chamber is its fast temperature recovery time. This chamber can achieve the desired temperature within five minutes, making it a time-efficient tool for testing products. Additionally, the internal box size of the chamber is 500x400x400mm, and it can be customized as per the requirement of the customer.
The chamber door is designed to open alone, and it also has a door frame heating wire that prevents condensation at low temperatures. This feature ensures that the chamber door remains functional even in extreme conditions.
The Thermal Shock Test Chamber is designed with various safety protection devices, including heater air defense incineration protection, heater overcurrent protection, circulation fan overcurrent overload protection, compressor high-pressure protection, compressor overheat protection, compressor overcurrent protection, overvoltage under reverse phase protection, circuit breaker, and leakage protection. These safety measures ensure that the equipment remains functional and safe even in the most challenging testing conditions.
Another essential feature of the Thermal Shock Test Chamber is its cooling medium, which is the non-fluorine environmental protection refrigerant R404A R23. This coolant is safe, non-toxic, and complies with environmental protection regulations.
In summary, the Thermal Shock Test Chamber is a reliable and efficient tool for testing products' ability to withstand extreme temperatures. Some of its key attributes include fast temperature recovery time, customizable internal box size, functional door design, and various safety protection devices. Its cooling medium is also safe and environmentally friendly, making it a valuable tool for various industries.
Thermal Shock Test Chamber, Thermal Shock Test Chamber, Hot and Cold Impact Test Chamber
| Product Name | Programmable Cold And Hot Shock Test Chamber |
| Model Number | IE31A1 Series |
| Internal Box Size | WxHxD(mm): 500x400x400(or Specify) |
| Temperature Fluctuation | ±1℃ |
| Cooling Rate (Cold Storage Area) | Down From RT To-55℃ About 75min Is Required(or Specify) |
| Source | AC380V;50Hz;18KW(or Specify) |
| Condenser Mode | Water-cooled |
| Specimen Holder | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Equipment Overview | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
The INFINITY IE31A1 series Thermal Shock Test Chamber is a highly reliable testing equipment designed to test the ability of materials to withstand extreme temperature changes. The chamber is made in China and certified by CE and ISO, ensuring its quality and performance. It has a minimum order quantity of 1, and the price is negotiable. The packaging consists of a clear sheet, sponge, and wooden carton, and the delivery time is 20-30 days after order confirmation. We accept payment through TT, PayPal, Moneygram, and other modes, and our supply ability is 200 sets per month.
The Thermal Shock Test Chamber can be used for a variety of product application occasions and scenarios. It conforms to various standards such as GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, and other standards like GJB150.3-86, GJB150.4-86, GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, J/T10187-91Y73 Series Temperature Change Test Box-three-box Type, and meets the IEC68-2-14 Test Method - Temperature Change standard.

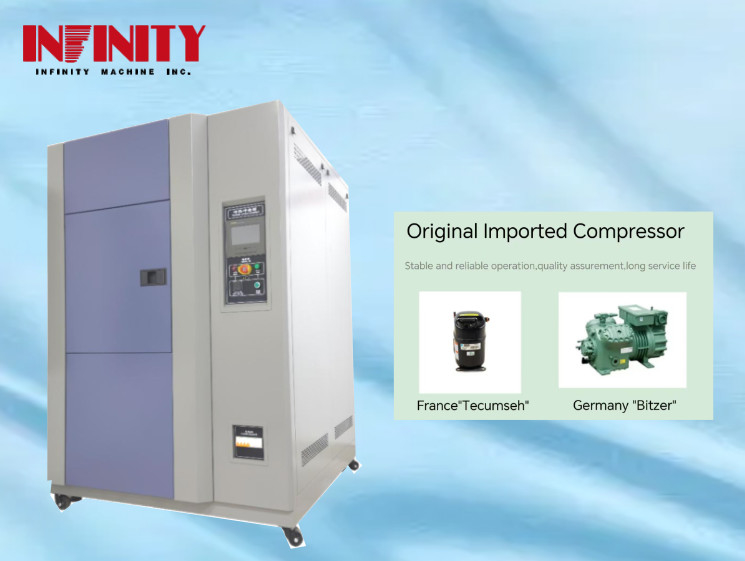

The Thermal Shock Test Chamber can be used for testing the reliability and durability of products such as electronic components, semiconductors, rubber, plastics, metals, and other materials. It can simulate the harsh environmental conditions that the products may encounter during transportation, storage, and use. The chamber can perform hot and cold impact tests, thermal shock tests, and other temperature-related tests. It has a cooling rate of down from RT to -55℃, which takes about 75 minutes or as specified. The refrigeration compressor is a half-compact compressor made in Bitzer, Germany, ensuring its energy-saving and consumption reduction features. The chamber uses a gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. The color LCD touch controller with programmed reference group PID control makes the operation simple, and the experimental data recording and processing mode is flexible.
Brand Name: INFINITY
Model Number: IE31A1 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Safety protection device: Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection.
Product name: Programmable Cold And Hot Shock Test Chamber
Observation window: W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Source: AC380V;50Hz;18KW(or Specify)
Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
The Thermal Shock Test Chamber is a highly specialized piece of equipment that requires technical support and services to ensure proper operation and maintenance. Our team of experts provides a range of services, including:
We also offer comprehensive technical support to assist with any issues or questions that may arise during the use of the chamber. Our team is available to provide troubleshooting assistance, remote support, and on-site service if necessary.
Our goal is to ensure that your Thermal Shock Test Chamber operates at peak performance and reliability throughout its lifespan. Contact us for more information on our technical support and services.
Product Packaging:
The Thermal Shock Test Chamber will be carefully packed in a wooden crate to ensure its safe delivery to your doorstep. The crate will be sealed and marked with fragile stickers to avoid any damage during transportation.
Product Shipping:
We offer worldwide shipping for the Thermal Shock Test Chamber. The shipping cost will be calculated based on your location and the weight of the product. Once your order has been processed, we will provide you with a tracking number so you can easily track your shipment.
What is the brand name of the Thermal Shock Test Chamber?
The brand name of the Thermal Shock Test Chamber is INFINITY.
2.What is the model number of the Thermal Shock Test Chamber?
The model number of the Thermal Shock Test Chamber is IE31A1 Series.
3.Where is the Thermal Shock Test Chamber made?
The Thermal Shock Test Chamber is made in China.
4.What certifications does the Thermal Shock Test Chamber have?
The Thermal Shock Test Chamber has CE and ISO certifications.
5.What is the minimum order quantity for the Thermal Shock Test Chamber?
The minimum order quantity for the Thermal Shock Test Chamber is 1.
6.What is the price of the Thermal Shock Test Chamber?
The price of the Thermal Shock Test Chamber is negotiable.
7.What are the packaging details for the Thermal Shock Test Chamber?
The packaging details for the Thermal Shock Test Chamber are clear sheet+sponge+wood carton.
8.What is the delivery time for the Thermal Shock Test Chamber?
The delivery time for the Thermal Shock Test Chamber is 20-30 days after order confirmed.
9.What are the payment terms for the Thermal Shock Test Chamber?
The payment terms for the Thermal Shock Test Chamber are TT, PayPal, Moneygram, and so on.
10.What is the supply ability of the Thermal Shock Test Chamber?
The supply ability of the Thermal Shock Test Chamber is 200 sets per month.
