| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Model number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Standards: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 4 | Carton Size: WxHxD(mm): | 1480×1450 ×1950(or Specify) |
|---|---|---|---|
| Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M | Temperature Uniformity: | ≦2.0℃ |
| Source: | AC380V;50Hz;18KW(or Specify) | Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As H |
| Product Name: | Programmable Cold And Hot Shock Test Chamber |
Experimental Data Recording And Processing Mode Is Flexible Temperature Rapid Change Tester

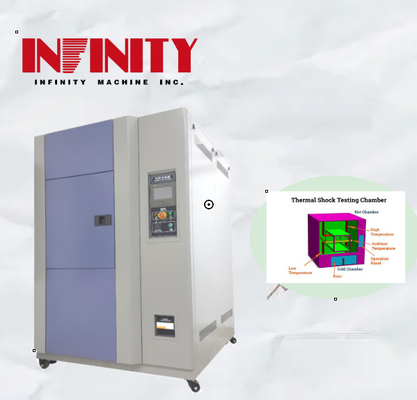

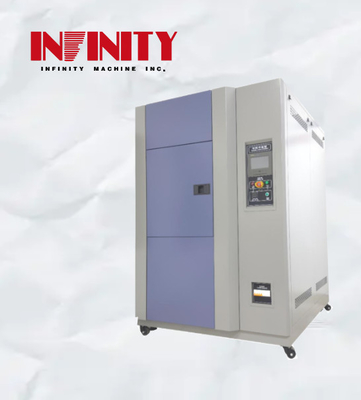

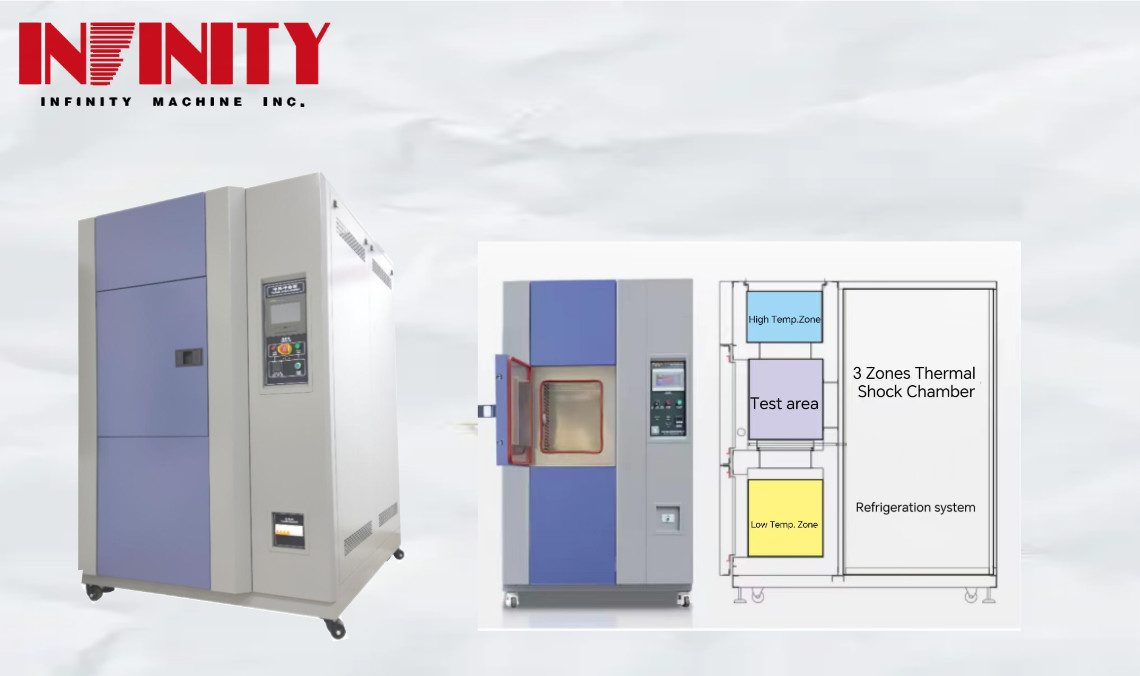

The Thermal Shock Test Chamber is an energy-efficient equipment that uses the gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. This feature reduces energy consumption and saves costs. Its simple operation is made possible with a programmed color LCD touch controller reference group PID control, experimental data recording, and flexible processing mode. The key parts of the equipment are imported parts, ensuring the service life and reliability of the equipment.
The Thermal Shock Test Chamber meets several standards such as GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Standard GJB150.3-86, Standard GJB150.4-86, Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, J/T10187-91Y73 Series Temperature Change Test Box-three-box Type, and meets the standard IEC68-2-14 Test Method - Temperature Change.
The Thermal Shock Test Chamber has an internal box size of WxHxD(mm): 500x400x400 (or specify) and a carton size of WxHxD(mm): 1480x1450x1950 (or specify). With these features, the Thermal Shock Test Chamber is an ideal equipment for performing thermal shock testing on various materials and products.
Thermal Shock Test Chamber, Temperature Rapid Change Tester, Thermal Shock Test Chamber
| Product Name | Thermal Shock Test Chamber |

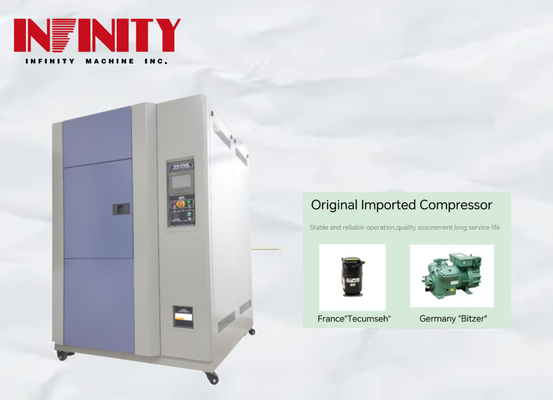

| Refrigeration Compressor | Half-compact Compressor in Bitzer, Germany |
| Condenser Mode | Water-cooled |
| Source | AC380V;50Hz;18KW (or specify) |
| Temperature Fluctuation | ±1℃ |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic |
| Observation Window | W300 *H400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. |
| Specimen Holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. |
| Cooling Rate (Cold Storage Area) | Down from RT to -55℃ about 75min is required (or specify) |
| Thermal Insulation Box |
|
| Features |
|
Other names: Temperature Rapid Change Tester
The IE31A1 Series Thermal Shock Test Chamber is perfect for use in research and development laboratories, quality control departments, and production lines. It can be used to test a variety of products, including electronic components, plastics, metals, and more. The Temperature Rapid Change Tester is capable of producing temperature changes of up to 30°C per minute, which makes it ideal for simulating extreme temperature changes that products may experience during transportation or use.
The IE31A1 Series Thermal Shock Test Chamber is also perfect for use in the automotive industry, where it can be used to test the durability of parts and components in extreme temperatures. It can be used to test the durability of engine components, brake systems, and other critical parts that are subjected to extreme temperatures during use. The Thermal Shock Test Chamber is capable of producing temperatures ranging from -40°C to 150°C, which makes it ideal for simulating extreme temperature changes that these parts may experience during use.
The IE31A1 Series Thermal Shock Test Chamber is also ideal for use in the aerospace industry, where it can be used to test the durability of components that are subjected to extreme temperatures during flight. It can be used to test the durability of materials used in spacecraft, satellites, and other aerospace applications. The Temperature Rapid Change Tester is capable of producing temperature changes of up to 30°C per minute, which makes it ideal for simulating extreme temperature changes that these components may experience during flight.
The IE31A1 Series Thermal Shock Test Chamber is a high-quality product that is built to last. It comes with a non-fluorine environmental protection refrigerant that complies with environmental protection regulations and is safe and non-toxic. The Thermal Shock Test Chamber is capable of producing temperatures ranging from -40°C to 150°C and has a source of AC380V;50Hz;18KW. The internal box size is WxHxD(mm): 500x400x400 (or Specify) and the carton size is WxHxD(mm): 1480×1450 ×1950 (or Specify).
The IE31A1 Series Thermal Shock Test Chamber is available for purchase with a negotiable price. The minimum order quantity is 1 and it comes with clear sheet+sponge+wood carton packaging details. The delivery time is 20-30 days after order confirmed and payment terms include TT, PAYPAL, Moneygram, and so on. The Thermal Shock Test Chamber has a supply ability of 200 sets per month, which makes it readily available for purchase.
Brand Name: INFINITY
Model Number: IE31A1 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Model number: IE31A1 Series
Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
Cooling rate (cold storage area): Down From RT To-55℃ About 75min Is Required(or Specify)
Box door: Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature.

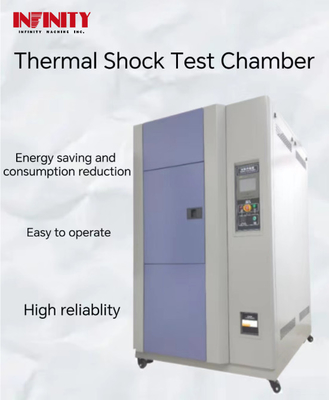

Features: Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability.
This product is a Thermal Shock Test Chamber, also known as a Temperature Rapid Change Tester.
Product Packaging:
The Thermal Shock Test Chamber will be packed in a sturdy wooden crate to ensure it is protected during transportation. The crate will be properly sealed and labeled with the necessary shipping information.
Product Shipping:
The Thermal Shock Test Chamber will be shipped via a reliable carrier service to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and weight of the product. The customer will be provided with a tracking number to monitor the shipment's progress.
Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE31A1 Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What payment methods are accepted for this product?
A: We accept TT, PayPal, Moneygram, and other payment methods. Please contact us for more details.
Q: What is the supply ability of this product?
A: The supply ability of this product is 200 sets per month.
Q: What is the packaging details for this product?
A: The packaging details for this product include clear sheet, sponge, and wood carton.
Q: Is the price negotiable for this product?
A: Yes, the price for this product is negotiable. Please contact us for more information.
