| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A1 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Fluctuation: | ±1℃ | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Rever |
|---|---|---|---|
| Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Temperature Range: | -65℃ ～ +150℃ |
| Source: | AC380V;50Hz;18KW(or Specify) | Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin |
| Temperature Recovery Time: | Within 5 Mint | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation M |
Adjustable Cooling Capacity Temperature Rapid Change Tester Energy Saving Simple Operation

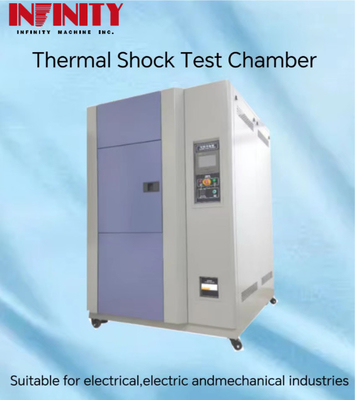

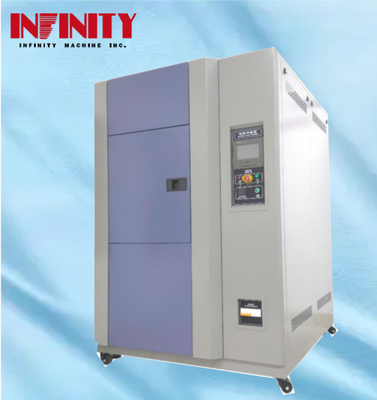

The IE31A1 Series features a Half-compact Compressor In Bitzer, Germany, ensuring efficient and reliable refrigeration performance. This makes it possible to quickly and accurately control the temperature inside the test chamber, creating the ideal conditions for testing products in various industries, including electronics, aerospace, automotive, and more.
The Thermal Shock Test Chamber is equipped with a W300 *H400mm Observation Window that is installed on the box door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation, allowing for easy observation of the test process without affecting the temperature and humidity inside the chamber.
The internal box size of the IE31A1 Series is WxHxD(mm): 500x400x400 (or specify), providing ample space for testing a wide range of products. Additionally, the Temperature Rapid Change Tester has a temperature recovery time of within 5 minutes, allowing for quick and efficient testing without downtime.
Overall, the IE31A1 Series Thermal Shock Test Chamber is an essential tool for any business looking to test the durability and reliability of their products. Its advanced features and reliable performance make it a top choice for businesses in various industries. Don't wait any longer to take your testing to the next level with the IE31A1 Series Thermal Shock Test Chamber.
| Product Name | Temperature Rapid Change Tester |
| Model | Thermal Shock Test Chamber |
| Heating Rate (Heat Storage Area) | Up From RT To + 150℃ About 50min Is Required (or Specify) |
| Box Door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Condenser Mode | Water-cooled |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Standard GJB150.3-86; Standard GJB150.4-86; Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three-box Type; Meet The Standard IEC68-2-14_ Test Method _ Temperature Change. |
| Temperature Recovery Time | Within 5 Min |
| Source | AC380V;50Hz;18KW (or Specify) |
| Carton Size (WxHxD) | 1480×1450 ×1950 (or Specify) |

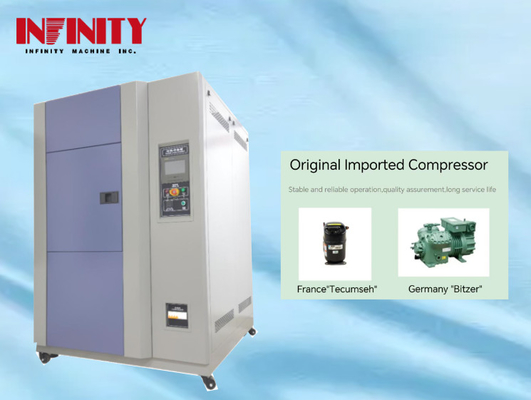

| Refrigeration Compressor | Half-compact Compressor In Bitzer, Germany |
The Thermal Shock Test Chamber is equipped with a half-compact compressor in Bitzer, Germany which ensures efficient cooling and heating rate of up to +150℃ in about 50 minutes. The condenser mode is water-cooled which helps in maintaining the temperature and humidity levels of the test chamber. The specimen holder is made of stainless steel and comes with 2 layers that are adjustable in height and can bear a weight of 30kg per layer.
The Thermal Shock Test Chamber is suitable for various product application occasions and scenarios. It can be used to test the resistance of materials and products to extreme temperature changes which can occur in aerospace, defense, automotive, electronics, and other industries. It is also perfect for testing the reliability of products in extreme temperature conditions, exposing potential weaknesses in the design and materials used.
The INFINITY IE31A1 Series Thermal Shock Test Chamber is available for a negotiable price with a minimum order quantity of 1. The packaging details include clear sheets, sponge, and wood carton. The delivery time is 20-30 days after order confirmed and payment terms include TT, Paypal, Moneygram, and other options. The supply ability is 200 sets per month.
The Thermal Shock Test Chamber is a high-performance testing equipment that is designed to simulate extreme temperature changes on materials and products to test their durability and reliability. The product technical support and services offered for the Thermal Shock Test Chamber include:
Our team of experienced technicians and engineers are dedicated to ensuring that your Thermal Shock Test Chamber operates at peak performance and delivers accurate and reliable results. Contact us for more information on our support and services.
Product Packaging:
The Thermal Shock Test Chamber will be packed securely in a wooden crate with foam padding to ensure safe transport. The crate will be clearly labeled with the product name, model number, and handling instructions.
Shipping:
The Thermal Shock Test Chamber will be shipped via a reliable carrier, such as DHL or FedEx, to ensure timely and safe delivery. Customers will be provided with a tracking number to monitor the status of their shipment.
Q1: What is the brand name of this Thermal Shock Test Chamber?
A1: The brand name of this Thermal Shock Test Chamber is INFINITY.
Q2: What is the model number of this Thermal Shock Test Chamber?
A2: The model number of this Thermal Shock Test Chamber is IE31A1 Series.
Q3: Where is this Thermal Shock Test Chamber made?
A3: This Thermal Shock Test Chamber is made in China.
Q4: What certifications does this Thermal Shock Test Chamber have?
A4: This Thermal Shock Test Chamber has CE and ISO certifications.
Q5: What are the payment terms for this Thermal Shock Test Chamber?
A5: The payment terms for this Thermal Shock Test Chamber are TT, PayPal, MoneyGram, and other negotiable methods.
