| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |

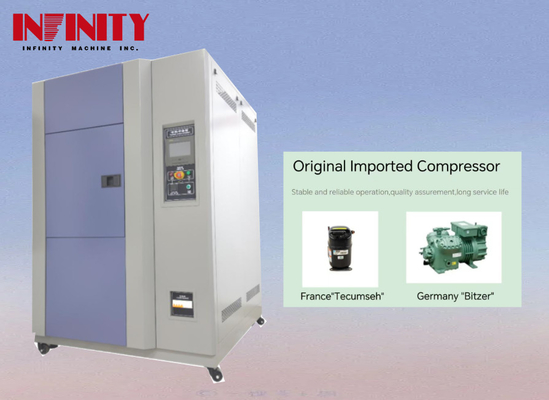

| Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |
|---|---|---|---|
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re | Temperature Fluctuation: | ±1℃ |
| Carton Size: WxHxD(mm ): | 1480×1450 ×1950(or Specify) | Equipment Overview: | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrician, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As |
| Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulati | Application: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur |
The High and Low Temperature Impact Test Chamber, also known as the Thermal Shock Test Chamber, is a high-quality testing equipment designed for various industries such as electrician, electronics, machinery, and others. The equipment can test the whole machine, electrical appliances, instruments, materials, coatings, and coating for the corresponding climate mutation test. It is capable of simulating temperature and humidity changes under the condition of cold and cold impact test, to evaluate the quality of the test products.
The chamber uses Non-fluorine Environmental Protection Refrigerant R404A R23, which complies with environmental protection regulations, and is safe and non-toxic. The equipment is designed to achieve energy-saving and consumption reduction. It uses a gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. The equipment is equipped with a programmed color LCD touch controller reference group PID control, which makes it easy to operate. The experimental data recording and processing mode is flexible, providing a high level of reliability. The key parts are imported parts to ensure the service life and reliability.
The box door of the equipment can be opened alone, and the door frame heating wire prevents condensation at the door frame at low temperature. The temperature fluctuation is ±1℃, making it an efficient and accurate testing equipment. The High and Low Temperature Impact Test Chamber is suitable for testing high and low temperatures and humidity, and simulating temperature and humidity changes under the condition of cold and cold impact test.
| Product Name | Thermal Shock Test Chamber |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Temperature Recovery Time | Within 5 Minutes |
| Application | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J/T10187-91 Y73 Series Temperature Change Test Box- -three-box Type; Meet The Standard IEC68-2-14_Test Method N_Temperature Change. |
| Heating Rate (Heat Storage Area) | Up From RT To + 150℃ About 40 Minutes Is Required (or Specify) |
| Cooling Rate (Cold Storage Area) | Down From RT To -55℃ About 65 Minutes Is Required (or Specify) |
| Safety Protection Device | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection. |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Observation Window | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Source | AC380V;50Hz;18KW (or Specify) |
| Box Door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
The IE31A Series Thermal Shock Test Chamber is made in China and comes with CE and ISO certifications. The minimum order quantity is 1, and the price is negotiable. The packaging details include clear sheet, sponge, and a wood carton. The delivery time is 20-30 days after the order is confirmed, and the payment terms include TT, PayPal, Moneygram, and other options. The supply ability of the IE31A Series Thermal Shock Test Chamber is 200 sets per month.
The IE31A Series Thermal Shock Test Chamber has a temperature recovery time of within 5 minutes and uses non-fluorine environmental protection refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic. The thermal insulation box is made of high-quality carbon steel plate for the outer wall, with the surface for electrostatic color spray plastic treatment. The left side diameter of the chamber is φ50mm hole. The inner wall material is SUS304 # fog surface stainless steel plate, and the thermal insulation material is hard polyurethane foam thermal insulation layer + glass fiber.
The temperature range of the IE31A Series Thermal Shock Test Chamber is -55℃ to +150℃. This Thermal Shock Test Chamber is perfect for testing products that need to withstand high and low temperature impact. Whether you are testing electronic components, aerospace products, or other products, the IE31A Series Thermal Shock Test Chamber is the perfect testing instrument for your needs.
Brand Name: INFINITY
Model Number: IE31A Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets/month
Temperature recovery time: Within 5Minc
Safety protection device: Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection.
Temperature fluctuation: ±1℃
Product Customization Services: High and Low Temperature Impact Test Chamber
Carton size: WxHxD(mm): 1480×1450×1950 (or specify)
Thermal Shock Test Chamber
High and Low Temperature Impact Test Chamber
The Thermal Shock Test Chamber is designed to test the ability of a product to withstand sudden changes in temperature. It is equipped with advanced features such as programmable controllers, touch screen interfaces, and data logging capabilities. Our product technical support team is available to assist with installation, operation, and troubleshooting of the Thermal Shock Test Chamber. In addition, we offer services such as calibration and maintenance to ensure optimal performance of the product. Contact us for more information.
Product Packaging:
The Thermal Shock Test Chamber will be securely packed in a wooden crate to ensure safe transportation. The crate will be lined with foam to provide extra protection during shipping.
Shipping:
The Thermal Shock Test Chamber will be shipped via a reputable courier service. The shipping cost will be calculated based on the destination and weight of the product. The customer will be provided with a tracking number to monitor the status of their shipment.
Q: What is the brand name of the product?
A: The brand name of the product is INFINITY.
Q: What is the model number of the product?
A: The model number of the product is IE31A Series.
Q: Where is the product made?
A: The product is made in China.
Q: What certifications does the product have?
A: The product is certified with CE and ISO.
Q: What is the minimum order quantity for the product?
A: The minimum order quantity for the product is 1.
Q: Is the price of the product negotiable?
A: Yes, the price of the product is negotiable.
Q: What are the packaging details of the product?
A: The packaging details of the product include clear sheet, sponge, and wood carton.
Q: What is the delivery time for the product?
A: The delivery time for the product is 20-30 days after order confirmed.
Q: What are the payment terms for the product?
A: The payment terms for the product include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability of the product?
A: The supply ability of the product is 200 sets per month.
