| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re | Thermal Insulation Box: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulati |
|---|---|---|---|
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Temperature Range: | -55℃ ～ +150℃ | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |
| Application: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur | Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 40m In Is Required(or Specify) |

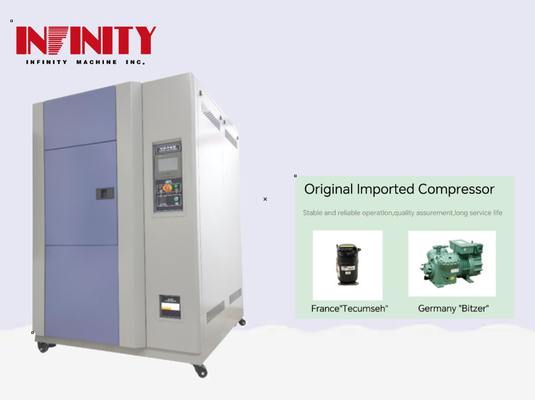

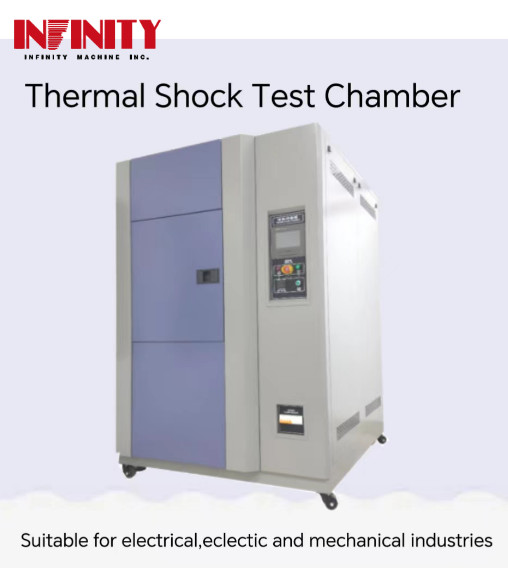

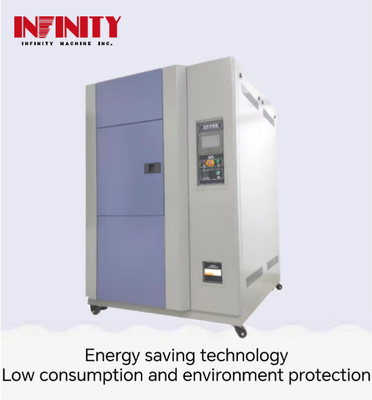

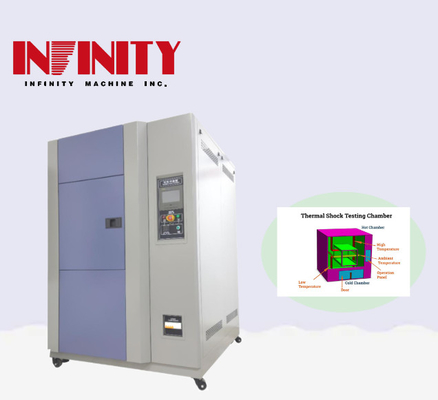

Programmable Temperature Impact Test Chamber -55C ～ 150C 30kg Bearing Weight France Tecumseh Compressor
The Programmable Temperature Impact Test Chamber is equipped with electrical appliances, instruments, and safety protection devices to ensure the safety of the user and the machine during testing. The temperature range of this equipment is -55℃ to +150℃, with a temperature fluctuation of ±1℃. This makes it possible to simulate temperature and humidity changes under the condition of cold and cold impact testing, allowing for the evaluation of the quality of the test products.
The safety protection devices included in the Programmable Temperature Impact Test Chamber are comprehensive, including Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheating Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection.
The box door of the Programmable Temperature Impact Test Chamber is designed for ease of use, allowing for the door to be opened alone. Additionally, the door frame is equipped with a heating wire to prevent condensation at the door frame at low temperatures.
| Product Attribute | Technical Parameter |
| Product Name | Thermal Shock Test Chamber |
| Carton Size (WxHxD mm) | 1480×1450×1950 (or Specify) |
| Thermal Insulation Box | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Application | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box- -three-box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change. |
| Condenser Mode | Air-cooled |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Product Model | IE 31 A Series |
| Observation Window | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Cooling Rate (Cold Storage Area) | Down From RT To-55℃ About 65mi N Is Required(or Specify) |
| Specimen Holder | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
INFINITY IE31A Series Thermal Shock Test Chamber is a reliable and efficient testing equipment designed for various industries. With its Made in China origin and CE ISO certification, this product is guaranteed to meet international standards.
The Thermal Shock Test Chamber is an essential tool for testing the durability and performance of materials and products. It can simulate the extreme conditions that products may encounter during transportation, storage, and usage, allowing manufacturers to identify potential weaknesses and improve their design and production processes.
The IE31A Series can provide a temperature range of -55℃ ～ +150℃, with a temperature fluctuation of ±1℃, which ensures accurate and stable testing results. The cooling rate from the cold storage area is about 65 minutes, while the heating rate from the heat storage area is about 40 minutes, making it an efficient and time-saving testing solution.
The Thermal Shock Test Chamber is suitable for various product application occasions and scenarios. For example, it can be used in the electronics industry to test the performance of components, such as microchips, circuit boards, and connectors, under extreme temperature changes. It can also be used in the automotive industry to test the durability of materials, such as plastics, rubbers, and metals, under thermal shock conditions.
The IE31A Series is a high-quality product with a minimum order quantity of 1. The price is negotiable, and the supply ability is 200 sets per month, ensuring that it can meet customers' different requirements. The packaging details include a clear sheet, sponge, and wood carton, which can protect the product during transportation. The delivery time is 20-30 days after order confirmed, and payment terms include TT, PayPal, Moneygram, and other options.
If you are looking for a reliable and efficient Thermal Shock Test Chamber, the INFINITY IE31A Series is the perfect choice for you. Its high-quality performance, versatile applications, and excellent customer service make it a valuable investment for your business.
Carton size: WxHxD(mm ): 1480×1450 ×1950(or Specify).
Our Thermal Shock Test Chamber is a Programmable Temperature Impact Test Chamber that is designed to meet your specific testing needs. Contact us today to discuss your customization requirements.
The Thermal Shock Test Chamber product is designed to test the ability of a product to withstand sudden changes in temperature. Our technical support team is available to assist with any questions or issues that may arise during the installation and use of the chamber.
Our services include:
Product Packaging:
The Thermal Shock Test Chamber will be securely packed in a wooden crate to ensure safe transportation. All fragile components will be wrapped in protective materials to prevent any damage during shipping.
Product Shipping:
The Thermal Shock Test Chamber will be shipped via a reliable and trusted courier service. The shipping time will depend on the destination, but we will ensure that the product is delivered as quickly as possible. Customers will be provided with a tracking number to keep track of their shipment.
Q: What is the brand name of this product?
A: The brand name of this product is INFINITY.
Q: What is the model number of this product?
A: The model number of this product is IE31A Series.
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product is certified with CE and ISO.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: What are the packaging details for this product?
A: The packaging details for this product include clear sheet+sponge+wood carton.
Q: What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What are the payment terms for this product?
A: The payment terms for this product include TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets/month.
