| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Temperature Recovery Time: | Within 5Minc |
|---|---|---|---|
| Box Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Product Model: | IE 31 A Series |
| Observation Window: | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Cooling Rate (cold Storage Area): | Down From RT To-55℃ About 65mi N Is Required(or Specify) | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |

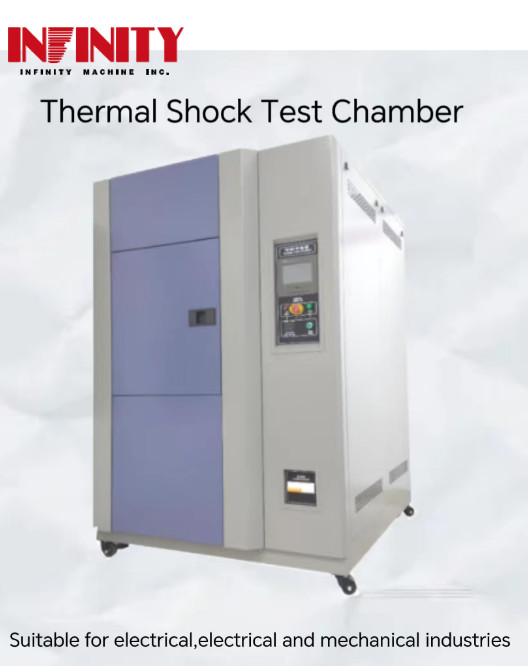

Programmable Temperature Impact Test Chamber for Electrostatic Color Spray Plastic Treatment
This Thermal Shock Test Chamber has advanced safety protection devices that include Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheating Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker, and Leakage Protection. These safety protection devices ensure the safe operation of the equipment and prevent any damage or accidents during the testing process.
With a temperature fluctuation range of ±1℃, the Thermal Shock Test Chamber provides accurate and precise test results. Its temperature recovery time is within 5 minutes, ensuring that the equipment is always ready for the next test.
The carton size of this Thermal Shock Test Chamber is WxHxD(mm): 1480×1450 ×1950 (or Specify), which makes it easy to transport and store.
If you are looking for a reliable and efficient testing equipment for your products, the Thermal Shock Test Chamber is an excellent choice. It is suitable for electrician, electronics, machinery industry, and other industries that require high and low temperature, humidity tests, and simulated temperature and humidity changes.
Introducing our Programmable Temperature Impact Test Chamber, also known as the Thermal Shock Test Chamber. This product has a temperature uniformity of ≦2.0℃ and a cooling rate of about 65mi N is required(or Specify) from RT to -55℃ in the cold storage area. The specimen holder is a stainless steel sample frame with 2 layers, adjustable height, and a bearing weight of 30kg per layer. The source for this product is AC380V;50Hz;18KW(or Specify) and has a temperature fluctuation of ±1℃.
| Product Name | Programmable Cold and Hot Shock Chamber |
| Application | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367.2-87 405 Temperature Shock Test; J/T10187-91Y73 Series Temperature Change Test Box-three-box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change |

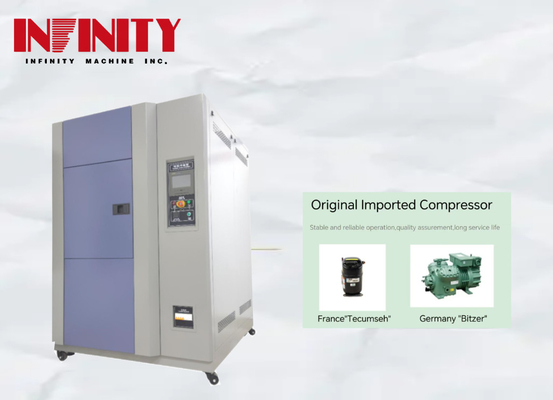

| Refrigeration Compressor | France Tecumseh Fully Closed Compressor (or Specify) |
| Condenser Mode | Air-cooled |
| Temperature Recovery Time | Within 5Minc |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Cooling Rate (Cold Storage Area) | Down From RT To-55℃ About 65mi N Is Required (or Specify) |
| Thermal Insulation Box | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Internal Chamber Size | WxHxD(mm): 500x400x400 (or Specify) |
| Source | AC380V;50Hz;18KW (or Specify) |
The INFINITY IE31A Series Programmable Temperature Impact Test Chamber is a thermal shock test chamber that is made in China and certified by CE and ISO. It is suitable for use in the electrician, electronics, machinery industry, and other products, parts, and materials. It is designed to test the quality of products by simulating temperature and humidity changes under the condition of cold and cold impact test.

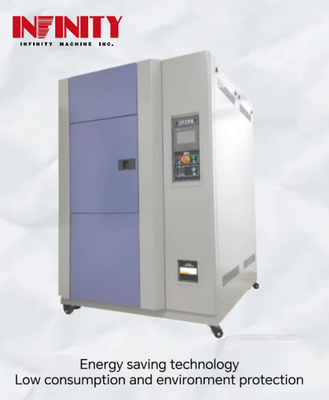

The IE31A Series Thermal Shock Test Chamber is equipped with a gas-liquid bypass mode that adjusts the cooling capacity to achieve constant temperature and humidity, resulting in energy saving and consumption reduction. Its programmed color LCD touch controller reference group PID control makes operation simple and flexible experimental data recording and processing mode. The key parts of the chamber are imported parts, ensuring its high reliability and long service life.
The internal chamber size of the IE31A Series Thermal Shock Test Chamber is customizable and can be specified to meet the user's requirements. Its temperature fluctuation is ±1℃, and its source is AC380V;50Hz;18KW (or specify). The minimum order quantity for this product is 1, and the price is negotiable. The packaging details include clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram and others. The supply ability is 200 sets / month.
The IE31A Series Thermal Shock Test Chamber is suitable for testing products, parts, and materials used in various scenarios such as aerospace, automotive, electrical, electronic, medical, and telecommunications industries. Its ability to simulate temperature and humidity changes makes it useful for testing products in extreme weather conditions or for products that will be used in various environments. It is ideal for testing the quality and reliability of products and ensuring that they meet the required standards.
Introducing the INFINITY IE31A Series Programmable Temperature Impact Test Chamber , proudly MADE IN CHINA and certified with CE and ISO certifications. This test chamber is designed to simulate temperature and humidity changes under cold conditions, making it suitable for use in the electrician, electronics, machinery industry, and other products, parts, and materials.
With a cooling rate of down from RT to -55℃ in about 65 minutes, the IE31A Series is capable of handling high and low temperature, humidity tests, and simulated temperature and humidity changes under cold and cold impact test conditions. It is equipped with a programmable controller that allows users to adjust the temperature, humidity, and other settings to meet their specific testing needs.
The IE31A Series is air-cooled and has a temperature recovery time of within 5 minutes. It operates on a source of AC380V;50Hz;18KW (or specify). The minimum order quantity is 1, and the price is negotiable. Packaging details include clear sheet+sponge+wood carton, and delivery time is 20-30 days after order confirmation. Payment terms accepted include TT, PAYPAL, Moneygram, and others. With a supply ability of 200 sets per month, the IE31A Series is a reliable choice for your testing needs.

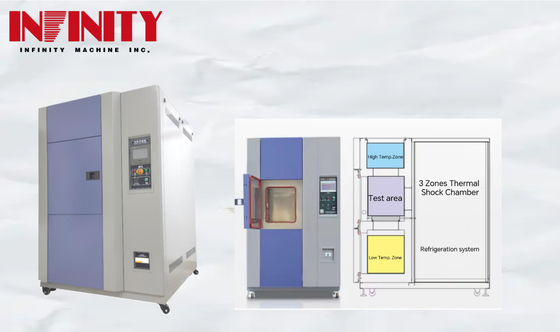

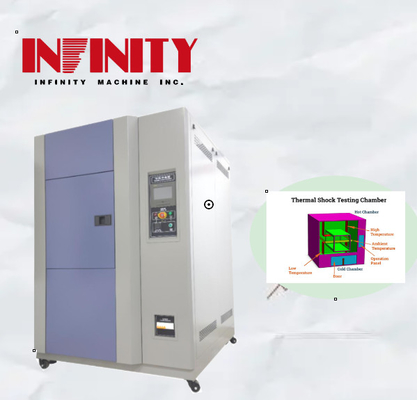

The Thermal Shock Test Chamber is designed to test the ability of materials to withstand sudden changes in temperature. It consists of two chambers that can rapidly and repeatedly cycle between hot and cold temperatures, causing thermal stress to the specimen being tested.
Our product technical support team is available to assist with any questions or issues that may arise during installation, setup, or operation of the Thermal Shock Test Chamber. We also offer a range of services, including maintenance, calibration, and repair, to ensure that your equipment is functioning at its best.
For more information on our product technical support and services, please contact us.
Product Packaging:
Shipping:
Q: What is the brand name of the thermal shock test chamber?
A: The brand name of the thermal shock test chamber is INFINITY.
Q: What is the model number of the thermal shock test chamber?
A: The model number of the thermal shock test chamber is IE31A Series.
Q: What is the place of origin of the thermal shock test chamber?
A: The thermal shock test chamber is made in China.
Q: Does the thermal shock test chamber come with any certifications?
A: Yes, the thermal shock test chamber is CE and ISO certified.
Q: What is the minimum order quantity for the thermal shock test chamber?
A: The minimum order quantity for the thermal shock test chamber is 1.
Q: How is the thermal shock test chamber packaged?
A: The thermal shock test chamber is packaged in clear sheet+sponge+wood carton.
Q: What is the delivery time for the thermal shock test chamber?
A: The delivery time for the thermal shock test chamber is 20-30 days after order confirmed.
Q: What payment terms are accepted for the thermal shock test chamber?
A: Payment terms accepted for the thermal shock test chamber include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability of the thermal shock test chamber?
A: The supply ability of the thermal shock test chamber is 200 sets per month.
Q: Is the price of the thermal shock test chamber negotiable?
A: Yes, the price of the thermal shock test chamber is negotiable.
