| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31A Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 40m In Is Required(or Specify) | Application: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur |
|---|---|---|---|
| Observation Window: | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor(or Specify) |
| Product Name: | Programmable Cold And Hot Shock Chamber | Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Temperature Recovery Time: | Within 5Minc |

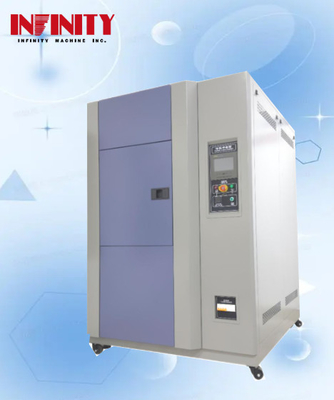

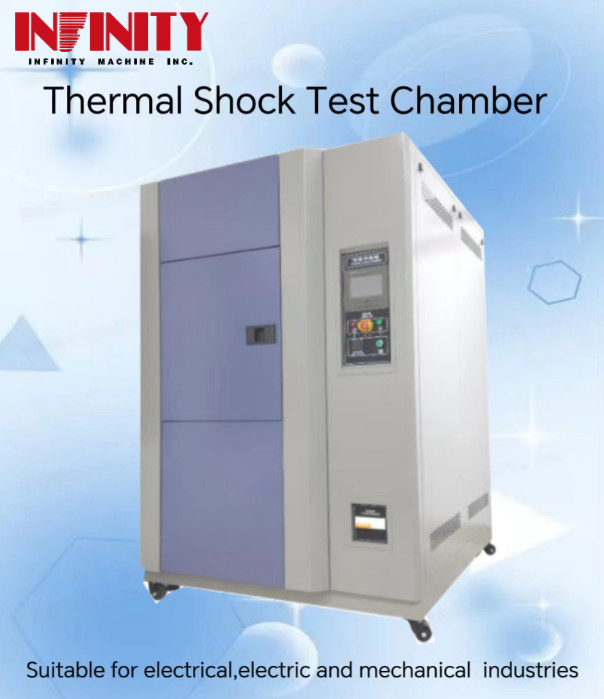

Gas-liquid Bypass Mode Programmable Temperature Impact Test Chamber with Temperature Uniformity of ≦2.0C

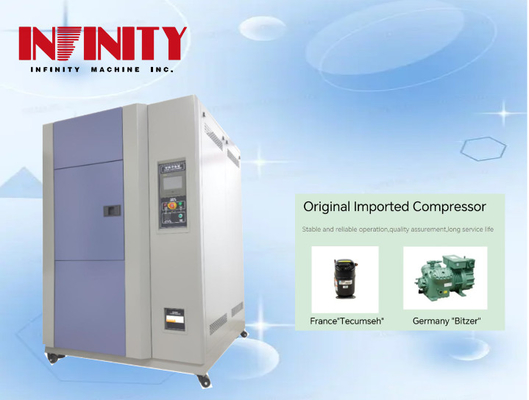

The Thermal Shock Test Chamber's temperature uniformity is ≦2.0℃, which is essential in ensuring accurate and consistent results. The chamber's refrigeration compressor is a France Tecumseh Fully Closed Compressor, which ensures efficient and reliable cooling properties. Customers can also specify a different compressor if they require it.
The box door of the Thermal Shock Test Chamber is designed to be opened alone. It also has a door frame heating wire to prevent condensation at the door frame during low-temperature tests. This feature ensures that the tests are conducted with the utmost accuracy, and the results are reliable.

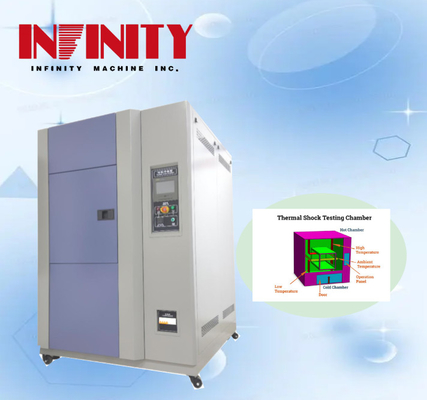

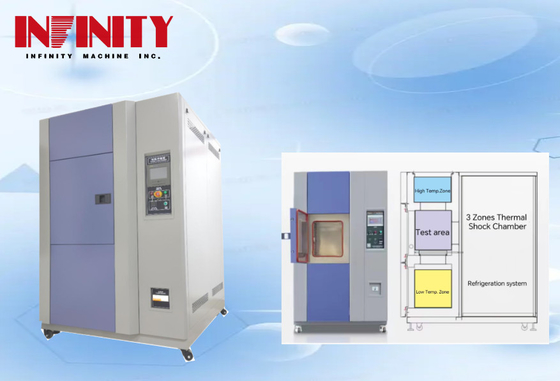

The Thermal Shock Test Chamber has a maximum temperature range of +150℃ to -70℃. It can perform temperature shock tests between high and low temperature areas of up to 3 chambers. It also has a chamber size of 80 liters, which makes it suitable for testing small to medium-sized products.
The Thermal Shock Test Chamber's thermal insulation box has an outer wall material made of high-quality carbon steel plate. The surface is treated with electrostatic color spray plastic, which gives it a sleek and modern look. The left side of the chamber has a diameter of φ 50mm hole. The inner wall material is made of SUS304 # fog surface stainless steel plate, which is highly resistant to corrosion and damage. The thermal insulation material is a hard polyurethane foam thermal insulation layer, which is combined with glass fiber to ensure that the chamber maintains the desired temperature range.
In conclusion, the IE 31 A Series Thermal Shock Test Chamber is an essential tool for testing and evaluating the reliability of products. Its precise temperature control system, efficient refrigeration compressor, and reliable door frame heating wire ensure accurate and consistent results. The chamber's thermal insulation box is designed to maintain the desired temperature range, making it suitable for testing small to medium-sized products.
| Product Name | Programmable Cold and Hot Shock Chamber |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Cooling Rate (cold storage area) | Down From RT To -55℃ About 65min Is Required (or Specify) |
| Box Door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Source | AC380V;50Hz;18KW (or Specify) |
| Carton Size | WxHxD(mm): 1480×1450×1950 (or Specify) |
| Thermal Insulation Box | Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Chamber Is φ 50mm Hole. Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Observation Window | W300*H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature Fluctuation | ±1℃ |
| Temperature Recovery Time | Within 5Min |
The INFINITY IE31A Series Programmable Cold And Hot Shock Chamber is an ideal testing equipment for simulating harsh environmental conditions. With its ±1℃ temperature fluctuation, it can provide consistent and accurate testing results. It is made in China and has CE and ISO certifications, ensuring its quality and reliability.
The Programmable Temperature Impact Test Chamber can be used in various product application occasions and scenarios. It is suitable for testing electronic components, plastic products, metals, rubber, and other materials. It can also be used for testing the durability of products in extreme environments such as aerospace, automotive, and military industries.
The stainless steel sample frame of the Programmable Cold And Hot Shock Chamber has two layers, adjustable height, and can bear a weight of 30kg per layer. This makes it easy to test multiple samples at once. The cooling rate of the cold storage area is about 65mi N, down from room temperature to -55℃, depending on the specifications required.
The temperature range of the Programmable Temperature Impact Test Chamber is -55℃ to +150℃, making it suitable for a wide range of testing scenarios. It can be used to test the impact of extreme temperature changes on product performance and durability. The chamber is programmable, allowing for customized testing procedures and parameters.
The INFINITY IE31A Series Programmable Cold And Hot Shock Chamber has a minimum order quantity of 1, with negotiable pricing and various payment terms such as TT, PayPal, and Moneygram. It has a supply ability of 200 sets per month and comes with clear sheet+sponge+wood carton packaging. Delivery time is 20-30 days after order confirmation.
Our Thermal Shock Test Chamber comes equipped with a number of safety protection devices, including Heater Air Defense Incineration Protection, Heater Over Current Protection, Circulation Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheating Protection, Compressor Over Current Protection, Over Voltage Under Reverse Phase Protection, Circuit Breaker and Leakage Protection. Additionally, the cooling medium used is Non-fluorine Environmental Protection Refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic.
The Internal Chamber Size is WxHxD(mm ): 500x 400x400 (or Specify), and the Temperature Uniformity is ≦2.0℃, making it ideal for any Programmable Temperature Impact Test Chamber needs. The Box Door is designed to Open The Door Alone, and also includes a Door Frame Heating Wire to prevent condensation at the door frame at low temperatures.
The Thermal Shock Test Chamber is a product designed to test the ability of materials to withstand sudden changes in temperature. Our technical support and services for this product include:
Our team of experienced technicians and engineers are dedicated to ensuring the successful operation and longevity of your Thermal Shock Test Chamber.
Product Packaging:
Shipping:
Q: What is the brand name of this Thermal Shock Test Chamber?
A: The brand name of this product is INFINITY.
Q: What is the model number of this Thermal Shock Test Chamber?
A: The model number of this product is IE31A Series.
Q: Where is this Thermal Shock Test Chamber made?
A: This product is made in China.
Q: What certifications does this Thermal Shock Test Chamber have?
A: This product has CE and ISO certifications.
Q: What is the minimum order quantity for this Thermal Shock Test Chamber?
A: The minimum order quantity for this product is 1.
Q: What is the price of this Thermal Shock Test Chamber?
A: The price of this product is negotiable.
Q: What are the packaging details for this Thermal Shock Test Chamber?
A: The packaging details for this product include clear sheet, sponge, and wood carton.
Q: What is the delivery time for this Thermal Shock Test Chamber?
A: The delivery time for this product is 20-30 days after order confirmed.
Q: What are the payment terms for this Thermal Shock Test Chamber?
A: The payment terms for this product include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for this Thermal Shock Test Chamber?
A: The supply ability for this product is 200 sets per month.
