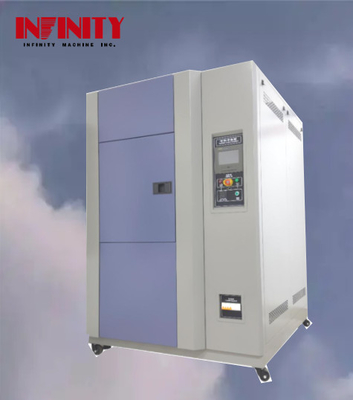

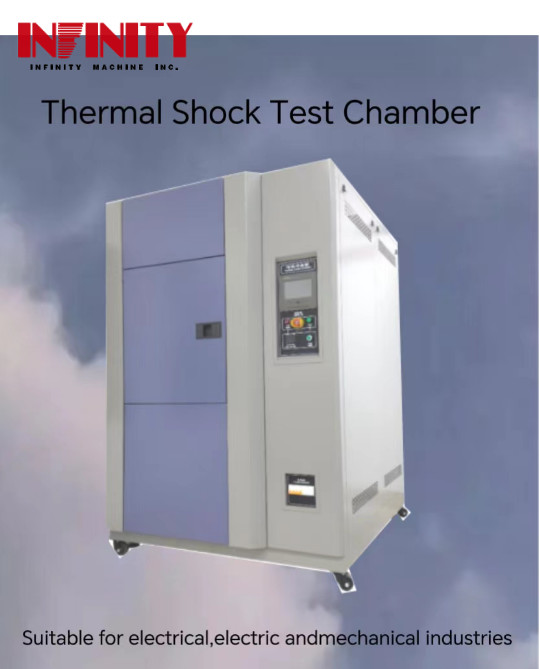

Up From RT To 150C Programmable Temperature Impact Test Chamber 40m Heating Rate Air-Cooled Condenser

Product Description:

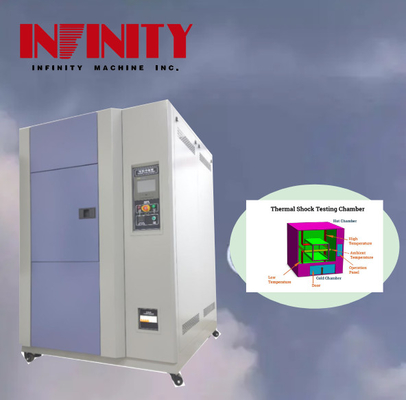

The Thermal Shock Test Chamber boasts a thermal insulation box that is made up of high-quality carbon steel plate with an electrostatic color spray plastic treatment on the surface. The left side diameter of the chamber is φ50mm hole. The inner wall material is made up of SUS304 # fog surface stainless steel plate, while the thermal insulation material consists of hard polyurethane foam thermal insulation layer and glass fiber. These materials ensure that the chamber can withstand extreme temperatures without any damage.

One of the most important features of this chamber is its temperature uniformity. With a temperature uniformity of ≦2.0℃, you can be assured that the temperature inside the chamber is consistent throughout the testing period. This ensures that the test results are accurate and reliable.

The specimen holder is made up of stainless steel sample frame with 2 layers and adjustable height. Each layer can bear a weight of up to 30kg. This allows you to test multiple products at the same time, saving you time and resources.

The carton size of the Thermal Shock Test Chamber is WxHxD(mm): 1480×1450×1950 (or Specify). This makes it easy to transport and install the chamber in your testing facility.

Overall, the Thermal Shock Test Chamber is an essential tool for any company that wants to ensure the reliability and durability of their products. With its advanced features and high-quality materials, you can be assured that your products will withstand extreme environmental conditions and meet the expectations of your customers.

Features:

• Product Name: Thermal Shock Test Chamber
• Product name: Programmable Cold And Hot Shock Chamber
• Internal chamber size: WxHxD(mm ): 500x 400x400(or Specify)
• Equipment overview: For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrician, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulated Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products.
• Heating rate (heat storage area): Up From RT To + 150℃ About 40m In Is Required(or Specify)
• Specimen holder: Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer.

Technical Parameters:

Applications:

The INFINITY IE31A Series Thermal Shock Test Chamber is a programmable temperature impact test chamber that is made in China and certified by CE and ISO. It is designed to test the ability of products to withstand sudden and extreme changes in temperature. The chamber can be used in a variety of applications and scenarios, including:

• Electronics testing: The Thermal Shock Test Chamber is ideal for testing the durability of electronic components and devices. It can simulate the effects of rapid temperature changes on electronics, such as those that occur during transportation or storage.
• Automotive testing: The chamber is also suitable for testing automotive components, such as engine parts, sensors, and electrical systems. It can simulate the extreme temperatures that these components may be exposed to during operation.
• Aerospace testing: The Thermal Shock Test Chamber can also be used to test aerospace components, such as avionics systems, satellite components, and other sensitive equipment that may be exposed to extreme temperature changes during launch or flight.
• Medical device testing: The chamber is ideal for testing medical devices, such as implants and diagnostic equipment. It can simulate the conditions that these devices may be exposed to during use, such as rapid temperature changes in the body.

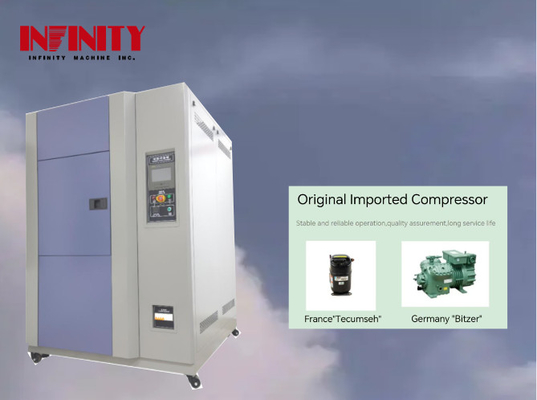

The Thermal Shock Test Chamber has a cooling rate of down from RT to -55℃ in about 65 minutes and uses a France Tecumseh fully closed compressor (or specify). It also features a W300*H400mm observation window that is installed on the box door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. The condenser mode is air-cooled, and the specimen holder is a stainless steel sample frame with 2 layers, adjustable height, and a bearing weight of 30kg per layer.

The minimum order quantity for the Thermal Shock Test Chamber is 1, and the price is negotiable. Packaging details include a clear sheet, sponge, and wood carton, and the delivery time is 20-30 days after order confirmation. Payment terms accepted include TT, PayPal, Moneygram, and others. The Thermal Shock Test Chamber has a supply ability of 200 sets per month.

Customization:

• Brand Name: INFINITY
• Model Number: IE31A Series
• Place of Origin: MADE IN CHINA
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT PAYPAL Moneygram and so on
• Supply Ability: 200 sets / month
• Cooling medium: Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic
• Specimen holder: Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer.
• Carton size: WxHxD(mm ): 1480×1450 ×1950(or Specify)
• Temperature uniformity: ≦2.0℃
• Temperature fluctuation: ±1℃

The Thermal Shock Test Chamber, also known as Programmable Temperature Impact Test Chamber, is a versatile and reliable piece of equipment for testing the durability and resilience of various materials and components. With its advanced features and customizable options, it can meet the specific needs and requirements of different industries and applications.

Support and Services:

Our Thermal Shock Test Chambers are designed to subject products to extreme temperature changes in order to test their durability and reliability. We offer a range of models with varying sizes and capabilities to suit your specific testing needs.

Our technical support team is available to assist with any questions or issues you may encounter with your Thermal Shock Test Chamber. We offer installation and training services to ensure that your equipment is set up correctly and that your staff is properly trained on its use. Additionally, we offer maintenance and repair services to keep your equipment running smoothly and efficiently.

We are committed to providing excellent customer service and support for all of our products, including our Thermal Shock Test Chambers. Please do not hesitate to contact us if you have any questions or concerns.

Packing and Shipping:

Product: Thermal Shock Test Chamber

Package Contents:

• Thermal Shock Test Chamber
• User manual
• Power cord

Packaging: The thermal shock test chamber will be packaged securely in a wooden crate to ensure safe delivery.

Shipping: The product will be shipped via a reliable courier service to the customer's designated address. Shipping fees will be calculated based on the destination and weight of the package.

FAQ:

Q: What is the brand name of this Thermal Shock Test Chamber?

A: The brand name of this Thermal Shock Test Chamber is INFINITY .

Q: What is the model number of this Thermal Shock Test Chamber?

A: The model number of this Thermal Shock Test Chamber is IE31A Series .

Q: Where is this Thermal Shock Test Chamber made?

A: This Thermal Shock Test Chamber is MADE IN CHINA .

Q: What certifications does this Thermal Shock Test Chamber have?

A: This Thermal Shock Test Chamber has CE and ISO certifications.

Q: What is the minimum order quantity for this Thermal Shock Test Chamber?

A: The minimum order quantity for this Thermal Shock Test Chamber is 1 .

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month
