Programmable Hot Cold Shock Test Chamber with Standards GB/T2423.2-2001 Carton Size 1480x1450x1950

Product Description:

The Thermal Shock Test Chamber comes with an observation window that is W300 *H400mm in size. The observation window is installed on the box door and is made of multi-layer insulating electric thermal-coated glass. This glass can effectively provide heat preservation and prevent condensation. This allows for easy monitoring of the testing process and provides the user with greater control over the testing environment.



The source of the Programmable Hot Cold Shock Test Chamber is AC380V;50Hz;18KW (or specify). This ensures that the machine is powerful enough to handle a wide range of products and materials. The cooling rate of the cold storage area is also impressive, with the equipment able to go from RT to -40℃ in about 55 minutes (or specify). This allows for quick and efficient testing of products and materials.

The temperature recovery time of the Thermal Shock Test Chamber is within five minutes. This ensures that the machine can quickly return to the desired temperature after a shock test has been performed. This is crucial for maintaining the accuracy and reliability of the testing process.

In summary, the Programmable Hot Cold Shock Test Chamber is an essential tool for anyone in the electrical, electronics, machinery industry, and other similar fields. It provides the ability to perform a wide range of tests, including high and low-temperature tests, humidity tests, and cold impact tests. The machine is powerful enough to handle a variety of products and materials, and the observation window allows for easy monitoring of the testing process. The Programmable Hot Cold Shock Test Chamber is a must-have for anyone looking to ensure the quality and reliability of their products and materials.



Features:

• Product Name: Thermal Shock Test Chamber
• Temperature recovery time: Within 5 Mint
• Temperature uniformity: ≦2.0℃
• Temperature fluctuation: ±1℃
• Heating rate (heat storage area): Up From RT To + 150℃ About 35min Is Required(or Specify)
• Condenser mode: Air-cooled(or Specify)



Technical Parameters:

Product Name	Thermal Shock Test Chamber
Source	AC380V;50Hz;18KW (or Specify)
Specimen Holder	Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer.
Features	Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability.
Observation Window	W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Thermal Insulation Chamber	● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber.
Temperature Recovery Time	Within 5 Min
Temperature Fluctuation	±1℃
Condenser Mode	Air-cooled (or Specify)

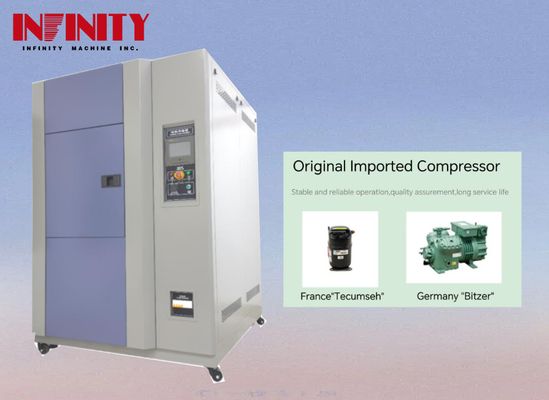

Refrigeration Compressor	France Tecumseh Fully Closed Compressor (or Specify)
Chamber Door	Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature.



Applications:

INFINITY IE31 Series Thermal Shock Test Chamber is an essential testing equipment used in various industries. This product is made in China and certified with CE and ISO. It is designed to simulate the harsh environments that certain products may encounter during transportation, storage, and other applications. The Thermal Shock Test Chamber is widely used in the electronics, automotive, aerospace, and defense industries.



The IE31 Series is a high-quality product that meets the standards of GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, J/T10187-91Y73 Series Temperature Change Test Box-three Box Type, and meets the standard IEC68-2-14_Test Method N_Temperature Change.



The Thermal Shock Test Chamber is designed with an air-cooled condenser mode and uses non-fluorine environmental protection refrigerants, R404A, and R23, which comply with environmental protection regulations and are safe and non-toxic. It has a wide temperature range of -40℃ to +150℃ with a temperature uniformity of ≦2.0℃.



The Thermal Shock Test Chamber is an ideal equipment for testing the durability and reliability of various products. It is used to evaluate the performance of products under extreme temperature conditions, such as sudden changes in temperature, rapid temperature cycling, and thermal shock.



The IE31 Series Thermal Shock Test Chamber can be used in various scenarios such as testing electronic components, semiconductor devices, automotive parts, aerospace equipment, and defense equipment. It is suitable for testing the impact of temperature changes on products and determining their lifespan and performance under extreme conditions.



The Thermal Shock Test Chamber has a minimum order quantity of 1, and the price is negotiable. It comes with clear sheet+sponge+wood carton packaging and has a delivery time of 20-30 days after order confirmation. Payment terms include TT, PayPal, Moneygram, and other options. The Thermal Shock Test Chamber has a supply ability of 200 sets per month.

Customization:

Thermal Shock Test Chamber ? Look no further than our INFINITY IE31 Series ! Our product is MADE IN CHINA and is certified with CE and ISO . With a minimum order quantity of 1 and negotiable prices , we offer packaging details including clear sheet, sponge, and wood carton. Our delivery time is 20-30 days after order confirmed and we offer payment terms such as TT, PAYPAL, Moneygram, and more. Our supply ability is 200 sets/month and our internal box size is WxHxD(mm): 500x400x400 (or specify) . Our cooling medium is non-fluorine environmental protection refrigerant R404A R23 which complies with environmental protection regulations and is safe and non-toxic.

Our Thermal Shock Test Chamber comes with a variety of features, such as:

• Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity.
• Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible.
• High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability.

Our Programmable Hot Cold Shock Test Chamber has a cooling rate (cold storage area) of down from RT to-40℃ in about 55min (or specify). The thermal insulation chamber includes an outer wall material made of high quality carbon steel plate with electrostatic color spray plastic treatment and the left side diameter of the box is φ 50mm hole. The inner wall material is SUS304 # fog surface stainless steel plate and the thermal insulation material is hard polyurethane foam thermal insulation layer + glass fiber.



Support and Services:

The Thermal Shock Test Chamber is designed to subject specimens to rapid temperature changes to test their ability to withstand thermal shock. Our product technical support and services include:

• Installation and commissioning of the test chamber
• Training on how to operate and maintain the test chamber
• Calibration services to ensure accurate temperature control
• Repair and maintenance services to keep the test chamber in optimal working condition
• Customization options to meet specific testing requirements

Our team of experienced technicians is dedicated to providing reliable and efficient support to ensure that your thermal shock testing needs are met.



Packing and Shipping:

Product Packaging:

The Thermal Shock Test Chamber will be packaged in a sturdy wooden crate to ensure that it is protected during transport. The crate will be labeled with relevant product information and handling instructions.

Shipping:

The Thermal Shock Test Chamber will be shipped via a trusted and reliable shipping company to ensure prompt delivery. The shipping cost will be calculated based on the destination and weight of the crate. Customers will be provided with a tracking number to monitor the status of their shipment.



FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is INFINITY.

Q2: What is the model number of this product?

A2: The model number of this product is IE31 Series.

Q3: Where is this product made?

A3: This product is made in China.

Q4: What certifications does this product have?

A4: This product has CE and ISO certifications.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 1.

Q6: What is the price of this product?

A6: The price of this product is negotiable.

Q7: How is this product packaged?

A7: This product is packaged with clear sheet+sponge+wood carton.

Q8: What is the delivery time for this product?

A8: The delivery time for this product is 20-30 days after order confirmed.

Q9: What payment terms are accepted for this product?

A9: TT, PAYPAL, Moneygram, and other payment terms are accepted for this product.

Q10: What is the supply ability of this product?

A10: The supply ability of this product is 200 sets per month.
