| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Thermal Insulation Chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Ma | Temperature Range: | -40℃ ～ +150℃ |
|---|---|---|---|
| Chamber Door: | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. | Condenser Mode: | Air-cooled(or Specify) |
| Temperature Fluctuation: | ±1℃ | Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 35min Is Required(or Specify) |
| Carton Size: WxHxD(mm): | 1480×1450 ×1950(or Specify) | Temperature Uniformity: | ≦2.0℃ |

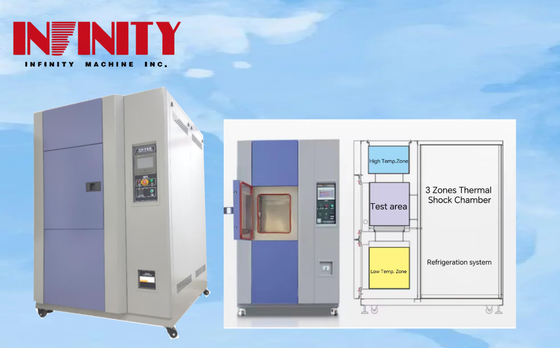

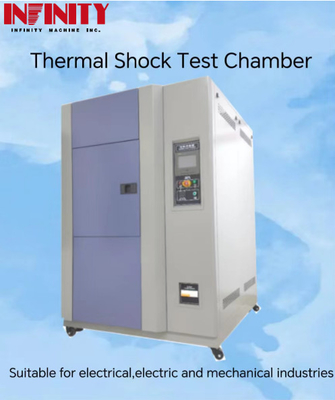

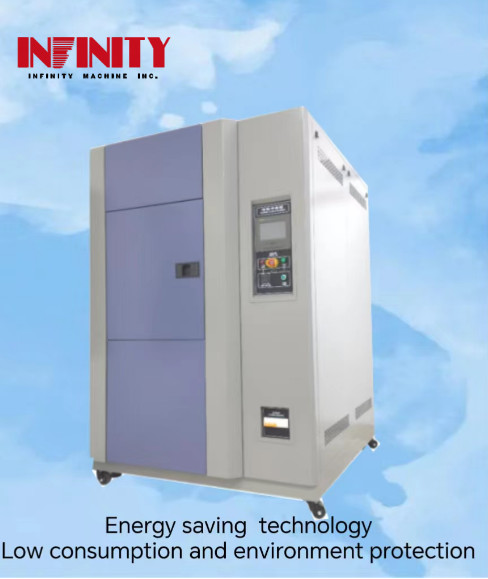

Multi-layer Insulating Electric Thermal Coated Glass Programmable Hot Cold Shock Test Chamber

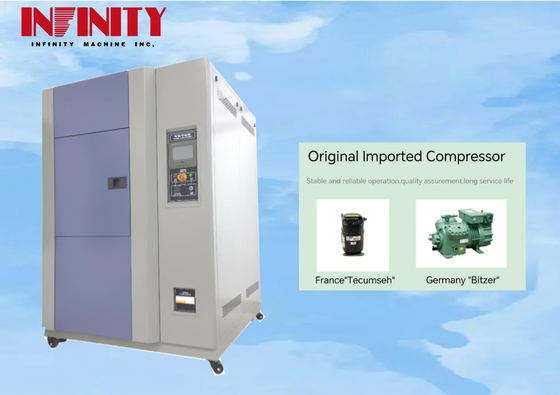

It is equipped with a refrigeration compressor that is fully closed and imported from France Tecumseh. The energy-saving and consumption reduction feature of the product is achieved through the use of a gas-liquid bypass mode to adjust the cooling capacity and achieve constant temperature and humidity. The product is also easy to operate, thanks to the programmed color LCD touch controller that uses a reference group PID control. The experimental data recording and processing mode is flexible, making it easy to use.
The Programmable Hot Cold Shock Test Chamber is designed for high reliability, with key parts being imported to ensure a long service life and reliability. The safety protection device includes heater air defense incineration protection, heater over current protection, circulation fan over current overload protection, compressor high pressure protection, compressor overheating protection, compressor over current protection, over voltage under reverse phase protection, circuit breaker and leakage protection. These features make the product safe to use and protect against any risks that may arise during testing.
The source of the product is AC380V;50Hz;18KW, although this can be specified according to user needs. The product is suitable for testing the whole machine or parts, electrical appliances, instruments, materials, coating, coating for the corresponding climate mutation test, and it can carry out high and low temperature, humidity test. The Programmable Hot Cold Shock Test Chamber is a thermal shock test chamber that can simulate the temperature and humidity changes under the condition of cold and cold impact test. This makes it an effective tool for evaluating the quality of the test products.
| Cooling medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Observation window | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Temperature fluctuation | ±1℃ |
| Internal box size | WxHxD(mm): 500x400x400(or Specify) |
| Temperature range | -40℃ ～ +150℃ |
| Equipment overview | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change. |
| Product name | Programmable Hot Cold Shock Test Chamber |
| Source | Source AC380V;50Hz;18KW(or Specify) |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |

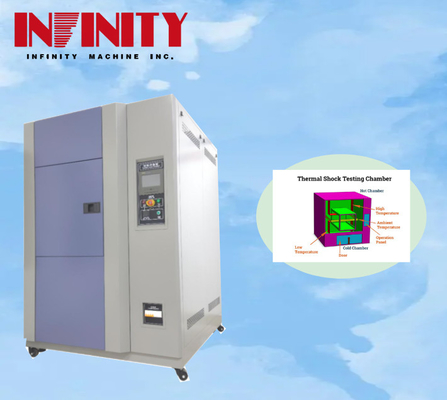

The Thermal Shock Test Chamber has a thermal insulation chamber with a high-quality carbon steel plate as the outer wall material and the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole. The inner wall material is SUS304 # fog surface stainless steel plate. The thermal insulation material is hard polyurethane foam thermal insulation layer + glass fiber. The internal box size is WxHxD(mm): 500x400x400 or specify. The temperature range is between -40℃ to +150℃. The product name is a Programmed Cold and Hot Impact Test Chamber.
The Thermal Shock Test Chamber is suitable for various product application occasions and scenarios. Electronic components, automotive parts, plastic materials, and other materials can be tested with this chamber. The chamber is suitable for testing the quality of the materials, ensuring that they can withstand sudden changes in temperature. The product is suitable for use in research laboratories, quality control departments, and production lines.
The Thermal Shock Test Chamber comes with a stainless steel sample frame with two layers, adjustable height, and bearing weight of 30kg/layer. This feature ensures that the samples are safe during the testing process. The Thermal Shock Test Chamber is an essential product for industries that require testing materials' ability to withstand sudden changes in temperature.
The Thermal Shock Test Chamber is a high-quality product that is designed to test the ability of materials to withstand sudden changes in temperature. It is equipped with advanced features such as rapid temperature cycling, temperature control, and automatic data logging. The product technical support and services offered for this product include:
Our team of experienced technicians is dedicated to providing prompt and reliable support to ensure that your Thermal Shock Test Chamber performs at its best. We are committed to your satisfaction and will work with you to address any issues or concerns you may have.
Product Packaging:
The Thermal Shock Test Chamber will be securely packaged in a sturdy wooden crate to prevent any damage during transportation. The chamber will be wrapped in protective foam and the crate will be sealed to ensure that the product arrives in perfect condition.
Shipping:
Our company offers worldwide shipping through trusted and reliable carriers. The shipping cost will be calculated based on the destination and the weight of the product. Once the order is placed, we will provide you with a tracking number so you can track the delivery status of your Thermal Shock Test Chamber.
Frequently Asked Questions about INFINITY IE31 Series Thermal Shock Test Chamber:
Q: What is the place of origin of the IE31 Series Thermal Shock Test Chamber?
A: The IE31 Series Thermal Shock Test Chamber is made in China.
Q: What certifications does the IE31 Series Thermal Shock Test Chamber have?
A: The IE31 Series Thermal Shock Test Chamber is CE and ISO certified.
Q: What is the minimum order quantity for the IE31 Series Thermal Shock Test Chamber?
A: The minimum order quantity for the IE31 Series Thermal Shock Test Chamber is 1 set.
Q: What is the packaging method for the IE31 Series Thermal Shock Test Chamber?
A: The IE31 Series Thermal Shock Test Chamber is packaged with a clear sheet, sponge, and wood carton.
Q: What are the payment terms for purchasing an IE31 Series Thermal Shock Test Chamber?
A: The payment terms for purchasing an IE31 Series Thermal Shock Test Chamber include TT, PayPal, Moneygram, and other negotiable methods.
Q: What is the supply ability of the IE31 Series Thermal Shock Test Chamber?
A: The supply ability of the IE31 Series Thermal Shock Test Chamber is 200 sets per month.
