| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Condenser Mode: | Air-cooled(or Specify) | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. | Features:: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recordin |
| Source: | Source AC380V;50Hz;18KW(or Specify) | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re |
| Temperature Fluctuation: | ±1℃ | Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
Temperature Uniformity ≦2.0C Programmable Hot Cold Shock Test Chamber with Observation Window

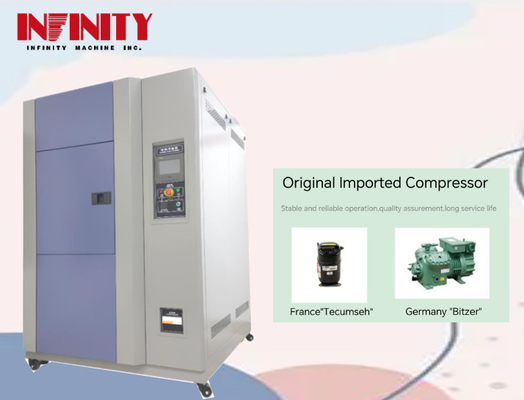

The Thermal Shock Test Chamber is equipped with a top-of-the-line refrigeration compressor from France Tecumseh. This Fully Closed Compressor is a highly efficient and reliable component that ensures the stability and accuracy of the temperature control system. The Cooling medium used in this Thermal Shock Test Chamber is Non-fluorine Environmental Protection Refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic.
The Condenser mode used in this Thermal Shock Test Chamber is Air-cooled, which ensures effective cooling and stable performance. The Observation window is a W300 *H400mm Observation Window Installed On The Box Door. The multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
The Source used in this Thermal Shock Test Chamber is Source AC380V;50Hz;18KW, which ensures stable and reliable power supply for the equipment. This Programmable Hot Cold Shock Test Chamber is highly customizable and can be configured to meet the specific testing requirements of different products and materials.
The Thermal Shock Test Chamber is designed to simulate extreme temperature changes that a product or material can experience during transportation, storage, and usage. The equipment can conduct rapid and accurate temperature cycling tests with a maximum temperature fluctuation of ±5℃. The Thermal Shock Test Chamber can simulate a temperature range of -70℃ to +150℃, making it suitable for testing products and materials used in various industries, including electronics, automotive, aerospace, and more.
The Thermal Shock Test Chamber is equipped with a user-friendly control system that allows for easy operation and programming. The equipment is designed to comply with international testing standards and regulations, ensuring accurate and reliable test results. With its advanced features and reliable performance, the Thermal Shock Test Chamber is an essential tool for manufacturers, research facilities, and quality control teams in ensuring the durability and performance of their products.
| Product Name: | Programmable Cold And Hot Impact Test Chamber |
| Source: | AC380V;50Hz;18KW(or Specify) |
| Specimen Holder: | Stainless Steel Sample Frame 2 Layers, Adjustable Height, Bearing Weight Of 30kg / Layer. |
| Temperature Recovery Time: | Within 5 Minutes |
| Heating Rate: | Up From RT To + 150℃ About 35min Is Required (or Specify) |
| Condenser Mode: | Air-cooled (or Specify) |
| Temperature Uniformity: | ≦2.0℃ |
| Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Thermal Insulation Chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection. |
INFINITY IE31 Series Programmable Hot Cold Shock Test Chamber is a high-quality product made in China with CE and ISO certification.
This product is designed to test the ability of materials to withstand rapid changes in temperature. The chamber door is designed to open alone and has a door frame heating wire to prevent condensation at low temperatures.
The cooling medium used in this chamber is non-fluorine environmental protection refrigerants R404A and R23, which comply with environmental protection regulations and are safe and non-toxic.
The temperature fluctuation of this chamber is ±1℃, making it highly accurate and reliable. It meets various standards such as GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367.2-87 405 Temperature Shock Test, and J/T10187-91 Y73 Series Temperature Change Test Box-three Box Type. It also meets the standard IEC68-2-14_ Test Method N_ Temperature Change.
The INFINITY IE31 Series Programmable Hot Cold Shock Test Chamber is suitable for use in various industries such as electronics, aerospace, transportation, and more. It is ideal for testing the reliability and durability of materials and products in extreme temperature conditions.
The minimum order quantity for this product is 1, and the price is negotiable depending on the quantity ordered. The packaging details include clear sheet, sponge, and wood carton for safe transportation. The delivery time is between 20-30 days after order confirmation.
The payment terms for this product are TT, PayPal, Moneygram, and other options. The supply ability is 200 sets per month, ensuring a steady supply of this high-quality product.
Our Thermal Shock Test Chamber product comes with comprehensive technical support and services. Our team of experts are available to provide guidance on installation, operation, maintenance, and troubleshooting of the product. We also offer calibration and validation services to ensure the accuracy and reliability of the test results.
In addition, we provide training programs to equip our customers with the knowledge and skills needed to operate the thermal shock test chamber effectively. We also offer customization services to meet specific testing needs and requirements.
Our goal is to provide our customers with complete satisfaction and ensure that they get the most out of our thermal shock test chamber product.
Product Packaging:
The Thermal Shock Test Chamber will be securely packaged in a wooden crate to prevent any damage during transport. The product will be wrapped in protective material to ensure that it remains stable and safe from any external shocks or vibrations.
Shipping:
The product will be shipped via air or sea freight, depending on the customer's preference and location. Our team will ensure that the product is loaded and secured properly before shipping to prevent any damage during transit. Customers will be provided with a tracking number so that they can monitor the progress of their shipment.
What is the brand name of the Thermal Shock Test Chamber?
The brand name of the Thermal Shock Test Chamber is INFINITY.
2.What is the model number of the Thermal Shock Test Chamber?
The model number of the Thermal Shock Test Chamber is IE31 Series.
3.Where is the Thermal Shock Test Chamber made?
The Thermal Shock Test Chamber is made in China.
4.What certifications does the Thermal Shock Test Chamber have?
The Thermal Shock Test Chamber has CE and ISO certifications.
5.What are the payment terms for the Thermal Shock Test Chamber?
The payment terms for the Thermal Shock Test Chamber are TT, PayPal, Moneygram and other negotiable methods.
