Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable

Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable

  • Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
  • Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
  • Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
  • Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
  • Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
Automotive Cables Flexing Fatigue Tester for Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus for Cyclic Bending Multi-conductor Cable
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Automotive Cables Flexing Fatigue Tester For Automobile Cable Fatigue Testing ISO 19642-2 Test Apparatus For Cyclic Bending Multi-conductor Cable Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

Automotive Cable Flexing Fatigue Tester

,

ISO 19642-2 Cyclic Bending Apparatus

,

Multi-conductor Cable Bending Machine

Model: C5092
Automotive Cable Cyclic Bending Tester — Overview

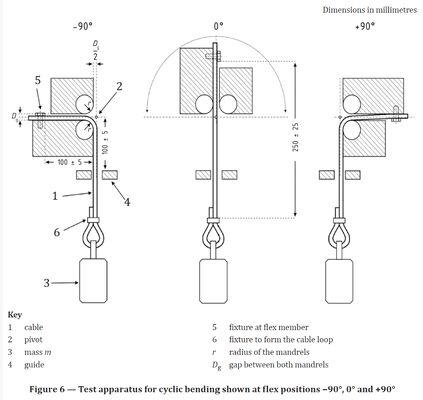

The C5092 automotive cables flexing fatigue tester is engineered for cyclic bending testing of multi-wire cables, communication cables, earphone cables, and similar flexible conductors. The test method short-circuits one end of the cable, fixes that end to the rotation plate, applies calibrated weights to the cable, and performs left-and-right rotation cycles. Cable conductivity is then evaluated after the specified number of rotation cycles to assess overall cable quality and flexing durability.

Compliant Test Standards
  • ISO 19642-2 Road vehicles — Automotive cables — Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2-2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

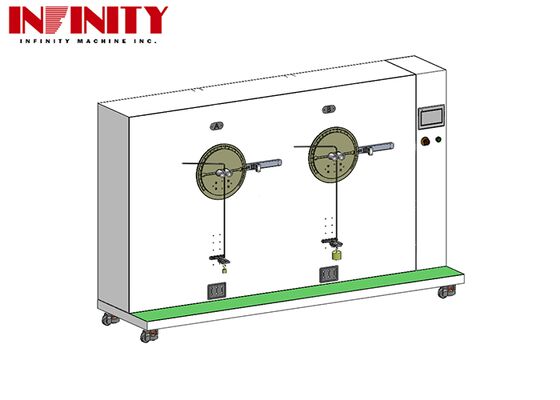

C5092 Wires Bending Test Machine — Overview Diagram
Overview diagram of the C5092 automotive cable cyclic bending test machine showing the rotation plate, guide wheels, and weight assembly
C5092 Wires Bending Test Machine — overview diagram
Technical Specifications
ModelC5092
Test Amount2 PCS
Test Speed10–60 rpm ±2 cpm (frequent user setting: 13 rpm)
Angle Range90°
Min Display Angle±1°
Testing Cycles1–999,999 times
Guide Wheel RadiusR13, R19, R25, R37, R55, R69, R82, R107 (changeable), 4 sets
Diameter of Rotation Plate275 mm
Weights100 g, 200 g, 500 g, 1000 g (each 2 pcs)
Dimensions (W×D×H)1280 × 724 × 1320 mm
Weight350 kg
Power SupplySingle phase AC220V / AC120V 50/60Hz 5A, or specified by user
Product Appearance

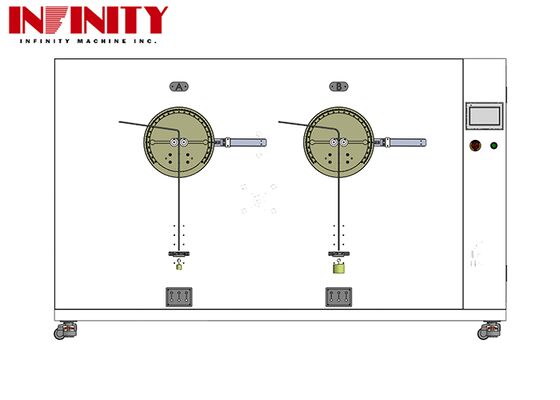

Front view of the C5092 cable bending test machine showing the control panel and rotation plate
Front view of the C5092 cable bending test machine

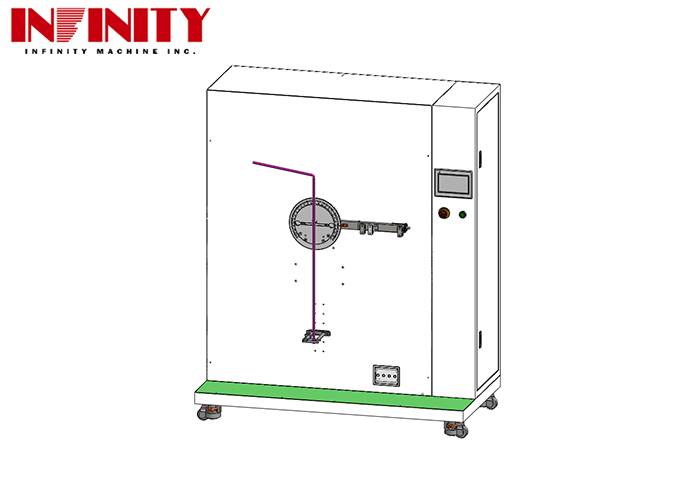

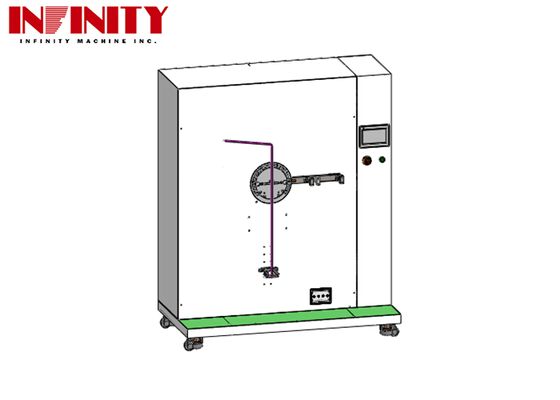

Side view of the C5092 cable bending test machine showing the guide wheel assembly and weight hanger
Side view of the C5092 cable bending test machine
Packaging and Shipping
Product Packaging

Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent damage during transportation. The exterior of each crate is clearly labeled with shipping marks for easy identification.

Shipping Process

All automotive cables cyclic bending test machines are shipped through reliable and experienced shipping companies. Transportation is carefully arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status throughout the delivery process.
