Wire Torsion Tester Cable Bending Test Machine

Wire Torsion Tester Cable Bending Test Machine

  • Wire Torsion Tester Cable Bending Test Machine
  • Wire Torsion Tester Cable Bending Test Machine
  • Wire Torsion Tester Cable Bending Test Machine
  • Wire Torsion Tester Cable Bending Test Machine
  • Wire Torsion Tester Cable Bending Test Machine
Wire Torsion Tester Cable Bending Test Machine
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: IC2274
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35~45 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Robot Cable Torsion Test Machine Model: IC2274
Application: Automatic Cable Torsion Testing Machine Is Suitable For The Torsion Test Of Multi-core Cables And Communication Cables. Standards: Complies With Standards Such As Those Of The China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables For Industrial Robots — Part 2: Test Methods.
Working Station: 4 Orsion Angle: 1~±180° /±270° / ±360° (Customizable)
Test Speed: 1~30 Cycles/min (Adjustable) Power: AC220V Or AC120V
Warranty: 1 Year
Highlight:

wire torsion tester machine

,

cable bending test equipment

,

torsion tester with warranty

Wire Torsion Tester Cable Bending Test Machine
Test Standard
Model: IC2274
Complies with standards such as those of the China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Test Methods.
Application
Cable torsion testing machine is suitable for the torsion test of multi-core cables and communication cables. It is mainly used for the repeated torsion test of metal wires after longitudinal installation, so as to detect the plastic deformation resistance performance and exposed defects of metal wires during the repeated torsion test.
Technical Specifications

Item

Specification

Test Station

4 stations  (Customizable)

Sample Diameter

3~15mm  (Customizable)

Specimen Test Length

500~1000mm  (Customizable)

Sample Torsion Speed

1~30 cycles/min (Adjustable)

Torsion Angle

1~±180° /±270° / ±360°  (Customizable)

Control Method

Touch screen control

Counting Digits

0-99999999 cycles

Motor

Servo motor (Japan)

Machine Weight

Approx. 400 Kg

Working Power Supply

AC220V, 50Hz ; AC120V, 60Hz (specifiable)

Equipment Power

1.8KW

Equipment Dimensions

W1700*D740*H1700mm

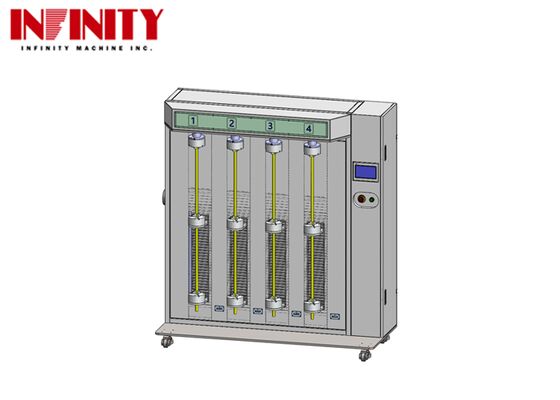

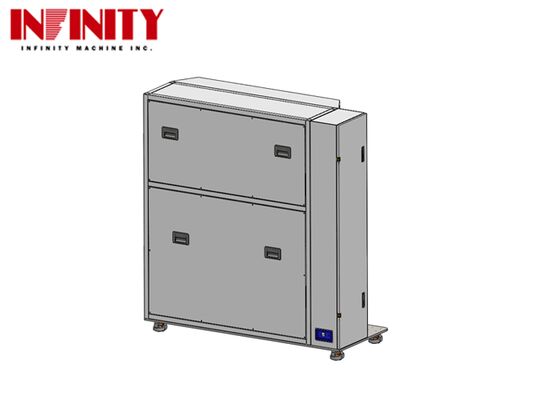

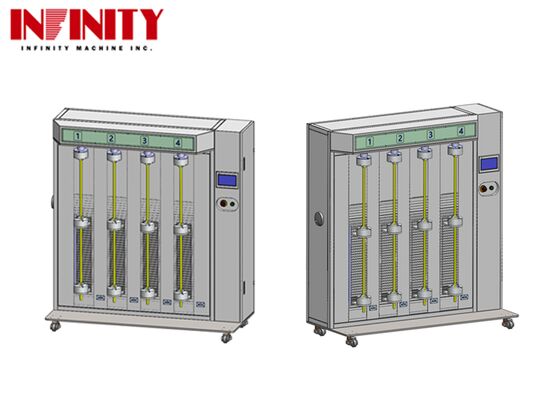

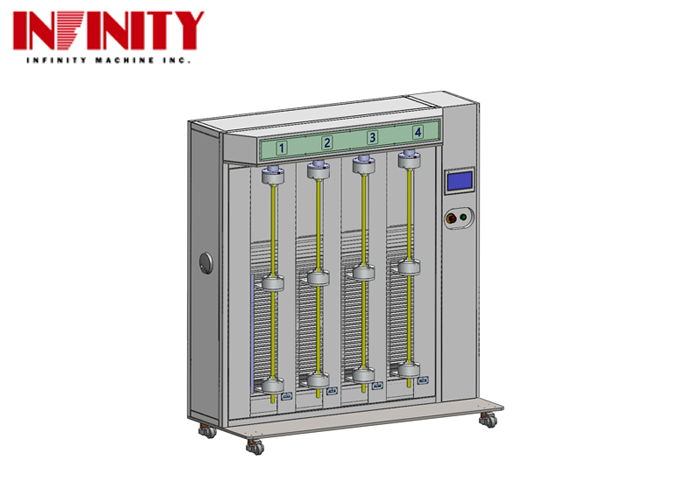

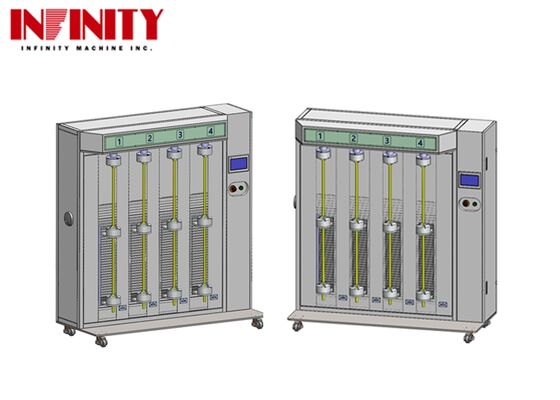

Product Appearance

Wire Torsion Tester Cable Bending Test Machine 0

Wire Torsion Tester Cable Bending Test Machine 1

Packaging and Shipping
Product Packaging: Robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
