Name: Cable Flexing Test Apparatus with Adjustable Bending Angle 1~180° 6 Sets Jig Complies with IEC 60884-1 Standard
Brand: Infinity Machine International Inc.
SKU: IC2186
Price: 50,050.00 USD
Availability: InStock

Home Products Bending Test Machine

Cable Flexing Test Apparatus with Adjustable Bending Angle 1~180° 6 Sets Jig Complies with IEC 60884-1 Standard

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	IC2186

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35~45 days after order confirmed
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Cables Flexing Test Apparatus For Testing Flexiable Cable	Model:	IC2186
Application:	Apply For Bending Endurance Test For Cable Connected With Plug.	Standards:	GB2099-2008、IEC 60884-1:2022
Jig:	6 Sets	Bending Angle:	1~180° (±90°) (Adjustable)
Bending Speed:	10~60c.p.m (Adjustable)	Load:	50, 100, 200, 300, 500g (6 Per Each)
Power:	AC220V Or AC120V	Warranty:	1 Year

Cables Flexing Test Apparatus

This flexible cable flexing test equipment features adjustable bending angles from 1° to 180° and complies with IEC 60884-1 standards. Designed for bending endurance testing of cables connected with plugs, this machine evaluates cable durability by simulating real-world bending conditions.

Product Overview

Model: IC2186

The IEC 60884-1:2022 flexible cable flexing test machine is engineered for comprehensive bending endurance testing of cables connected with plugs, providing reliable performance and accurate results.

Application

This testing machine performs bending endurance tests for cables connected with plugs. The sample is securely fixed on the jig with appropriate weights applied to the cable. The jig then swings right and left at the preset angle. After completing the required rotation cycles, the test automatically stops for cable inspection. For electrified cable testing, the machine counts rotation cycles until cable failure and automatically stops when the cable breaks and disconnects from electricity.

Technical Specifications

Specification	Details
Model	IC2186
Standards	GB2099-2008, IEC 60884-1:2022
Jig	6 sets
Bending Angle	1~180° (±90°) Adjustable
Bending Speed	10~60 c.p.m Adjustable
Counter	6 individual counters
Load	50, 100, 200, 300, 500g (6 per each)
Weight	132kg
Dimension (WDH)	960530850mm
Power Supply	AC220V 3A or specified by user

Product Appearance

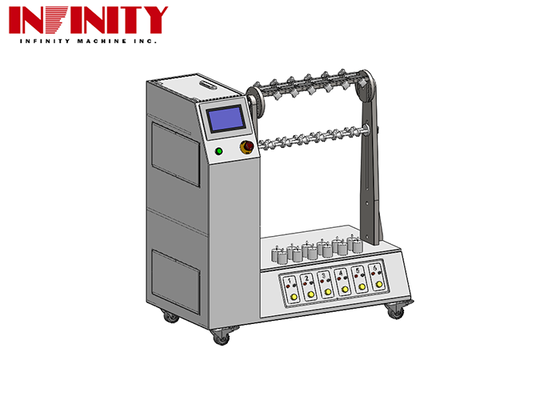

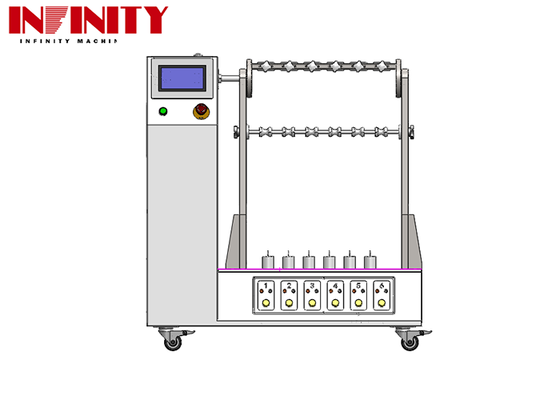

Flexible Cable Bending Test Apparatus - Front View

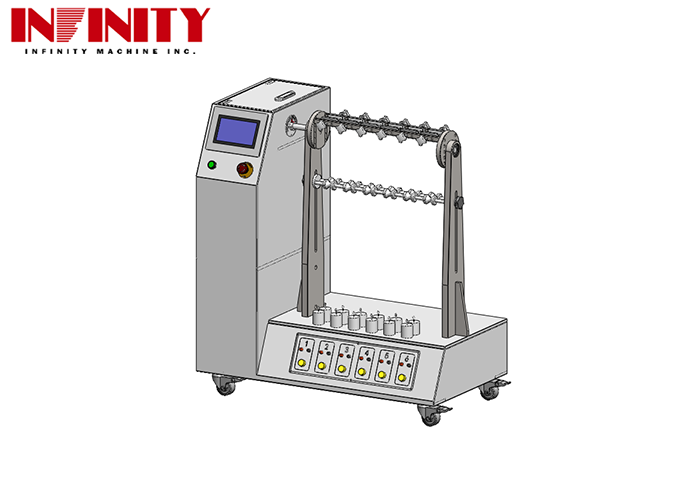

Cable Flexing Test Apparatus - Side View

Packaging and Shipping

Product Packaging: The flexible cable flexing test machine is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.

Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.

Tag:

bend test equipment,

flex tester machines,

cable testing machine
