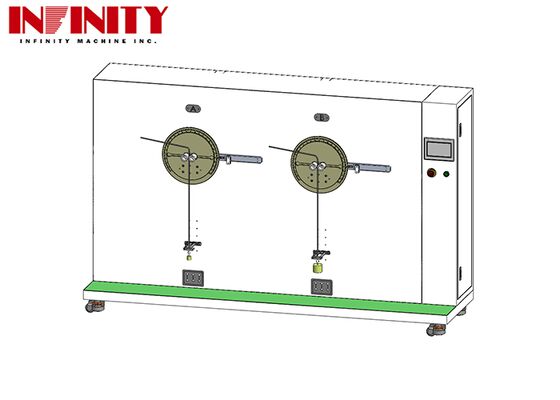

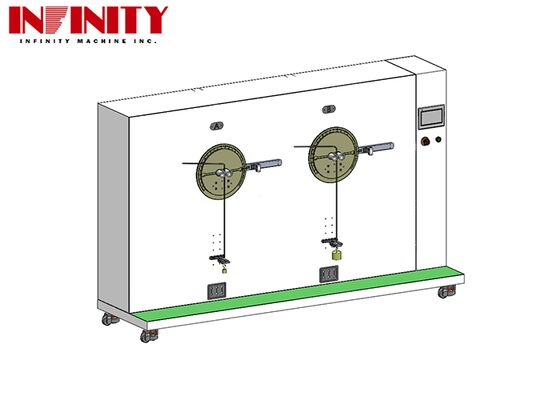

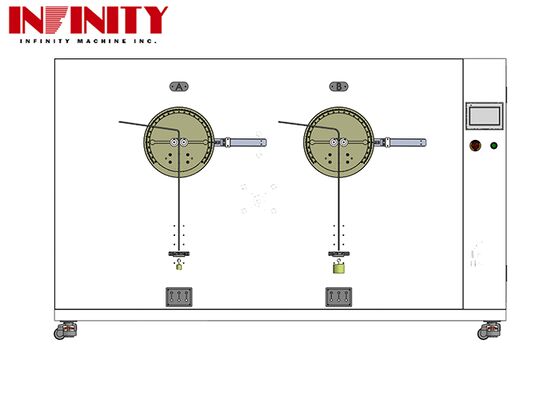

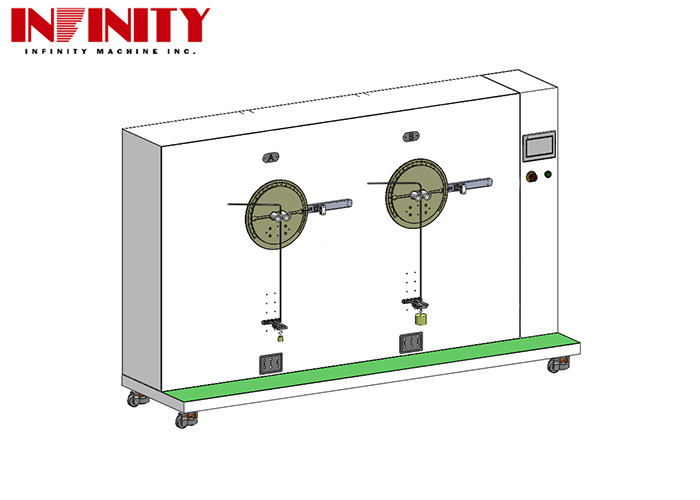

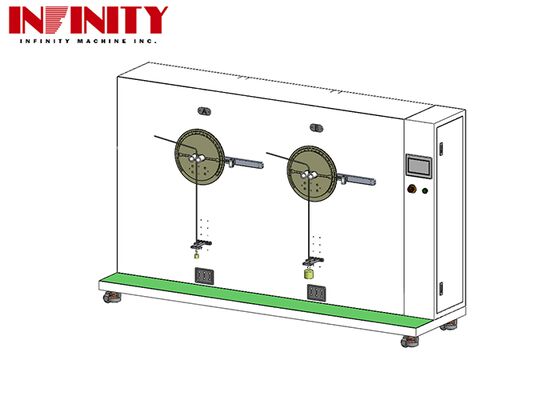

ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables

ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables

ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables
ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables
ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Product Name: Flex-Cycle Testing Machines For SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount: 2 Pcs Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year

Flex-Cycle Testing Machine for SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure

Cable Bending Fatigue Test Machine for Vehicle Wiring
Automotive Cables Cyclic Bending Fatigue Test Equipment
Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards

Purpose and Application

The cables cyclic bending test machine evaluates the bending fatigue performance of various cable types including:

  • Multi-conductor cables
  • Communication cables
  • Data cables
  • Robot cables
  • Automotive cables
  • Earphone wires
  • Machine cables

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables 0
Technical Specifications
Parameter Specification
Model C5092
Test Amount 2 PCS
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (or customize)
Dimension (W*D*H) 1280*724*1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user
Product Appearance
ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables 1 ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables 2
Packaging and Shipping
Product Packaging

Automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
