Name: Robotic Cable Torsion Test Machine with 4 Stations, CRIA 0003.2-2016 Compliant and Adjustable Torsion Angle
Brand: Infinity Machine International Inc.
SKU: IC2274
Price: 50,050.00 USD
Availability: InStock

Home Products Cable Bending Machine

Robotic Cable Torsion Test Machine with 4 Stations, CRIA 0003.2-2016 Compliant and Adjustable Torsion Angle

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	IC2274

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35~45 days after order confirmed
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Robot Cable Torsion Test Machine	Model:	IC2274
Application:	Automatic Cable Torsion Testing Machine Is Suitable For The Torsion Test Of Multi-core Cables And Communication Cables.	Standards:	Complies With Standards Such As Those Of The China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables For Industrial Robots — Part 2: Test Methods.
Working Station:	4	Orsion Angle:	1~±180° /±270° / ±360° (Customizable)
Test Speed:	1~30 Cycles/min (Adjustable)	Power:	AC220V Or AC120V
Warranty:	1 Year

Robotic Cable Torsion Test Machine CRIA 0003.2-2016 Cable Bending Machine

Product Overview

This robotic cable torsion test machine is designed for comprehensive testing of multi-core cables and communication cables in compliance with CRIA 0003.2-2016 standards for industrial robot special cables.

Model: IC2274
Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods

Application

The cable torsion testing machine is specifically designed for torsion testing of multi-core cables and communication cables. It performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.

Technical Specifications

Item	Specification
Test Station	4 stations (Customizable)
Sample Diameter	3~15mm (Customizable)
Specimen Test Length	500~1000mm (Customizable)
Sample Torsion Speed	1~30 cycles/min (Adjustable)
Torsion Angle	1~±180° /±270° / ±360° (Customizable)
Control Method	Touch screen control
Counting Digits	0-99999999 cycles
Motor	Servo motor (Japan)
Machine Weight	Approx. 400 Kg
Working Power Supply	AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power	1.8KW
Equipment Dimensions	W1700D740H1700mm

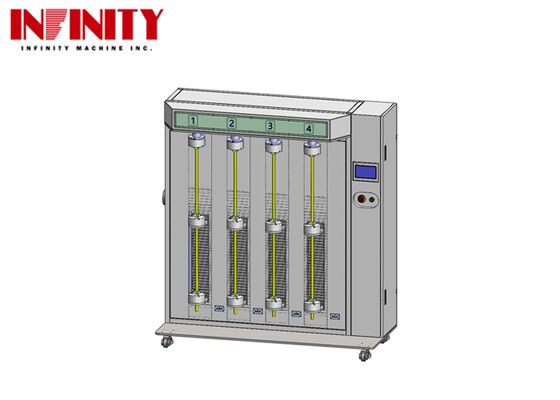

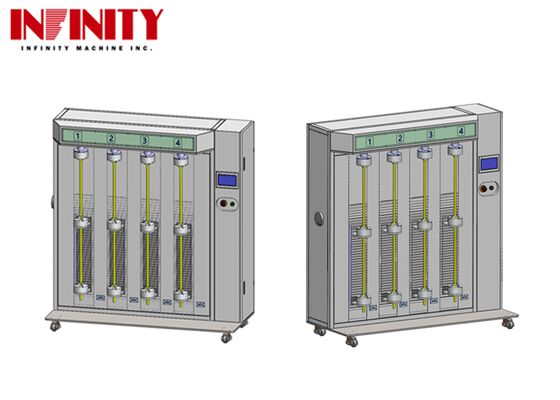

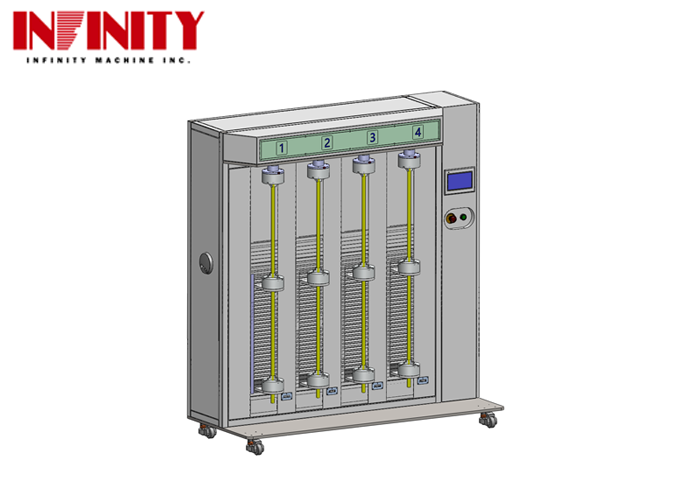

Product Appearance

Packaging and Shipping

Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.

Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.

bend test equipment,

flex tester machines,

cable testing machine
