ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing

ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing

  • ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing
  • ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing
  • ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing
  • ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing
ISO 19642-2 Cable Bending Fatigue Tester with 2 PCS Test Amount and 10~60rpm Test Speed for Multi-conductor Cable Cyclic Bending Testing
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Cables Bending Fatigue Tester For Multi-conductor Cable Fatigue Testing ISO 19642-2 Test Apparatus For Cyclic Bending Cable Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

ISO 19642-2 Cable Bending Fatigue Tester

,

2 PCS Cable Cyclic Bending Test Machine

,

10~60rpm Multi-conductor Cable Bending Tester

Model: C5092 — Cable Cyclic Bending Tester for Automotive Cables

This automotive cables cyclic bending test machine is designed for bending testing of multi-wire cables, communication cables, earphone cables, and similar products. The testing method involves short-circuit connecting one end of the cable, fixing this end on the rotation plate, applying weights to the cable, and performing left and right rotations to evaluate cable conductivity after specified rotation cycles and assess cable quality.

Compliant Test Standards
  • ISO 19642-2 Road vehicles — Automotive cables — Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2–2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

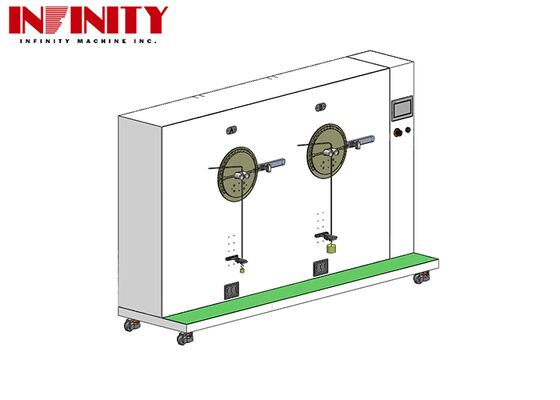

Overview diagram of the C5092 wires bending test machine showing the rotation plate, guide wheels, and weight assembly
C5092 Wires Bending Test Machine — overview diagram
Technical Specifications
Model C5092
Test Amount 2 PCS
Test Speed 10–60 rpm ±2 cpm (frequent user setting: 13 rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1–999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable), 4 sets
Diameter of Rotation Plate 275 mm
Weights 100 g, 200 g, 500 g, 1000 g (each 2 pcs)
Dimensions (W×D×H) 1280 × 724 × 1320 mm
Weight 350 kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A, or specified by user
Product Appearance

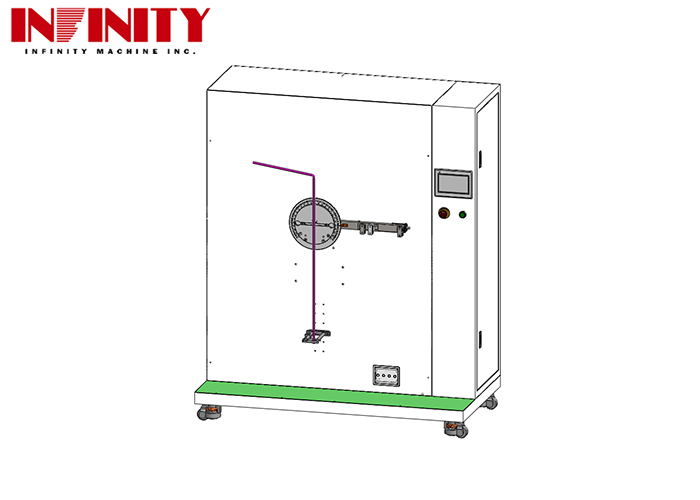

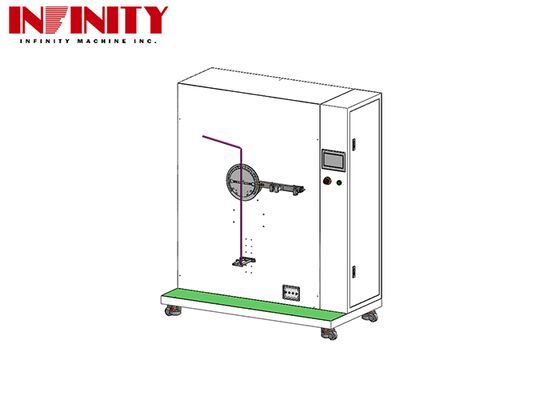

Front view of the C5092 cable bending test machine showing the control panel and rotation plate
Front view of the C5092 cable bending test machine
Side view of the C5092 cable bending test machine showing the guide wheel assembly and weight hanger
Side view of the C5092 cable bending test machine
Packaging and Shipping
Product Packaging

Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent any damage during transportation. The exterior of each crate is clearly labeled with shipping marks for easy identification.

Shipping Process

All automotive cables cyclic bending test machines are shipped through reliable and experienced shipping companies. Transportation is carefully arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status throughout the delivery process.
