Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Test Apparatus For Cyclic Bending Multi Conductor Cable ISO 19642-2 Compliant Cable Cyclic Bending Tester For Automotive Cables Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

ISO 19642-2 cable bending tester

,

multi conductor cable cyclic bending apparatus

,

automotive cable bending test machine

Product Overview: C5092 Cable Cyclic Bending Tester

The C5092 is a dedicated cyclic bending test apparatus engineered for multi-conductor cables, communication cables, earphone cables, and comparable flexible cable products. It evaluates cable durability and conductivity after repeated flexing, making it a reliable instrument for automotive cable quality verification.

The testing method is straightforward and repeatable: one end of the cable is short-circuit connected and fixed to the rotation plate, specified weights are applied to the cable, and the plate performs left and right rotations. After the designated number of rotation cycles, cable conductivity is measured to assess overall cable quality.

Compliant Test Standards
  • ISO 19642-2 Road vehicles — Automotive cables — Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2—2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

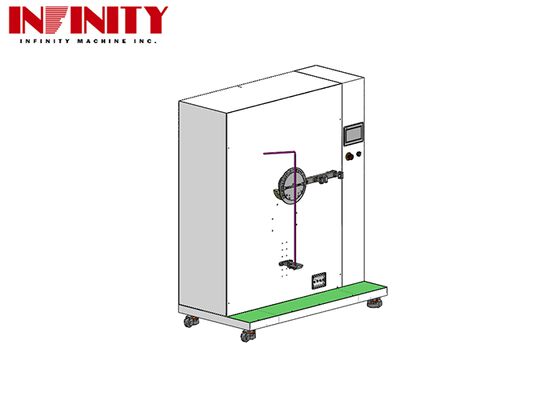

C5092 multi-conductor cable cyclic bending test machine overview diagram
C5092 wires bending test machine — overview
Technical Specifications
Model C5092
Test Amount 2 PCS
Test Speed 10~60 rpm ±2 cpm (frequent user setting of 13 rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable), 4 sets
Diameter of Rotation Plate 275 mm
Weights 100 g, 200 g, 500 g, 1000 g (each 2 pcs)
Dimensions (W×D×H) 1280 × 724 × 1320 mm
Weight 350 kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A, or specified by user
Product Appearance

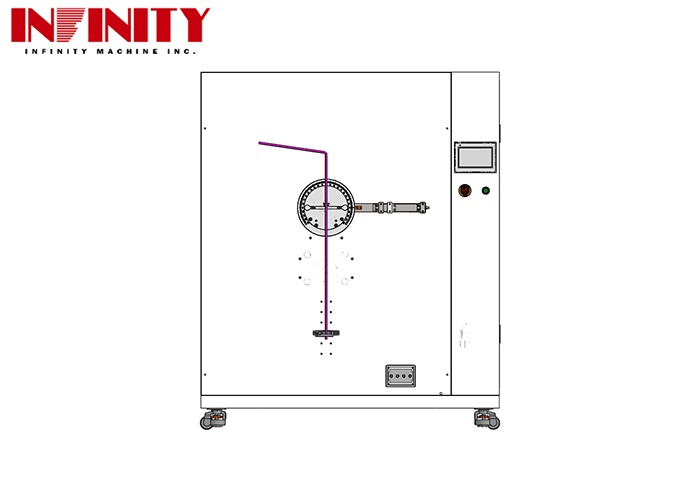

Front view of C5092 automotive cable cyclic bending test machine
Front view of the C5092 cable bending test machine

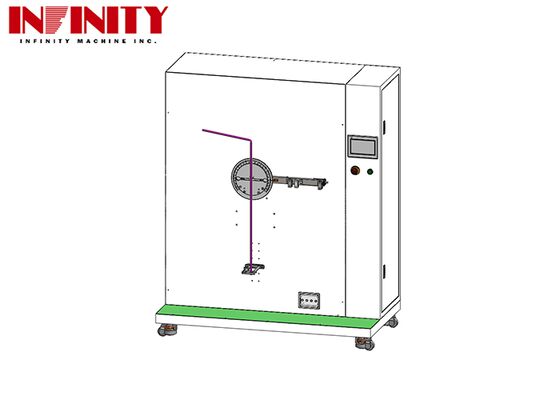

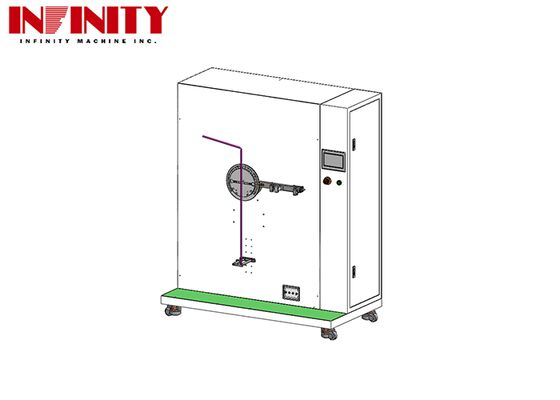

Side view of C5092 automotive cable cyclic bending test machine
Side view of the C5092 cable bending test machine
Packaging and Shipping
Product Packaging

Each automotive cables cyclic bending testing machine is securely packed in a wooden crate to prevent damage during transportation. The exterior of every crate is clearly labeled with shipping marks for quick and accurate identification.

Shipping Process

All machines are shipped through reliable and experienced freight partners. Transportation is carefully arranged to ensure timely delivery and safe handling, and customers receive tracking information to monitor shipment status throughout the delivery process.
