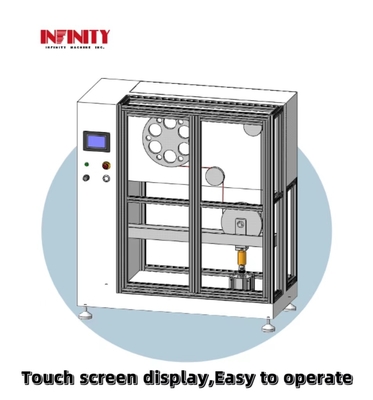

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min

  • Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min
  • Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min
Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IC2361A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Wire Endurance Testing Machine Model: IC2361A
Application: Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Hemp Ropes And Other Wires To Detect The Reliability Of The Wires. Standard: JIS G3540-1995
Specimen Size: 25.4*25.4mm Sample Holding Force: 0~400N (Adjustable)
Impact Angle: 90° Power: Electronic
Warranty: 1 Year
Highlight:

Wire Cable Fatigue Testing Machine

,

Cable Endurance Fatigue Testing Machine

,

Wire Cable Endurance Fatigue Testing Machine

Operating Speed 120rpm/min Wire&Cable Endurance Fatigue Testing Machine

Model:IC2361A





Application:

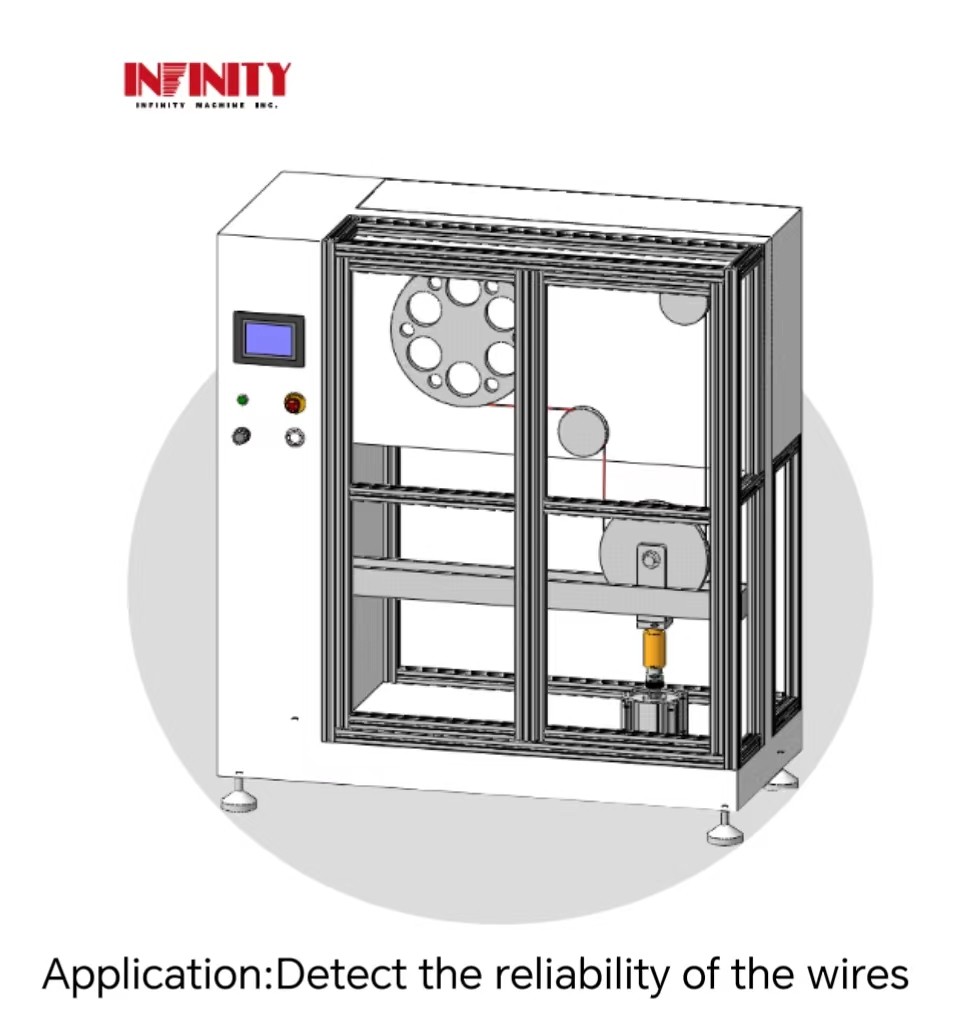

This equipment is suitable for fatigue testing of various types of wires, cables, steel cables and other wires to detect the reliability of the wires.



Features:

  • The cylinder tension is used instead of the traditional weight tension method, making the operation more convenient.
  • Equipped with a force sensor to detect the actual value of tension in real time, it can more accurately control the changes in tension during the test process.
  • Using LCD touch screen + PLC control module, program editing is simple.
  • The optional (continuity detection function) can detect cable damage in real time during the test, and will shut down and alarm once breakage is detected.
  • It adopts aluminum profile + acrylic frame, equipped with safety door and has door opening and shutdown protection functions to protect the personal safety of users to the maximum extent.



Specification:



Parameter Value
standard test JIS G3540-1995

Test the core number of cable samples

 7*7 &1*19
Sample diameter 1~3mm
Tension load 300-950kg Adjustable
Operating speed 120rpm/min
Sensor range 1000Kg(10KN)
Force accuracy ±1%
Use air pressure ≥0.5Mpa
Test angle 0~180°Adjustable
Testing frequency 1~999999 settable
Equipment size:(L*W*H) 1500*700*1660mm
Device power supply AC220V 50/60Hz
equipment power 500Ｗ
equipment weight 280kg


Equipment details:

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min 0

  • Touch screen: control the lifting and lowering of the load cylinder and set the test parameters.
  • Power switch: controls the power on of the entire device.
  • Emergency stop button: Emergency stop the operation of the equipment.
  • Pressure regulating valve: adjusts the air pressure of the load cylinder in the equipment.
  • Pressure gauge: displays the pressure value of the loaded cylinder.
  • Power plate: Provides power for cable movement.
  • Load wheel: The load wheel rotates with the cable during cable testing to prevent cable damage.
  • Force sensor: Feedback the load on the cable.
  • Load cylinder: provides downward load for cable testing.

Dimensions:(mm)

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min 1

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min 2

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Wire Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.



Hot-sale products recommendation:

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min 3

Wire Cable Endurance Fatigue Testing Machine Operating Speed 120rpm/min 4



For more details:

Please contact :Moi Mai

Email:sales2@infinity-machine.com

Tel/Whatsapp/Wechat:+86 181-0308-7812
