Name: ISO 19642-2 Compliant Cable Flex Tester for SFF-8417 Multi Conductor Cable with 10~60rpm Test Speed
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

Home Products Wire Fatigue Tester

ISO 19642-2 Compliant Cable Flex Tester for SFF-8417 Multi Conductor Cable with 10~60rpm Test Speed

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	C5092

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35-40 days after order confirmed
Payment Terms:	T/T
Supply Ability:	50 set per month

Contact Now

Detailed Product Description

Product Name:	Cable Flex Test Machine For SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure	Model:	C5092
Application:	Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc.	Test Standard:	SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount:	2 Pcs	Test Speed:	10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range:	±90° / 0°~180°	Testing Cycles:	1～999,999times
Power:	Single Phase AC220V Or 120V±10%, 50/60Hz	Warranty:	1 Year

ISO 19642-2 Cable Flex Tester Compliant Wire Fatigue Tester for Automotive Cable

Wire Fatigue Tester For Automotive Cables - Model C5092

Product Overview

The Cable Bending Fatigue Tester is designed for evaluating the bending fatigue performance of various cable types in automotive and industrial applications. This testing equipment is fully compliant with ISO 19642-2 standards and specifically engineered for SFF-8417 Multi Conductor Cable Flex Cycle Test procedures.

Purpose and Application

The cyclic bending test machine evaluates bending fatigue performance for multiple cable types including:

Multi-conductor cables
Communication and data cables
Robot cables
Automotive cables
Earphone wires
Machine cables

Testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (WDH)	12807241320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

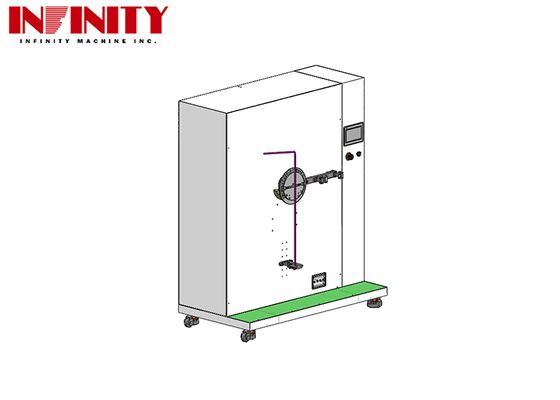

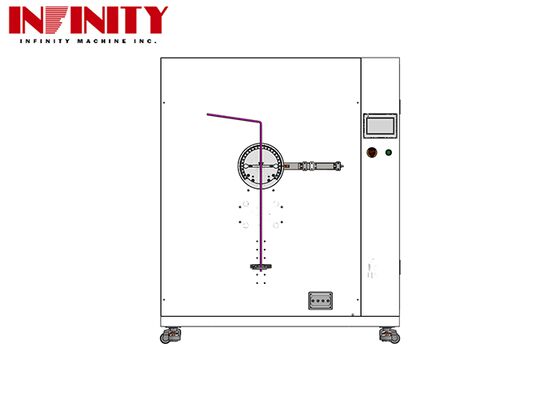

Product Appearance

Packaging and Shipping

Product Packaging: Automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping: We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
