ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed

ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed

ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed
ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed
ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Product Name: Wire Fatigue Tester For SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount: 2 Pcs Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year

ISO 19642-2 Compliant Cable Flex Cycle Testing Machine
Wire Fatigue Tester For Automotive Cables - Model C5092
Product Overview
The Cable Bending Fatigue Test Machine is designed for evaluating the bending fatigue performance of various cable types in automotive and industrial applications. This testing equipment is fully compliant with ISO 19642-2 standards and specifically engineered for SFF-8417 Multi Conductor Cable Flex Cycle Test procedures.
Purpose and Application
The cyclic bending test machine evaluates bending fatigue performance for multiple cable types including:
  • Multi-conductor cables
  • Communication and data cables
  • Robot cables
  • Automotive cables
  • Earphone wires
  • Machine cables

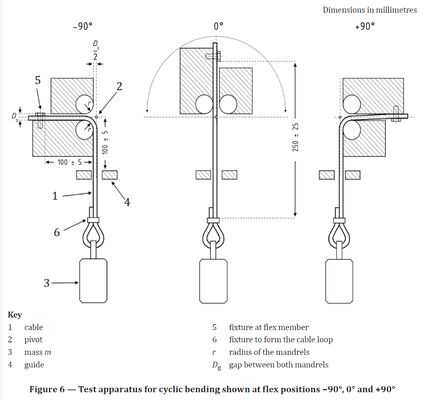

Testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.
Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed 0
Technical Specifications
Parameter Specification
Model C5092
Test Amount 2 PCS
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (or customize)
Dimension (W*D*H) 1280*724*1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user

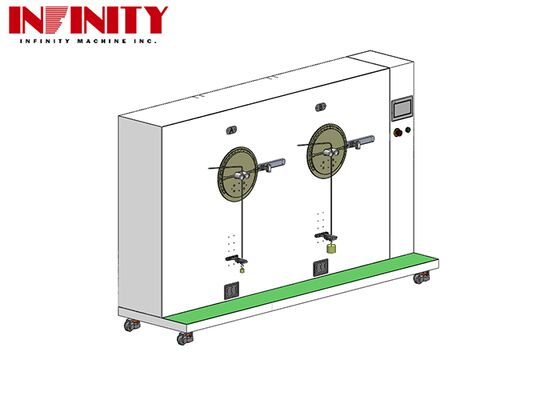

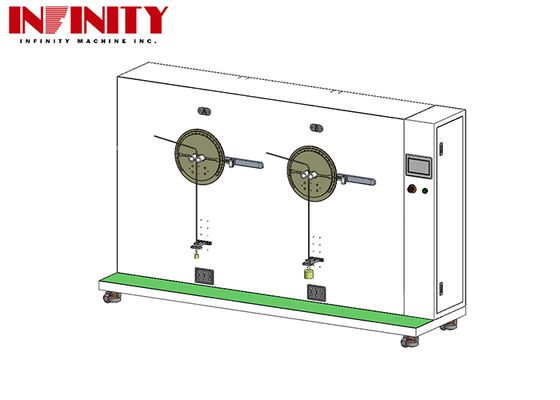

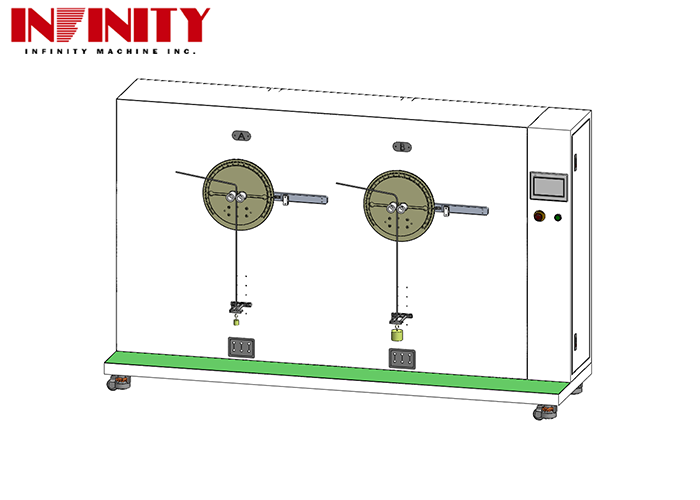

Product Appearance
ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed 1
ISO 19642-2 Compliant Wire Fatigue Tester for Automotive Cables with 2 PCS Test Amount and 10~60rpm Test Speed 2
Packaging and Shipping
Product Packaging: Automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.
Shipping: We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
