Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine

Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine

  • Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine
  • Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine
  • Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine
Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: IC2274
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35~45 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine Model: IC2274
Application: Robotic Cable Torsion Test Machines Are Suitable For The Torsion Test Of Multi-core Cables And Communication Cables. Standards: Complies With Standards Such As Those Of The China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables For Industrial Robots — Part 2: Test Methods.
Working Station: 4 Orsion Angle: 1~±180° /±270° / ±360° (Customizable)
Test Speed: 1~30 Cycles/min (Adjustable) Power: AC220V Or AC120V
Warranty: 1 Year
Highlight:

robot arm cable tester

,

torsion testing equipment

,

wire fatigue test machine

Robot Arm Cable Repeated Torsion Testing Equipment
Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.
Product Overview
Model: IC2274
Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods
Application
Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
Technical Specifications
Item Specification
Test Station 4 stations (Customizable)
Sample Diameter 3~15mm (Customizable)
Specimen Test Length 500~1000mm (Customizable)
Sample Torsion Speed 1~30 cycles/min (Adjustable)
Torsion Angle 1~±180° /±270° / ±360° (Customizable)
Control Method Touch screen control
Counting Digits 0-99999999 cycles
Motor Servo motor (Japan)
Machine Weight Approx. 400 Kg
Working Power Supply AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power 1.8KW
Equipment Dimensions W1700*D740*H1700mm

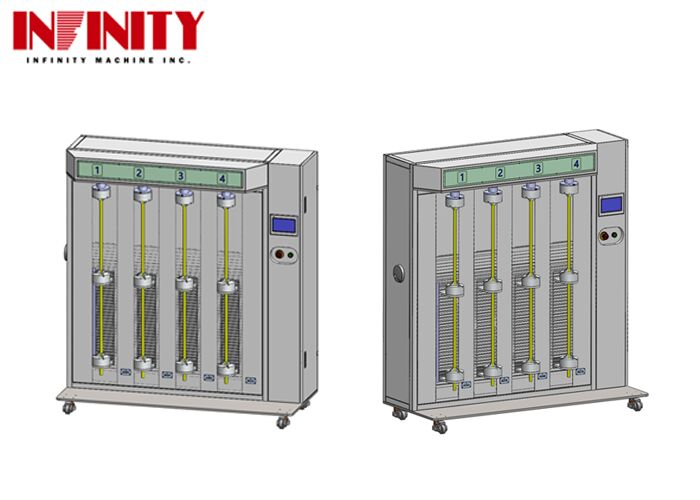

Product Appearance

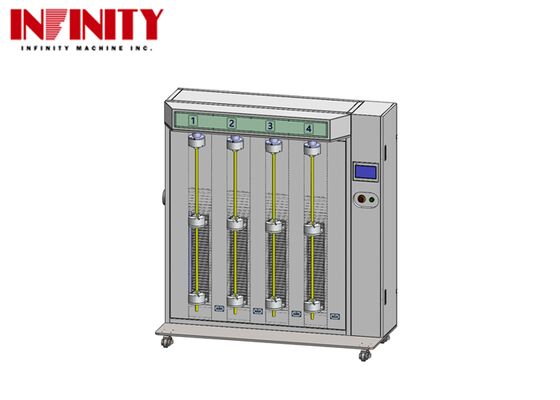

Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine 0
Robotic Cable Torsion Test Machine - Front View

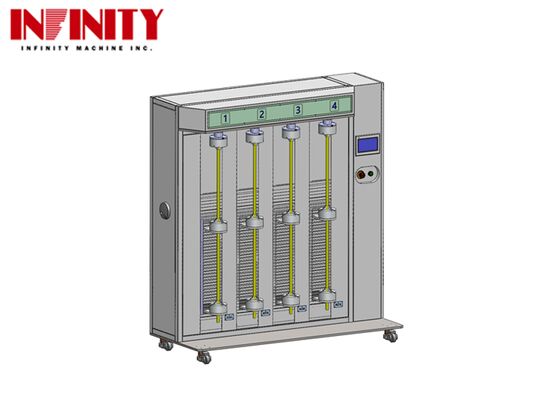

Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine 1
Robotic Cable Torsion Test Machine - Side View
Packaging and Shipping
  • Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
  • Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Related Product Recommendation: Contact our sales team for personalized product recommendations based on your specific testing requirements.
