Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester

Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester

  • Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester
  • Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester
  • Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester
Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: IC2274
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35~45 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Robotic Wire Fatigue Test Machine CRIA 0003.2-2016 Model: IC2274
Application: Robotic Cable Torsion Test Machines Are Suitable For The Torsion Test Of Multi-core Cables And Communication Cables. Standards: Complies With Standards Such As Those Of The China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables For Industrial Robots — Part 2: Test Methods.
Working Station: 4 Orsion Angle: 1~±180° /±270° / ±360° (Customizable)
Test Speed: 1~30 Cycles/min (Adjustable) Power: AC220V Or AC120V
Warranty: 1 Year
Highlight:

Robotic Cable Torsion Tester CRIA compliant

,

Wire Fatigue Tester fatigue resistance

,

CRIA 0003.2-2016 compliant torsion machine

Robotic Cable Torsion Test Machines
CRIA 0003.2-2016 Compliant Wire Fatigue Tester for comprehensive testing of multi-core cables and communication cables in compliance with China Robot Industry Alliance standards.
Product Overview
Model: IC2274
Compliance: CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Test Methods
Application
Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
Technical Specifications
Item Specification
Test Station 4 stations (Customizable)
Sample Diameter 3~15mm (Customizable)
Specimen Test Length 500~1000mm (Customizable)
Sample Torsion Speed 1~30 cycles/min (Adjustable)
Torsion Angle 1~±180° /±270° / ±360° (Customizable)
Control Method Touch screen control
Counting Digits 0-99999999 cycles
Motor Servo motor (Japan)
Machine Weight Approx. 400 Kg
Working Power Supply AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power 1.8KW
Equipment Dimensions W1700*D740*H1700mm

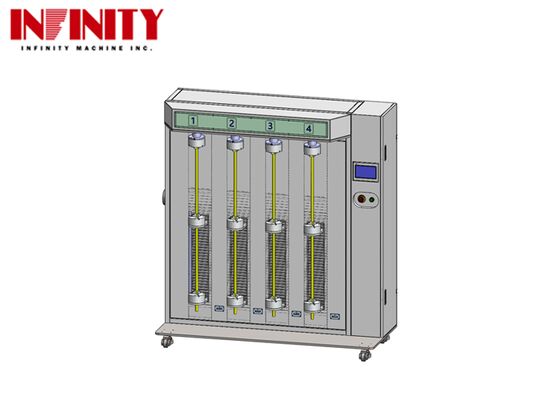

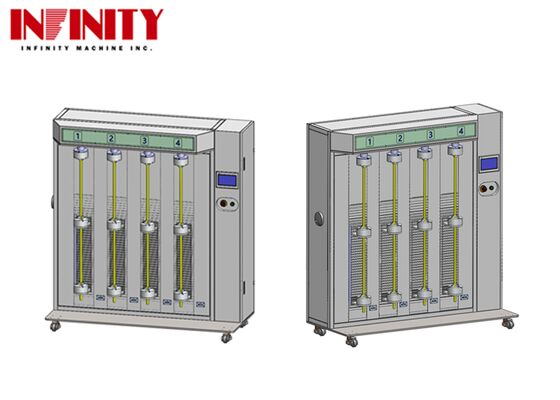

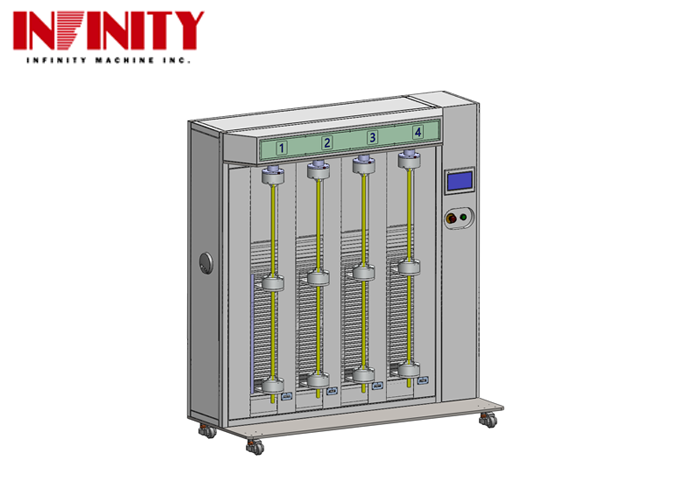

Product Appearance
Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester 0 Robotic Cable Torsion Test Machines CRIA 0003.2-2016 Compliant Wire Fatigue Tester 1
Packaging and Shipping
  • Product Packaging: Securely packaged in wooden crate to prevent damage during transportation. Crate is sealed and labeled with product information for easy identification.
  • Shipping: Handled by reliable shipping companies with arrangements to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
