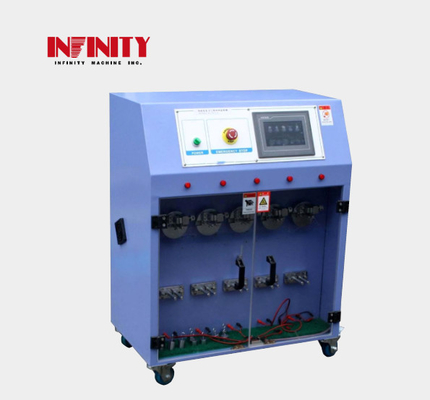

PLC Control Five Stations Wire Pull Testing Machine For Swing Folding Resistance Test

PLC Control Five Stations Wire Pull Testing Machine For Swing Folding Resistance Test

  • PLC Control Five Stations Wire Pull Testing Machine For Swing Folding Resistance Test
  • PLC Control Five Stations Wire Pull Testing Machine For Swing Folding Resistance Test
PLC Control Five Stations Wire Pull Testing Machine For Swing Folding Resistance Test
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IC2095
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Product Name: Five Stations Wire Pull Testing Machine Product Model: IC2095
Standard: Bend Test GBT 5023.2 Power: Electronic
Warranty: 1 Year
Highlight:

Five Stations Wire Pull Testing Machine

,

PLC Control Wire Pull Testing Machine

,

Wire Pull Swing Folding Resistance Test

Five Stations Wire Pull Testing Machine

Product model number: IC2095



Application:

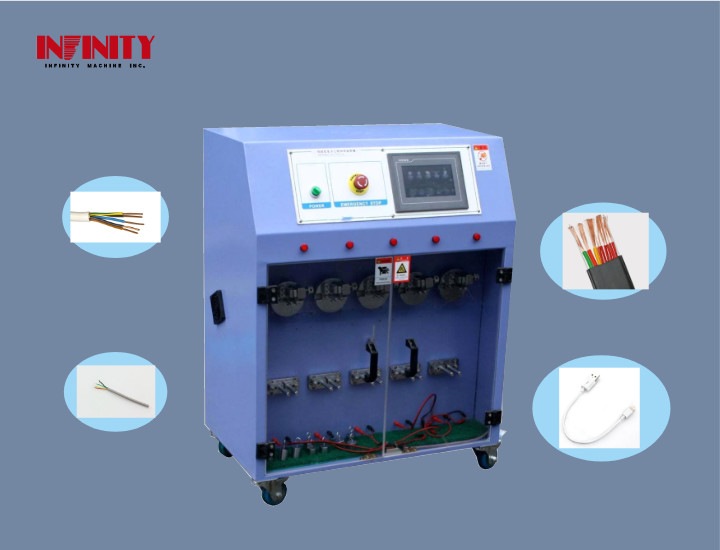

The equipment is suitable for multi-core cable, communication cable, headphone cable, flat cable, signal cable, charging cable and other wires for swing folding resistance test. The test method is: one end of the wire is short held, fixed on the rotating plate, the wire is vertically downward, the other end binds the weight, the rotating plate rotates left and right, causing repeated bending of the wire, after many tests, to evaluate whether the wire conduction is good.



Features:

    1.Using Japan Panasonic AC servo motor drive, high precision positioning is accurate, low noise, can be used for a long time. Test Angle:                 0~1800,Error: ± 10.

    2.Special power supply rectifier circuit is used to improve the long-time use ability and anti-interference of the motor and execution components.

    3.The Korean AUTONIS high-precision photoelectric switch is used for origin induction, with high pulse frequency and durable use.

    4.Using MCGS 7 " TFT LCD touch screen controller as program input, PLC control, Chinese interface, easy to control.

5.The test conditions are set by the touch screen or LCD screen (Angle setting, speed, test times, measured times, rotation stay time, and             residence time after multiple tests).

   6.Five wires can be tested simultaneously.

   7.Each group is equipped with a signal (conduction test) test line and indicator light. Once the wire is broken (the loop signal is not formed), the        current station indicator is off and the counting is stopped.



Standard:

Bend test GBT 5023.2



Specification parameters:

Product model

IC2095

Test samples at the same time 5pcs
Control system touch screen +PLC
Drive Panasonic servo motor in Japan
Test speed 6~420 ± 25 rad/s (settable)
Motor acceleration and deceleration time <45ms
Test angle range 0~±180°
Minimum display angle

1°
