| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC2361A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Equipment Size:（L*W*H）: | 1500*700*1660mm | Application: | This Equipment Is Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Ropes And Other Wires To Detect The Reliability Of The Wires. |
|---|---|---|---|
| Use Air Pressure: | ≥0.5Mpa | Equipment Weight: | 280KG |
| Product Name: | Five Stations Wire Pull Testing Machine | Operating Speed: | 120rpm/min |
| Feature: | The Cylinder Tension Is Used Instead Of The Traditional Weight Tension Method, Making The Operation More Convenient. Equipped With A Force Sensor To Detect The Actual Value Of Tension In Real Time, It Can More Accurately Control The Changes In Tension Du | Sensor Range: | 1000Kg（10KN） |
| Highlight: | Standard Test Wire Endurance Testing Machine,120rpm/min Wire Endurance Testing Machine |
||

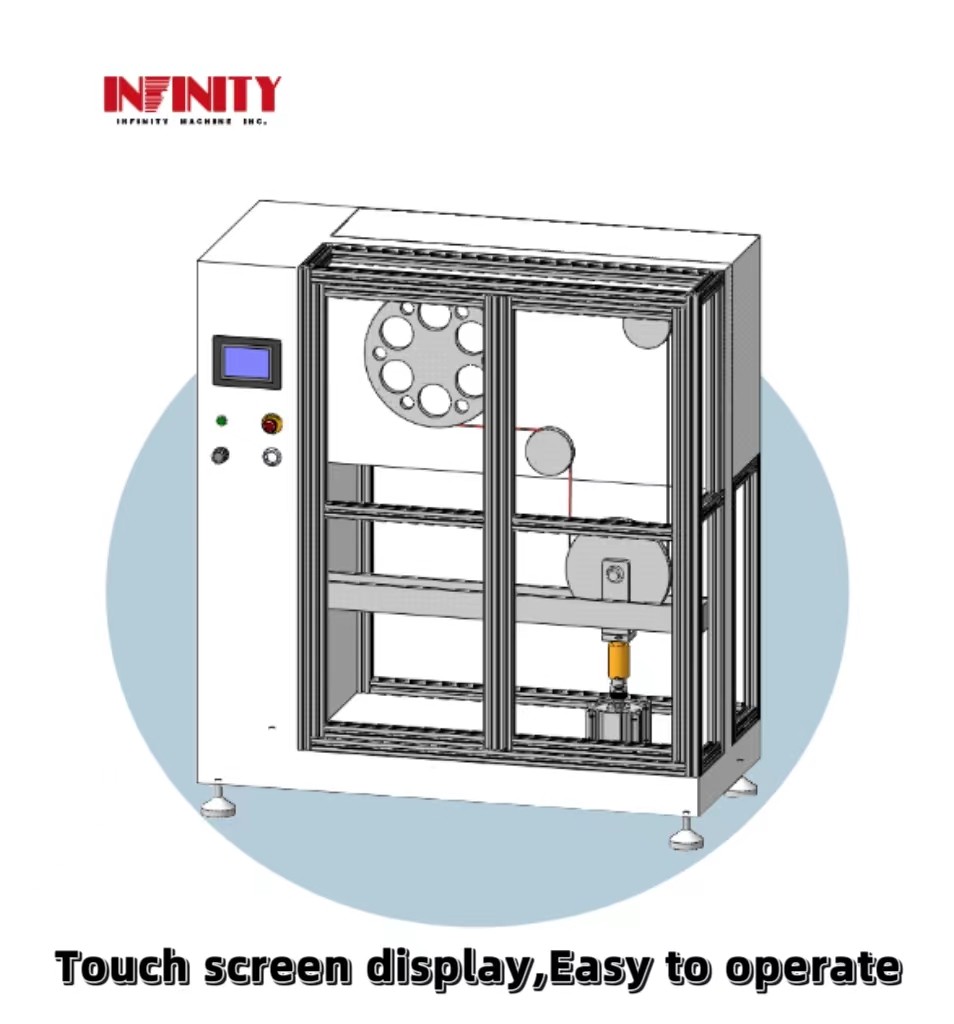

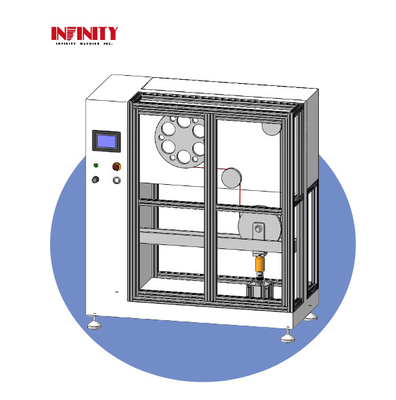

This Wire Durability Tester is equipped with a force sensor to detect the actual value of tension in real-time which helps in more accurate control of changes in tension during the test process. The Cylinder Tension is used instead of the traditional weight tension method which makes the operation more convenient for the users. It has an LCD touch screen + PLC control module which makes program editing simple.
The Cable Fatigue Testing Machine also has an optional continuity detection function which can detect cable damage in real-time during the test. It will shut down and alarm once breakage is detected. It is made up of Aluminum Profile + Acrylic Frame which makes it durable and long-lasting. It is also equipped with a safety door and has door opening and shutdown protection functions to protect the personal safety of users to the maximum extent.
Product Name: Wire Endurance Testing Machine
This Cable Life Cycle Testing Device is also known as a Wire Tensile Strength Machine.
| Application | Wire Durability Tester suitable for fatigue testing of various types of wires, cables, steel cables, ropes, and other wires to detect the reliability of the wires. |
| Tested Core Number | 7*7 & 1*19 |
| Sample Diameter | 1~3mm |
| Force Accuracy | ±1% |
| Sensor Range | 1000Kg(10KN) |
| Use Air Pressure | ≥0.5Mpa |
| Equipment Weight | 280KG |
| Standard Test | JIS G3540-1995 |
| Equipment Size | 1500*700*1660mm (L*W*H) |
| Features |
|
The Wire Pull Tester is equipped with a force sensor that detects the actual value of tension in real-time, which can more accurately control the changes in tension during the test process. The Cylinder Tension is used instead of the traditional weight tension method, making the operation more convenient. It uses an LCD touch screen + PLC control module, and program editing is simple. The optional continuity detection function can detect cable damage in real-time during the test and will shut down and alarm once breakage is detected. It adopts an aluminum profile + acrylic frame, equipped with a safety door, and has door opening and shutdown protection functions to protect the personal safety of users to the maximum extent.
The Wire Pull Tester has a Tension Load of 300-950Kg Adjustable and can test the core number of cable samples of 7*7 & 1*19. The force accuracy of this product is ±1%. The Sensor Range is 1000Kg (10KN), which makes it highly efficient in testing the life cycle of cables.
The Wire Pull Tester has a wide range of applications and scenarios, making it an ideal Cable Life Cycle Testing Device. It can be used in the quality control of wire and cable manufacturers, research and development institutions, and laboratory testing. This product can be used to test the fatigue and tensile strength of wires and cables and is highly efficient in detecting cable damage.
In summary, the INFINITY IC2361A Wire Pull Tester is a highly efficient Cable Fatigue Testing Machine that is perfect for testing the life cycle of cables. This product is made in China and is certified by CE and ISO. It has a wide range of applications and scenarios, making it an ideal Cable Life Cycle Testing Device for wire and cable manufacturers, research and development institutions, and laboratory testing.
Customization Services for INFINITY Wire Pull Tester IC2361A
Brand Name: INFINITY
Model Number: IC2361A
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Product model: IC2361A
Equipment power: 500Ｗ
Testing frequency: 1~999999 Can Be Set
Application: This Equipment Is Suitable For Fatigue Testing Of Various Types Of Wires, Cables, Steel Cables, Ropes And Other Wires To Detect The Reliability Of The Wires.
Sample diameter: 1~3mm
Keywords: Wire Tensile Strength Machine, Wire Tensile Strength Machine, Wire Durability Tester
The Wire Pull Tester is a precision testing instrument used to measure the pull force required to separate a wire from a terminal or crimp. The instrument is designed to provide accurate and repeatable results for both destructive and non-destructive testing. The product technical support and services offered for the Wire Pull Tester include:
- Technical consultation and assistance for product selection, operation, and maintenance
- Repair and calibration services to ensure accuracy and reliability
- Training and education programs to help users optimize testing procedures and results
- Customization of testing procedures and equipment to meet specific customer requirements
- Access to online resources such as user manuals, technical specifications, and troubleshooting guides
- Expert assistance with data analysis and interpretation
Product Packaging:
Shipping:
Q: What is the brand name of the wire pull tester?
A: The brand name of the wire pull tester is INFINITY.
Q: What is the model number of the wire pull tester?
A: The model number of the wire pull tester is IC2361A.
Q: Where is the wire pull tester made?
A: The wire pull tester is made in China.
Q: What certifications does the wire pull tester have?
A: The wire pull tester is CE and ISO certified.
Q: What is the minimum order quantity for the wire pull tester?
A: The minimum order quantity for the wire pull tester is 1.
Q: What is the price of the wire pull tester?
A: The price of the wire pull tester is negotiable.
Q: What are the packaging details of the wire pull tester?
A: The packaging details of the wire pull tester include clear sheet, sponge, and wood carton.
Q: What is the delivery time for the wire pull tester?
A: The delivery time for the wire pull tester is 20-30 days after order confirmed.
Q: What are the payment terms for the wire pull tester?
A: The payment terms for the wire pull tester include TT, PayPal, Moneygram, and so on.
Q: What is the supply ability for the wire pull tester?
A: The supply ability for the wire pull tester is 200 sets per month.
