| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IC1362 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Use | Source: | AC 220V 3A |
|---|---|---|---|
| Test Angle: | 0~±720° | Test Load: | 125g And 250g |

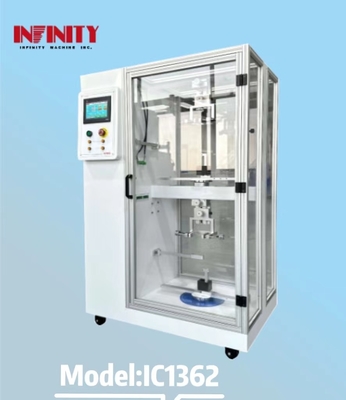

| Model: | IC1362 | Machine Size: | W1030×D 770×H1620mm |
| Test Station: | 2Slots | Test Method: | 1.Attach One End Of The Power Cable Or Headphone Cable On The Fixture, As Shown In The Following Figure, Fold Back Into The 80~100mm Of The Clamp End, And Connect With The Reference Line (the Reference Line Passes Through Two Movable Pulleys As Shown In Th |
| Highlight: | Cable Pull Testing Machine,Customizable Cable Pull Testing Machine |
||

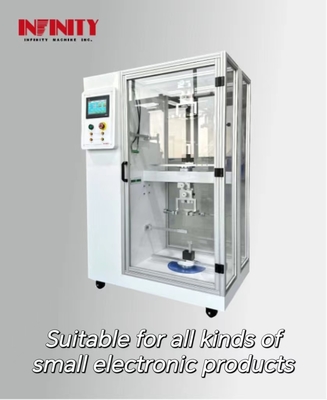

Customizable Cable Pull Testing Machine Test Method As Shown In The Following Figure
One of the most significant features of this product is its test angle range of 0~±720°. This range allows for comprehensive testing of cables at different angles. Additionally, the Wire 45°Cone Pull Test Machine comes with two test load options: 125g and 250g. These load options ensure that the machine can handle various cable testing requirements effortlessly.
The testing method for the Wire 45°Cone Pull Test Machine is straightforward and easy to follow. First, attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line. The reference line passes through two movable pulleys, and the other end is connected with the weight. Next, set the speed to 252 degrees/second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm.
The Wire 45°Cone Pull Test Machine is user-friendly and easy to operate. It comes with a clear user manual that outlines the steps to follow when performing cable pull testing. It is suitable for use in various industries, including electronics manufacturing, telecommunications, and cable manufacturing.
In conclusion, the Wire 45°Cone Pull Test Machine is an essential tool for Cable Pull Testing in small electronic products. Its features, including a test angle range of 0~±720°, two test load options of 125g and 250g, and a straightforward testing method, make it a reliable and efficient tool for cable testing. Whether you are in electronics manufacturing, telecommunications, or cable manufacturing, the Wire 45°Cone Pull Test Machine is a must-have for all your cable testing needs.
| Application: | Suitable For All Kinds Of Small Electronic Products Charging Power Cable, Earphone Wire, Small Multi-core Wire For Oblique 45 Degree Rotating Life Test. |
| Test Method: | Attach one end of the power cable or headphone cable on the fixture, fold back into the 80~100mm of the clamp end, and connect with the reference line (the reference line passes through two movable pulleys as shown in the figure below, and the other end is connected with the weight). Set the speed to 252 degrees / second, the rotation angle is 720 degrees, rotate 360 degrees and then rotate back to 360 degrees back to the origin until the completion of the times, check whether the wire is good. If it is necessary to monitor whether the wire test is defective or the wire resistance changes, both ends of the wire will be connected to the machine conduction or resistance detection port respectively. Once the wire break is defective or the resistance change exceeds the limit, the machine will automatically stop the test and alarm. |
| Test Times: | 1 ~ 9,99,999 times |
| Test Load: | 125g and 250g |
| Source: | AC 220V 3A |
| Machine Weight: | 155kg |
| Test Station: | 2Slots |

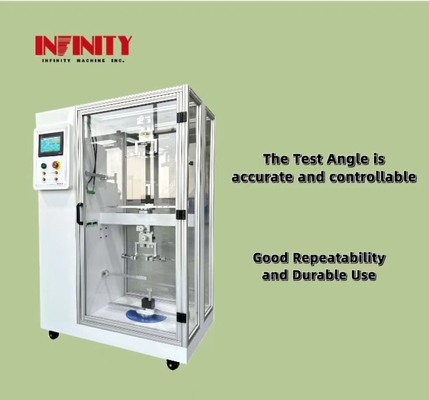

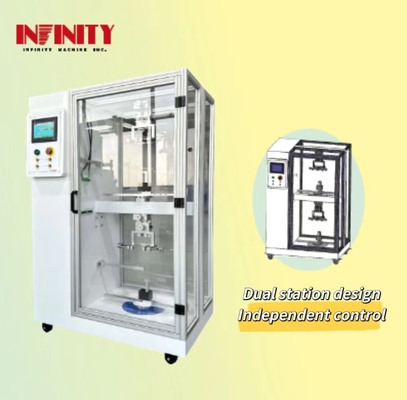

| Features: | Dual Station Design, Independent Control, Greatly Save The Test Space, Transparent Protective Cover Design, Not Only Convenient To Observe The Test Status And Improve The Safety Of The Equipment. Taiwan WEINVIEW Touch Screen + Japan Mitsubishi PLC Is Used For Program Control. The Test Conditions Can Be Input In The Touch Screen, And The Test Conditions And Test Times Can Be Displayed In Real Time. It Is Driven By Japan Panasonic AC Servo Motor, Japan SHIMPO Precision Planetary Reducer Deceleration, Japan Mitsubishi Synchronous Belt Transmission, The Test Angle Is Accurate And Controllable, Good Repeatability And Durable Use. With The Function Of Detecting Wire Conduction, The Wire Is Disconnected During The Test, And Stop The Alarm Immediately. It Has The Function Of Detecting The Resistance Change Of Wire, And Can Set The Upper And Lower Limits. If The Resistance Exceeds The Limit During The Test, Stop The Alarm Immediately. |
| Test Speed: | 60-360° / S Adjustable (standard 252° / S) |
| Model: | IC1362 |
The INFINITY IC1362 Wire Pull Testing Machine is a high-quality product made in China and certified by CE and ISO. It is designed for testing the quality of small electronic products' charging power cables, earphone wires, and small multi-core wires for oblique 45-degree cone pull life test. Its unique 45° angle cone pull test method can help to detect defects in wires and ensure their durability.
The Wire 45°Cone Pull Test Machine can be used in various scenarios, including electronic manufacturing, quality control, and research and development. It is an essential tool for ensuring the quality of small electronic products' wires and cables. The tester is easy to operate and can be used by anyone with minimal training.
The Wire Pull Testing Machine's test method is straightforward. One end of the power cable or headphone cable is attached to the fixture, folded back into the 80~100mm of the clamp end, and connected with the reference line. The reference line passes through two movable pulleys and is connected to the weight. The speed is set to 252 degrees/second, the rotation angle is 720 degrees, and the wire is rotated 360 degrees and then rotated back to 360 degrees back to the origin until the completion of the times. The machine will automatically stop the test and alarm if the wire is defective or the resistance changes exceed the limit.
The Wire Pull Testing Machine can detect line material resistance in the range of 0.01~2Ώ, and it has a test load of 125g and 250g. The product's minimum order quantity is 1, and the price is negotiable based on the quantity ordered. The packaging details include a clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and payment can be made through TT, Paypal, Moneygram, and other payment platforms. Furthermore, the Wire Pull Testing Machine has a supply ability of 200 sets per month.

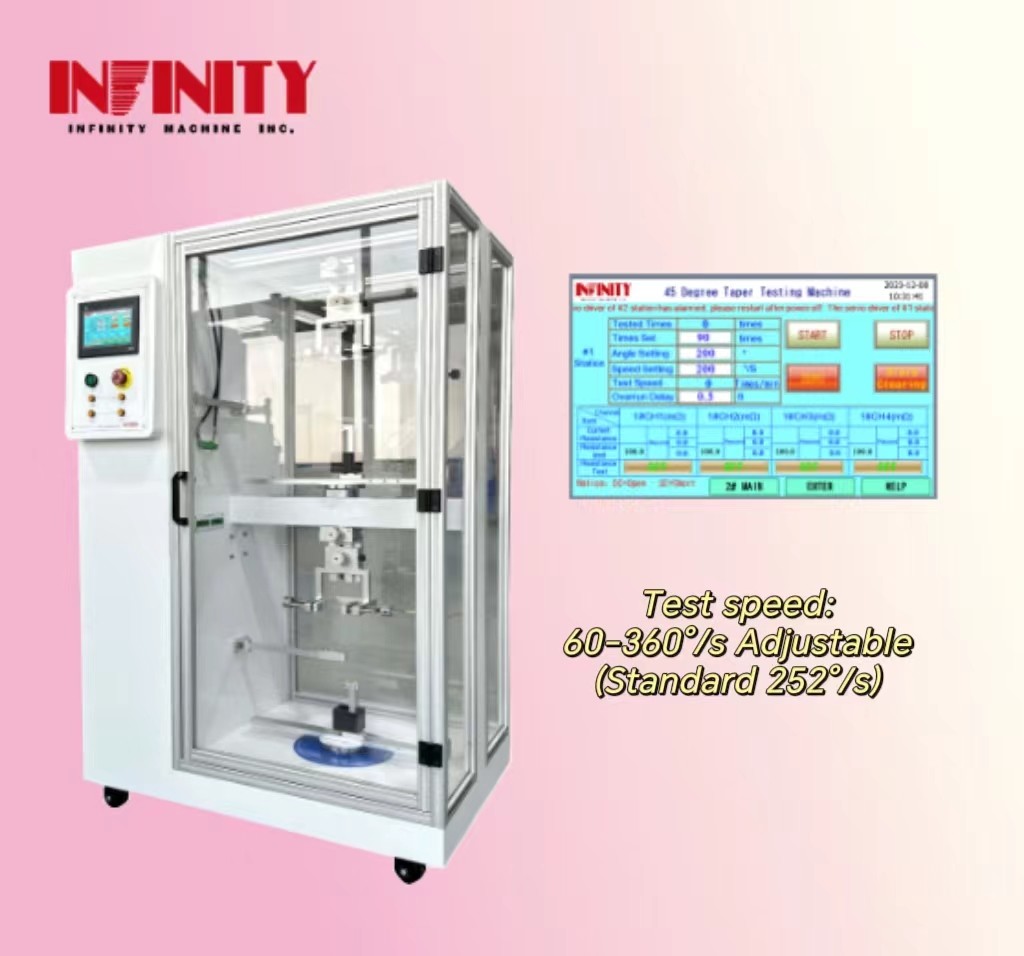

Software interface:
The test speed of our Wire 45°Cone Pull Test Machine is 60-360° / S adjustable (standard 252° / S). It is suitable for all kinds of small electronic products charging power cable, earphone wire, small multi-core wire for oblique 45 degree rotating life test. The dual station design and independent control greatly save the test space. The transparent protective cover design is not only convenient to observe the test status but also improves the safety of the equipment.
The product features a Taiwan WEINVIEW touch screen and a Japan Mitsubishi PLC for program control. The touch screen allows you to input the test conditions, and the test conditions and test times can be displayed in real-time. It is driven by a Japan Panasonic AC servo motor, Japan SHIMPO precision planetary reducer deceleration, Japan Mitsubishi synchronous belt transmission, ensuring accurate and controllable test angles, good repeatability, and durable use. The machine can detect wire conduction and stop the alarm immediately if the wire is disconnected during the test. It can also detect the resistance change of the wire and set upper and lower limits. If the resistance exceeds the limit during the test, the alarm will stop immediately.
The test times range from 1 to 9,99,999 times. Contact us now to customize your Wire 45°Cone Pull Test Machine to suit your testing requirements.
The Wire Pull Tester is a precision instrument designed to measure the pull strength of wire bonds. It is equipped with a high-precision load cell and can measure bond strengths up to 50kg. The product comes with a user manual and calibration certificate.
Our technical support team is available to provide assistance with any issues or questions regarding the proper use of the Wire Pull Tester. We offer repair and calibration services to ensure the accuracy and longevity of the product. Additionally, we provide training sessions for new users to ensure that they are properly trained on how to use the product.
Product Packaging:
Shipping:
Q1: What is the brand name of this wire pull tester?
A1: The brand name of this wire pull tester is INFINITY.
Q2: What is the model number of this wire pull tester?
A2: The model number of this wire pull tester is IC1362.
Q3: Where is this wire pull tester made?
A3: This wire pull tester is made in China.
Q4: What certifications does this wire pull tester have?
A4: This wire pull tester has CE and ISO certifications.
Q5: What is the minimum order quantity for this wire pull tester?
A5: The minimum order quantity for this wire pull tester is 1.
Q6: What is the price of this wire pull tester?
A6: The price of this wire pull tester is negotiable.
Q7: What are the packaging details for this wire pull tester?
A7: The packaging details for this wire pull tester are clear sheet+sponge+wood carton.
Q8: What is the delivery time for this wire pull tester?
A8: The delivery time for this wire pull tester is 20-30 days after order confirmed.
Q9: What are the payment terms for this wire pull tester?
A9: The payment terms for this wire pull tester are TT PAYPAL Moneygram and so on.
Q10: What is the supply ability of this wire pull tester?
A10: The supply ability of this wire pull tester is 200 sets/month.
