Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm

Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm

Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm
Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm
Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IZ1001 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Dimension: 650x650x1380mm Product Type: Testing Equipment
Weight: Around 130kgs Used For: It Is Suitable For All Kinds Of Wire With USB Plug For Arbitrary Angle Kick Yank Pull Test To Test The USB Plug Of Wire Kick Yank Pull Strength
Measurement Range: 0~360° Test Steps: 1. Adjust The Required Test Angle According To Point 1 Of The Above Adjustment Method. (The Upper And Lower Angle Of The Fixture Can Be Adjusted If Necessary) 2. Place The Sample In The Fixture And Turn The Screws To Grip The Sample. 3. The Standard Weight
Warranty: 1 Year Application: USB Wire & Cable Industry
High Light:

USB Wire Crimp Pull Tester

,

750mm Wire Crimp Pull Tester

Wire Kick Yank Tester Stainless Steel Cable Abrupt Pull Testing Equipment for Dimensions 600mm-750mm

Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm 0

Product Description:

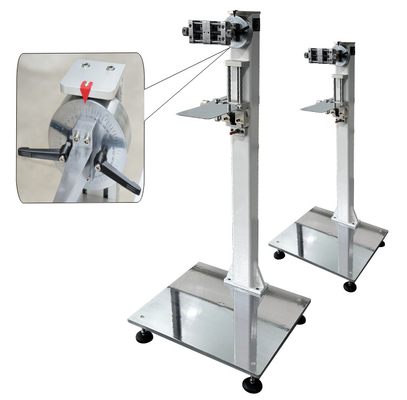

Product Overview: Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester)

This innovative product, the Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester), is specifically designed for the USB wire and cable industry. It is a revolutionary testing device that ensures the quality and durability of cables by accurately measuring their kick yank strength. Made from high quality stainless steel, this device is durable, reliable and long-lasting.

Key Features:
  • Application:  Wire & Cable Industry
  • Material: High Quality Stainless Steel
  • Dimensions: 600mm~750mm
  • Accuracy: ±0.5%
  • Used for: It is suitable for all kinds of wire for arbitrary angle kick yank pull test
  • To test wire kick yank pull strength

This Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is an essential tool for manufacturers and quality control departments, as it ensures that USB cables meet the necessary standards for strength and durability. With its precise accuracy of ±0.5%, it provides reliable and consistent results every time.

The dimensions of this device range from 600mm to 750mm, making it suitable for testing a wide variety of cable lengths. Its compact and portable design also allows for easy transportation and use in different locations.

The Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is easy to operate and can be used to test the kick yank strength of cables from any angle. This makes it a versatile and efficient testing device for all kinds of cables.

Usage:

To use, simply cable into the device and set the desired angle. The device will then pull the cable at the specified angle and measure the kick yank strength. The results are displayed in real-time on the digital display, providing instant feedback on the cable's quality.

With the Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester), manufacturers can ensure that their cables are of the highest quality and meet industry standards. This device is a must-have for any company in the USB wire and cable industry.

Invest in the Cable Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) Device today and ensure the strength and durability of your cables!

Model No. IZ1001
Rotation Angle: 0-360° adjustable
Tilt Range: 0°,45°,90°
: Test Height 600~750mm
Standard Weights: 350g,1000g,1100g,4500g
Dimension(WxDxH): 650x650x1380mm
Weight: Around 130kgs

Applications:

Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) - INFINITY IZ1001 Series
Brand Name: INFINITY
Model Number: IZ1001 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and so on
Supply Ability: 200 sets / month
Weight: Around 130kgs
Test Steps:

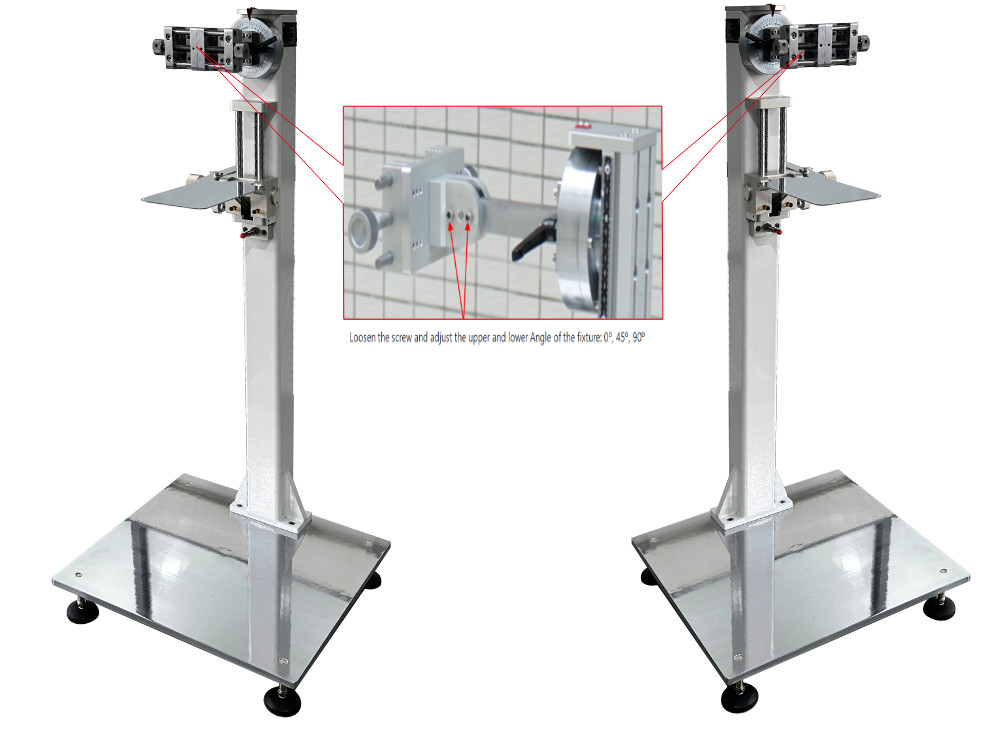

  1. Adjust The Required Test Angle According To Point 1 Of The Above Adjustment Method. (The Upper And Lower Angle Of The Fixture Can Be Adjusted If Necessary)
  2. Place The Sample In The Fixture And Turn The Screws To Grip The Sample.
  3. The Standard Weight Is Tied To The Sample Connection Line, And The Height Of The Weight Is Measured With A Reference Scale.
  4. Lift The Support Plate Manually So That The Rake Handle Is Fastened To The Support Plate. Adjust The Test Height Required By The Support Plate According To Point 3 Of The Above Adjustment Method And Remove The Reference Scale.
  5. Place The Tied Standard Weight On The Support Plate, Press The Discharger Handle So That The Weight Falls And Exerts A Kick Yank Pull Force On The Sample Plug To Check Whether The Plug Is Damaged To Complete A Test.
Used for:

This Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is suitable for all kinds of wire with for arbitrary angle kick yank pull test. It can test the wire kick yank pull strength, ensuring the quality and durability of the USB plug.

Warranty: 1 Year
Dimensions: 600mm~750mm
Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm 1

Customization:

INFINITY IZ1001 Series Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) Customization Service

Brand Name: INFINITY
Model Number: IZ1001 Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets / month


Product Description:

The INFINITY IZ1001 Series Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is a top-of-the-line device designed specifically for testing the strength and durability of wires. It is suitable for all kinds of wires and can perform arbitrary angle kick yank pull tests. With its advanced technology and precision engineering, this tester ensures accurate and reliable results every time.

The Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is also known as the Wire KICK Extension Detector or the Wire Tension Kick Yank Tester. It is a versatile instrument that can be used for a variety of applications, making it an essential tool for any quality control process.


Key Features:
  • Fixture Test angles: 0°, 45°, 90° adjustable
  • Color: OEM or as silver grey color in picture
  • Model: RS-5510A
  • Warranty: 1 year

Used for:

The INFINITY Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is used for testing the kick yank pull strength on wires. It is an essential tool for ensuring the quality and durability of wires and their connectors.

This tester is suitable for a wide range of industries, including electronics, telecommunications, and automotive, where wires and connectors are used extensively.


Order Now:

To get your hands on the Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester), place your order now and experience the precision and reliability of our top-of-the-line testing equipment.

For more information, please contact us at [insert contact information]. Our team will be happy to assist you with your inquiries and provide you with a competitive quote.

Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm 2

Packing and Shipping:

Packaging and Shipping for Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester)

The Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) is carefully packaged for safe shipping and delivery. Each unit is individually wrapped in protective materials and placed in a sturdy cardboard box to prevent damage during transit.

Our packaging is designed to meet international shipping standards and ensure the product arrives in perfect condition. We also provide custom packaging options for bulk orders.



Once your order is placed, our team will carefully pack your Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) and ship it to your desired location. We offer multiple shipping options to fit your needs, such as standard ground shipping or expedited delivery.

For international orders, we ensure all necessary customs documentation is included to facilitate a smooth delivery process. Our shipping team is experienced in handling international shipments and will ensure your order arrives on time and in excellent condition.



Upon delivery, please inspect your Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester) for any potential damage during transit. If you encounter any issues, please contact our customer service team immediately for assistance.

Thank you for choosing the Wire Cable Abrupt Pull Tester (Wire Tension Kick Yank Tester). We are dedicated to providing high-quality products and ensuring a seamless shipping experience for our customers.

Wire Abrupt Pull Tester Stainless Steel Abrupt Pull Testing Equipment For Dimensions 600mm-750mm 3

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name is INFINITY.
  • Q: What is the model number of this product?
  • A: The model number is IZ1001 Series.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: What certifications does this product have?
  • A: This product is CE and ISO certified.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity is 1 set.
  • Q: Is the price negotiable for this product?
  • A: Yes, the price is negotiable.
  • Q: What is the packaging for this product?
  • A: The packaging includes a clear sheet, sponge, and wood carton.
  • Q: How long is the delivery time for this product?
  • A: The delivery time is 20-30 days after the order is confirmed.
  • Q: What are the payment terms for this product?
  • A: The payment terms include TT, PayPal, Moneygram, and other options.
  • Q: What is the supply ability for this product?
  • A: The supply ability is 200 sets per month.
