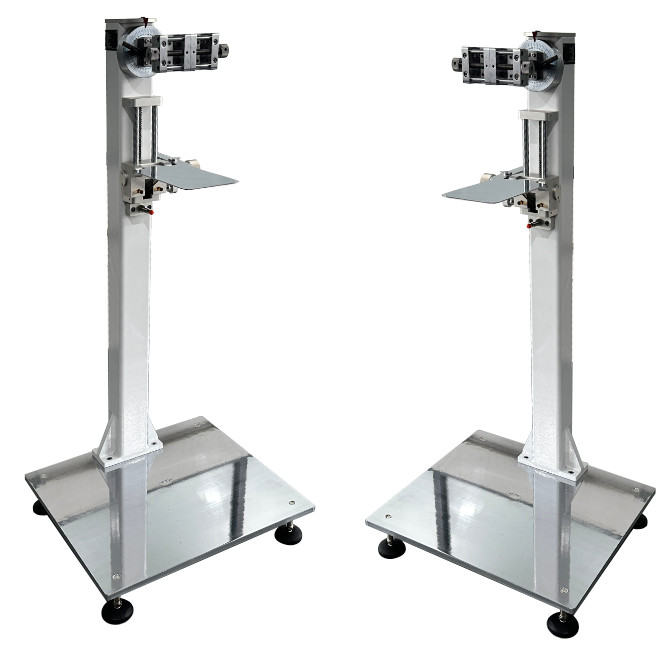

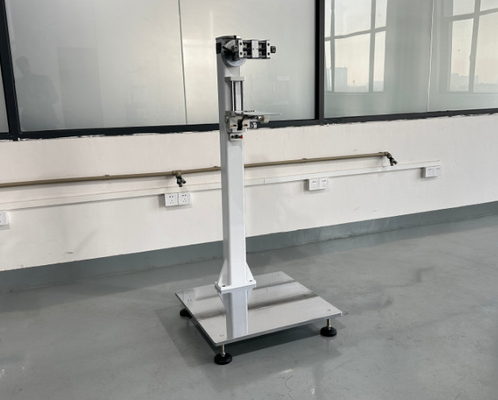

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles
High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles
High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles
Product Details:
Place of Origin: MADE IN CHINA
Brand Name: INFINITY
Certification: CE ISO
Model Number: IZ1001 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Standard Weights: 350g、1000g、1100g、4500g Dimensions: 600mm~750mm
Test Steps: 1. Adjust The Required Test Angle According To Point 1 Of The Above Adjustment Method. (The Upper And Lower Angle Of The Fixture Can Be Adjusted If Necessary) 2. Place The Sample In The Fixture And Turn The Screws To Grip The Sample. 3. The Standard Weight Color: OEM Or As Silver Grey Color In Picture
Product Type: Testing Equipment Application: USB Wire & Cable Industry
Used For: It Is Suitable For All Kinds Of Wire With USB Plug For Arbitrary Angle Kick Yank Pull Test To Test The USB Plug Of Wire Kick Yank Pull Strength Dimension: 650x650x1380mm
High Light:

90° Adjustable Wire Pull Tester

,

45° Adjustable Wire Pull Tester

High-Performance Wire Abrupt Pull Kick Yank Tester new 0° 45° 90° Adjustable Fixture Test Angles

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles 0

Product Description:

Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester)

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is a high-quality instrument used for measuring and testing the tensile strength of wires. This new version is designed with improved features and accuracy, making it an essential tool for various industries such as electrical, automotive, and construction.

Dimensions

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) has a dimension range of 600mm to 750mm, making it a compact and versatile device that can be easily transported and stored. This feature makes it suitable for both laboratory and field use.

Measurement Range

The measurement range of the Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is 0~360°, providing accurate readings of the wire's tensile strength. This range is wide enough to cover various wire sizes and types, making it a versatile instrument for different applications.

Material

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is made of high-quality stainless steel, ensuring durability, stability, and precision during testing. The use of this material also makes the instrument resistant to corrosion, making it suitable for use in different environments.

Warranty

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) comes with a 1-year warranty, providing customers with peace of mind and assurance of the instrument's quality and performance.

Test Fixture Rotation Angle Adjustment

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) has a unique feature that allows for easy and precise adjustment of the test fixture rotation angle. By rotating the disc, users can adjust the angle of the test fixture from 0 to 360º, providing flexibility and convenience during testing.

Electricity KICK Tensile Yank

This instrument is specifically designed to measure the electricity KICK tensile yank of wires accurately. It provides reliable and consistent results, making it a valuable tool in quality control and product development.

Electric Yank Pull Measure

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is also known as an electric yank pull measure instrument. It uses an electric motor to apply a pulling force to the wire, and the results are displayed on an easy-to-read LCD screen. This feature makes it user-friendly and suitable for both experienced technicians and beginners.

Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester)

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is a specialized instrument for testing the tensile strength of wires. Its accuracy, durability, and versatility make it an essential tool for wire manufacturers, electricians, and other professionals who require precise measurements of wire strength.

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles 1

Applications:

Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) - INFINITY

Electric Yank Pull Measure, Cable KICK Pull Yank Detector, Wire Tension KICK Yank Tester - test the strength of USB plug for arbitrary angle kick yank pull

Product Description:

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is a state-of-the-art product from INFINITY, designed to accurately measure the kick yank pull strength of USB plugs on various types of wires. This product is suitable for any wire with a USB plug and can perform kick yank pull tests at arbitrary angles. With the ability to accurately measure the tension and strength of the wires, this tester is essential for quality control and product development in the electronics industry.

Product Attributes:
  • Brand Name: INFINITY
  • Model Number: IZ1001 Series
  • Place of Origin: MADE IN CHINA
  • Certification: CE, ISO
  • Minimum Order Quantity: 1
  • Price: Negotiate
  • Packaging Details: Clear sheet+sponge+wood carton
  • Delivery Time: 20-30 days after order confirmed
  • Payment Terms: TT, PAYPAL, Moneygram, and more
  • Supply Ability: 200 sets / month
  • Standard weights: 350g, 1000g, 1100g, 4500g
  • Dimensions: 600mm~750mm
  • Measurement Range: 0~360°
  • Model No. RS-5510A
    Rotation Angle: 0-360° adjustable
    Tilt Range: 0°,45°,90°
    : Test Height 600~750mm
    Standard Weights: 350g,1000g,1100g,4500g
    Dimension(WxDxH): 650x650x1380mm
    Weight: Around 130kgs
Product Application and Scenarios:

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is ideal for testing the strength and durability on various types of wires. It can be used in a variety of scenarios, including:

  • Electronics manufacturing plants for quality control and product development
  • Research and development labs for testing the strength of new wire materials and designs
  • Retail stores for testing the quality of USB cables before selling to customers
  • Repair shops for determining the strength of USB plugs on damaged wires
Test Steps:
  1. Adjust the required test angle according to point 1 of the above adjustment method. (The upper and lower angle of the fixture can be adjusted if necessary)
  2. Place the sample in the fixture and turn the screws to grip the sample.
  3. The standard weight is tied to the sample connection line, and the height of the weight is measured with a reference scale.
  4. Lift the support plate manually so that the rake handle is fastened to the support plate. Adjust the test height required by the support plate according to point 3 of the above adjustment method and remove the reference scale.
  5. Place the tied standard weight on the support plate, press the discharger handle so that the weight falls and exerts a kick yank pull force on the sample plug to check whether the plug is damaged to complete a test.
Product Features:
  • Accurate measurement of kick yank pull strength at arbitrary angles
  • Quick and easy to use, with adjustable test height and angles
  • Can test a wide range of wire sizes and weights
  • Durable and reliable for long-term use
  • Comes with various standard weights for different testing needs
  • Highly efficient and cost-effective
Ordering Information:
Payment Terms:

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) can be purchased using various payment methods, including:

  • TT (Telegraphic Transfer)
  • PayPal
  • Moneygram
  • And more
Technical Specifications:
Standard Weights Dimensions Measurement Range Test Steps
350g, 1000g, 1100g, 4500g 600mm~750mm 0~360°

1. Adjust The Required Test Angle According To Point 1 Of The Above Adjustment Method. (The Upper And Lower Angle Of The Fixture Can Be Adjusted If Necessary)



2. Place The Sample In The Fixture And Turn The Screws To Grip The Sample.



3. The Standard Weight Is Tied To The Sample Connection Line, And The Height Of The Weight Is Measured With A Reference Scale.



4. Lift The Support Plate Manually So That The Rake Handle Is Fastened To The Support Plate. Adjust The Test Height Required By The Support Plate According To Point 3 Of The Above Adjustment Method And Remove The Reference Scale.



5. Place The Tied Standard Weight On The Support Plate, Press The Discharger Handle So That The Weight Falls And Exerts A Kick Yank Pull Force On The Sample Plug To Check Whether The Plug Is Damaged To Complete A Test.

Supply Ability:

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) has a supply ability of 200 sets per month, ensuring that our customers can receive their orders in a timely manner.



Customization:

Customized Service for Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester)
  • Brand Name: INFINITY
  • Model Number: IZ1001 Series
  • Place of Origin: MADE IN CHINA
  • Certification: CE ISO
  • Minimum Order Quantity: 1
  • Price: Negotiate
  • Packaging Details: Clear sheet+sponge+wood carton
  • Delivery Time: 20-30 days after order confirmed
  • Payment Terms: TT PAYPAL Moneygram and so on
  • Supply Ability: 200 sets / month
  • Warranty: 1 Year
  • Model: RS-5510A
  • Dimensions: 600mm~750mm
  • Weight: Around 130kgs
  • Application:  Wire & Cable Industry

This Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester), also known as Electric Yank Pull Measure or Cable KICK Pull Yank Detector, is a high-quality equipment designed to accurately measure the tensile strength of wires and cables in the USB Wire & Cable Industry. With its precise measurement capabilities and durable construction, this tester is a crucial tool for ensuring the safety and reliability of your products.

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles 2

Packing and Shipping:

Packaging and Shipping for Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester)

Our Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is carefully packaged and shipped to ensure its safe arrival at your doorstep. We understand the importance of quality and reliability, which is why we take extra care in our packaging and shipping process.

Packaging

The Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is packaged in a sturdy and durable box to protect it from any external damage during transportation. The box is also designed to withstand any rough handling and ensure that the product remains intact.

Inside the box, the Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) is securely placed in a foam insert to prevent any movement or damage during transit. The foam insert is specifically designed to fit the product perfectly and provide maximum protection.

In addition, the product is wrapped in a protective plastic wrap to protect it from any scratches or dust. This ensures that the product reaches you in pristine condition.

Shipping

We offer worldwide shipping for our Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester). Our shipping partners are carefully selected to ensure timely and secure delivery of the product.

Once your order is confirmed, we will process and ship it within 1-3 business days. You will receive a tracking number via email to track your package's journey until it reaches you.

We also offer expedited shipping options for urgent orders. Please contact our customer service team for more information and pricing.

Rest assured, we will do our best to ensure that your Wire Cable Abrupt Pull Tester(Wire Tension Kick Yank Tester) reaches you in perfect condition and within the estimated delivery time.

High Performance Wire Abrupt Pull Tester 0° 45° 90° Adjustable Fixture Test Angles 3

FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is INFINITY.
  • Q: What is the model number of this product?
  • A: The model number of this product is IZ1001 Series.
  • Q: Where is this product made?
  • A: This product is made in China.
  • Q: Is this product certified?
  • A: Yes, this product is certified with CE and ISO.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 set.
  • Q: Can the price for this product be negotiated?
  • A: Yes, the price for this product can be negotiated.
  • Q: What is the packaging for this product?
  • A: The packaging for this product includes clear sheet, sponge, and wood carton.
  • Q: How long will it take to receive this product after placing an order?
  • A: It will take 20-30 days to receive this product after the order is confirmed.
  • Q: What are the accepted payment terms for this product?
  • A: The accepted payment terms for this product include TT, PayPal, Moneygram, and other options.
  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 200 sets per month.
