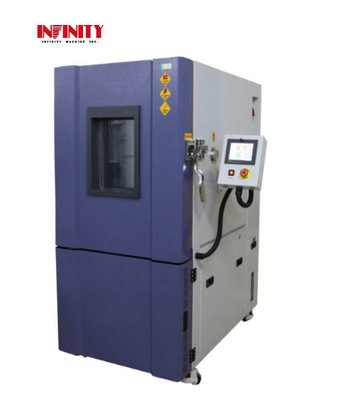

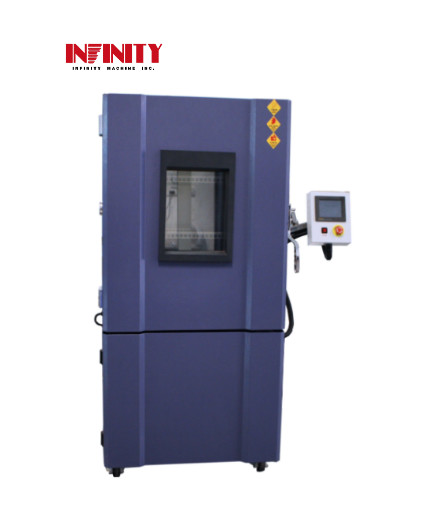

High Configuration Low Humidity Constant Temperature Humidity Chamber 5 ~ 98 %

High Configuration Low Humidity Constant Temperature Humidity Chamber

Model: ITM Series



Purpose:



In addition to testing whether the adaptability and characteristics of the product had been changed under the general conditions of temperature and humidity combination (high-low temperature operation & storage, temperature cycling, high temperature and high humidity or moisture condensation test) by simulatable products, low humidity and constant temperature-humidity test chamber can also test whether the crazing and breakage of the product would happen under the conditions of low temperature and low humidity, high temperature and low humidity, high temperature and high humidity or low temperature and low humidity.



Furthermore, the static content in air under the low humidity condition is many times more than the general condition, and it is said that most damage of the electronic components is caused by static.



Meeting the requirements of international specification test (IEC, JIS, GB, MIL...) to ensure the consistency of international measurement programs (including testing procedures, conditions and methods) to avoid cognitive differences and reduce the measurement uncertainties.



Features:



1. An effective low humidity control range of 10℃/5%RH.

2. Relevant low temperature and low humidity tests can be performed.

3. A technology of long-time operation and radiating under the condition of ultra-low humidity without frosting.

4. Adopting the fast Swedish dehumidification, Munters dehumidifier is more suitable for using under low humidity environment. It is equipped with

    a sealed desiccant wheel made of heat-resisting material. Such structure not only ensures the dehumidification, the regeneration and the precise

    balance of heat recycle airflow, but also effectively reduces the energy consumption.





5. Adopt the Finland VAISALA electronic humidity sensor to measure the humidity change, which is reliable and highly accurate.







6. Several protection measures of over-temperature protection, over-pressure protection, water-lack protection and phase-lack protection.

7. Warning measures of water-lack warning for machine water storage tank and dry burning-resistant warning for humidifier.

8. SD card digital recorders are provided for copying the test data or test curves.

9. iOs APP remote monitoring function allows you to monitor the operation of the machine by mobile phone even when you are on a business trip.







Test specification:



a. Specification required for condensation and non-condensation tests can be performed.

b. Technology of temperature and humidity synchronization slope control of test sample non-condensation test.

c. Drying phase test conditions before condensation test can be performed.



Test condition:



5%RH: 10℃/5%RH, 20℃/5%RH, 50℃/5%RH
10%RH: 10℃/10%RH, 15℃/10%RH, 25℃/10%RH, 30℃/10%RH, 65℃/10%RH
15%RH: 10℃/15%RH
20%RH: 20℃/20%RH, 85℃/20%RH, 75℃/20%RH, 65℃/20%RH

40%RH: 25℃/40%RH

90%RH: 65℃/90%RH



Test condition:





Specification:



Model	ITM-408L	ITM-800L
Interior size (mm)	W800xH850xD600	W1000×H1000×D800
Exterior size (mm)	W1000xH1950xD1900	W1200xH1900xD2100
Power supply	AC380V 5Ø 10kW	AC380V 5Ø 12kW
Humidity range	5 ~ 98 %
Equilibrium of temp.  distribution	±1.0℃(-40℃~100℃) /±1.5℃(-40.0℃~-70℃,100.0℃~150℃)
Equilibrium of humid.  distribution	±5 %RH (center point)
Temp. accuracy	± 0.2 ℃
Humid. accuracy	±2 %RH
Temp. resolution	± 0.01 ℃
Humid. resolution	± 0.1 %
Heating up time	45minutes for 25℃~150℃, the whole process is average nonlinear, no-load
Cooling down time	50minutes for 20℃~-40℃, the whole process is average nonlinear, no-load
Noise	≤70dB(A)
Meeting standard	GB/T2423.1-2008(IEC60068-2-1:2007);  GB/T2423.2-2008(IEC60068-2-2:2007);  GJB150.3-1986;  CJB150..4-1986;  GB/T2423.3-2006(IEC60068-2-78:2007)GB/T2423.4-2;008(IEC60068-2-  30:2005);  GB/T2423.34-2005;

Our workshop:



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

• We provide technical advice and assistance, from initial inquiry to product delivery.
• We offer a variety of customized services to fit your specific needs.
• We offer installation and set-up services.
• We offer training and maintenance services.
• We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Packing and Shipping:

Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.





FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
