Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456

Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456

Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456
Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456
Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456
Product Details:
Place of Origin: China
Brand Name: Infinity
Certification: CE,ISO
Model Number: IE51
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD1000~100000 PC
Packaging Details: WOOD PACK
Delivery Time: 15-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: IE51 IPX123456 Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen Inner Box Size:(W*D*H): 900*900*1050mm
External Dimensions:(W*D*H): 1350*3700*1920mm Turntable Diameter:: ¢600mm
Testing Time:: 0-999 Min Total Equipment Mass Fluctuation: About 300kg
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Power Supply: AC220V 15A Or Specified By User Water Way: Atered By Itself While Lack Of Water
Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam. Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability
Spray Material: Transparent PVC SSR: Precisely Digital Thermal Controller With Spray Protection System.
Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

Turntable Nozzle Water Spray Test Chamber

,

Touch Screen Water Spray Test Chamber

Customized IE51 IPX123456 Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen

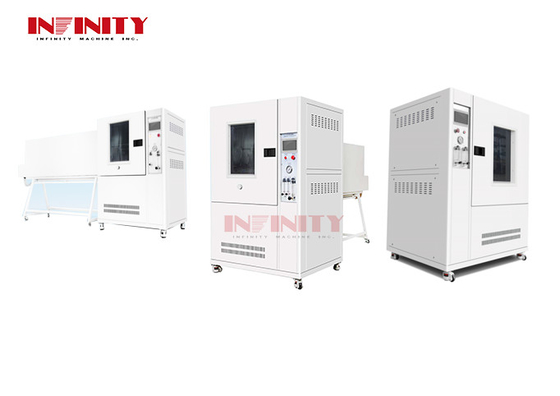

Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456 0

Product Description:

Application areas:

IE51 IPX123456 Comprehensive spray test chamber is used for waterproof  test of Outdoor lamps, household appliances, auto parts and other electronic and electrical products.



We can provide custom design service for the spray tester with different waterproof grade for different product,  the max waterproof grade we can do is IPX8.

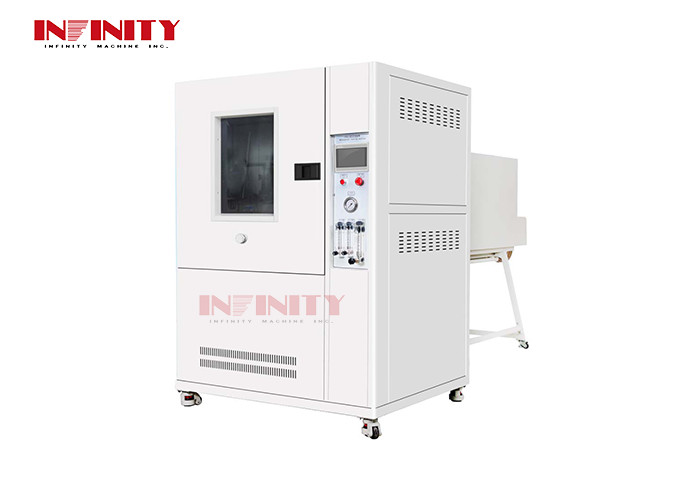

Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456 1



Equipment function:

The main function of Water Spray Chamber is to use it for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products under simulated rain and splashing water climate conditions to affect the physical and physical properties of the products. Other related performance tests. After testing, verification is used to determine whether the performance of the product meets the requirements, so as to facilitate product design, improvement, verification and factory inspection.

x


Implementation standards:



  • Comply with IEC60529:1989 +A1:1999 +A2: 2013 "Degrees of protection provided by enclosures (IP Code)",
  • GB4208-2017 "Enclosure Protection Level (IP Code)" Clauses 14.2.1, 14.2.2, 14.2.3, 14.2.4 and the requirements of Figure 3 and Figure 4.

Key Features:
  1. Rain Test Chamber is Suitable for IPX1, IPX2, IPX3, IPX4 ,IPX5,IPX6 waterproof grade testing of products.
  2. The shell is made of domestic high-quality steel plates, and the surface is spray-painted, making it beautiful and durable.
  3. The inner box, turntable, swing tube, etc. are all made of SUS304# stainless steel plates to ensure that they will not rust after long-term use.
  4. Box structure; built-in water tank, recycled water; automatic control of water inflow, and low water level alarm detection
  5. There is a transparent observation window (made of tempered glass) on the door, and LED lighting is installed inside the box to facilitate observation of internal testing conditions.
  6.  IPX1, 2: The drip box adopts vacuum design and is made of stainless steel; the nozzle contact position adopts a brass cone design to facilitate the installation of water spray nozzles.
  7. IPX1, 2: It has a compressed air drying function. After the test is completed, the excess water in the drip box can be drained out to avoid water accumulation and scaling that will block the pinholes. (Note: The user needs to provide air source)
  8. IPX3, 4: The swing tube is driven by a domestic high-quality stepper motor. The speed and angle of the swing tube are accurately adjustable and there is no out-of-step problem (out of step: it will cause the swing tube to move abnormally and hit the middle turntable axis, causing damage to the equipment)
  9. IPX 5, 6: Manufactured in accordance with the rules of IEC 60529 (as shown below):
    Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456 2
  10. Filtration measures: Standard high-precision filter can effectively filter impurities in tap water; the filter element can be replaced regularly.
  11. Turntable drive: Using domestic high-quality stepper motors, the speed and angle can be set (adjustable) on the touch screen, accurately and steplessly adjustable within the standard range, and can automatically control forward and reverse rotation (forward and reverse rotation: suitable for belts The sample is powered on for testing to prevent winding).
  12. The test chamber is equipped with a sample power socket (AC220, 10A). The power on and off time of the sample power can be controlled by the program: power outage (0-999min) - power on (0-999min) - power outage (0-999min), which is suitable for samples during testing The power needs to be turned on and off.
  13. The test time can be set on the touch screen, and the setting range is: 0-999min (adjustable).
  14. The core control system uses a 7-inch touch screen + Panasonic PLC. The electrical components use imported brands such as LS and Omron. The wiring technology meets the national standards. The electrical board layout is reasonable, the wiring is firm, and the markings are clear.
  15. The base of the equipment is equipped with 4 movable casters with brakes for easy movement and fixation.
  16. The chassis is equipped with an embedded spare parts box, which contains commonly used spare parts (such as hexagonal screwdrivers, filter elements, needles, etc.) for the convenience of users to keep and use.





Specifications:



Parameter Value
Inner box size:(W*D*H) 900*900*1050mm
External dimensions:(W*D*H)

1350*3700*1920mm

Turntable diameter:

600mm

Maximum load-bearing capacity of turntable: 50KG
Turntable lifting height: 450-750mm(Height of table top from bottom)
The turntable can be tilted: 0° or 15°(horizontal direction)
Turntable speed: 1 -5r/min(precisely adjustable)
Turntable rotation method:

Always forward rotation /

alternating forward and reverse rotation /

intermittent rotation

Flow adjustment method: Manual adjustment is achieved using a flow meter with an adjustment panel
testing time: 0-999 min
Total equipment mass About 300kg
IPX1,2 Section-Technical Parameters
Drip board area: 600*600mm
IPX12 Nozzle hole size: diameter0.4mm
Distance between drip holes: 20*20 mm
Rainfall: IPX1=1mm/min;IPX2=3mm/min
Raindrop board lifting method: Not liftable (fixed)
IPX3,4 Section-Technical Parameters
Swing tube radius size: R400mm
R400 Swing tube flow: 1.1L/min±5%(IPX3);1.8L/min±5%(IPX4)
Water spray hole size: 0.4mm
Spray hole spacing:: 50mm
Swing tube inner diameter: 15mm
Swing tube angle: 120º(IPX3),350º(IPX4)or custom settings
swing tube swing speed:

240°back and forth 4S, 720°back and forth12S

(precise control) or customized

Water, electricity and gas parameters
Power supply for test samples 220V
Device power/power 220V 50Hz 3.0KW(or specified)
Security protection function Leakage protection, water shortage protection, short circuit protection
Water source requirements 1. Users are required to configure a water source for the equipment at the installation site, with the water pressure not less than 0.2Mpa, and install a 4-point faucet. The faucet should be no more than 2 meters away from the equipment.
IPX5,6 Section-Technical Parameters
IPX5 water spray aperture:

6.3mm

IPX6 water spray aperture:

12.5mm

IPX5 water spray flow:

12.5±0.625 L/min

IPX6 water spray flow:

100±5 L/min

Water pressure (Mpa): adjustable
Spray distance: 2.5 meters (distance between nozzle and turntable center)
Spray gun swing drive:

stepper motor





Inner box pictures:



The swing pipe could be make as your size.

Customized Integrate Turntable Nozzle Water Spray Test Chamber Touch Screen IE51 IPX123456 3

Customization:

1.Customized Service for Rain Test Chamber, we can make the waterproof grade for IPX1,2,3,4,5,6, even IPX7,X8.
2. The swing pipe of the water spray could be customized, we can make different diameter for you.
3.  There is 4 grade of our machine,
      -IPX1234 is for rain drop testing, simulating drizzling rain.
      -IPX5,6 is  for strong water spray, simulating rainstorm.
      -IPX123456  is for Comprehensive spray.
      -IPX7,8 is for water Diving level, usually is for high quality electronic equipment, such as mobile phone,camara etc.
