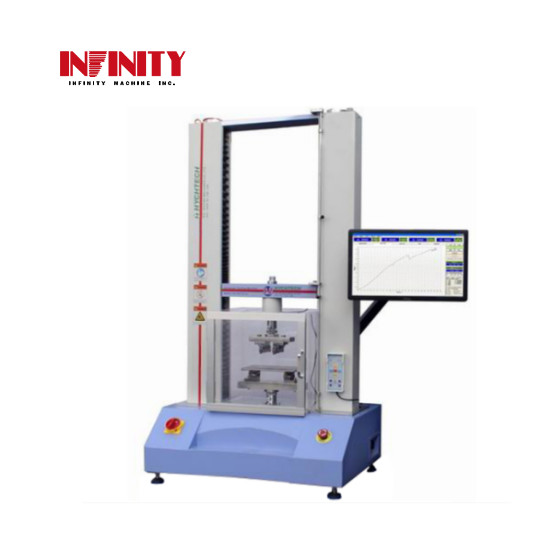

Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop

Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop

  • Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop
  • Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop
Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8000SA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max. Capacity: 10KN Max. Stroke: 650mm
Effective Width: 400mm / 500mm (optional) Load Resolution: 1/200,000
Load Accuracy: ±0.5%F.S Main Unit Weight: 235 Kg
Dimension: 800x600x1972mm Power Supply: AC220V 10A Or Specified By User
High Light:

bend test equipment

,

flex tester machines


Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop



Model: RS-8000SA


Purpose:

The machine is suitable for 3, 4-points bending test of tempered glass, and also tensile, compression, flexural, peel, shear, tear, bursting, , fatigue tests for wire, metal foil, sheet metal and metal tape, rubber, plastic, air / sea foam, waterproof materials, wire and cable, textile fabrics, net rope, non-woven material by equipped with the different fixtures.

Typical applications:

Glass 3-points bending test
Glass 4-points bending test
Glass compressive strength test
Metal / sheet tensile test
Rubber / plastic tensile test
Metal / plastic bending test
Tape 900/1800 peel strength test
FPC pull test
Beverage packaging compression / bursting force test

The product holding force (Constant) Test
Low cycle fatigue (loop) test
Metal timber three-point bending test

Environmental plywood adhesive force test
The composite woven packaging with strength test



Applications:



Glass, metal, ceramic, composite, tape, Food and medical equipment, paper, plastic, rubber, communication.

Specification:



 Model  RS-8000SA-Glass
 Max. capacity  10kN(1000kgf)
 Unit (switchable)  N, KN, Kgf, Lbf
 Load resolution  1/200,000
 Load accuracy  ±0.5%F.S
 Effective Load range  0.25%~100%F.S
 Max. stroke (exclude the grips)  650mm
 Effective width  400mm , 500mm (optional)
 Test speed  0.001~500mm/min
 Over-load protection  Auto step into protection when the load is 10% higher than  the max capacity of loadcell.
 Main unit dimension (WxDxH)  800x600x1972mm
 Main unit weight  235 Kg
 Power Supply  AC220V 10A or specified by user


Features:

1. High-precision:
Use Panasonic AC servo motor to drive, and ABBA high precision ball screw for transmission, with high precision explosion-proof LOADCELL from U.S. TRANSCELL, the force accuracy can be ± 0.25%, the displacement accuracy is up to 0.001mm.

2. High intelligence:
Automatically determine the fracture, automatic return, the force units are free to switch languages switchable: Simplified / Traditional Chinese, English. Load - displacement, load - time, displacement - time stress - strain, strain - time, stress - time multi-curve analysis.

3. Test report:
Statements developing is based the Crystal Reports10.0 version, can automatically calculate the strength, elastic modulus E RP0.2 ReL, ReH, elongation, content can be freely altered ,curve automatically generated. Can be exported to Excel, PDF, HTML and other formats.


4. Language of software: English



Fixture:

Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop 0



Test software and report:



Glass Compressive Bending Test Machine 3 / 4 Points with Closed Loop 1
