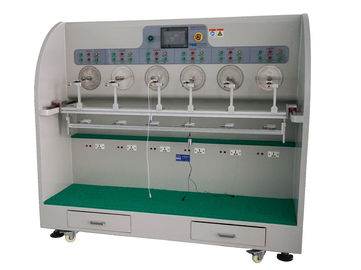

High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line

High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line

    • High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line
    • High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line
  • High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line

    Product Details:

    Place of Origin: Made in China
    Brand Name: Infinity Machine
    Certification: CE, ISO
    Model Number: RS-8116-6B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard export wooden case with operation manual and video inside.
    Delivery Time: Shipped in 15 days after payment
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200 sets per month
    Contact Now
    Detailed Product Description
    Test Amount: 6 PCS Control System: OMRON+PLC
    Driving System: Servo Motor Test Speed: 1~60rpm±0.5rpm
    Test Angle: 0~±180° Or Angle Not Limited Dimension: W1820*D820*H1600
    Weight: 450kg Power: AC220V 50Hz 10A
    High Light:

    bend test equipment

    ,

    flex tester machines



    High Precision Cable Bending Testing Machine/Cable Testing Equipment for Headphone Line or USB Line



    Model: RS-8116-6B



    Purpose:



    It is suitable for bending resistance test on headphone cable, USB cable, multicore cable conductor,flat cable and signal line,etc. The test method is as follows:Firstly, clamp one end of the wire rod and fasten it to the rotation clamp. Then have it make a horizontal rotation with hanging load to evaluate whether wire rod conduction is good after numerous test cycles.



    Specification:



     Model  RS-8116-6B
     Control system   It adopts Japanese OMRON ® touch screen and  MTTSUBISHI ® PLC, and dach station works independently.
     Impedance test module  It is equipped with impedance test module and Taiwan's THINGER color touch screen.
     Drive  Six Japanese Panasonic ® AC servo motor
     Reducer Six Japanese Shimpo ® planctary for reducer
     Test speed  1~60rpm±0.5rpm
     Test angle range  Commonly 0~±95° or 0~±180°, rotation angle of concentric jig is not limited.
     The least angle display  0.1°
     Angle test accuracy  0.2°
     Test cycles range  1~999,999 cycles
     Batch pause interval  1~10 minutes
     Diameter of rotary disk  ∅210mm
     Weights  50g, 100g,  250g, 300g, 500g each 6pcs
     Main unit dimension  W1820*D820*H1600mm
     Control box dimension  W720*D500*H1700mm
     Weight of machine  450kg
     Power  AC220V 50Hz 10A



    Features:



    1.There are totally 6 slots, each of which adopts Japanese Panasonic® AC servo motor drive. They are positioned with high precision, with low noise and can be used for a long time. The test angle is ±1°. Eacg station adopts Japanese  SHIMPO® planetary gear for slowing down with highly precise positioning.



     2.It adopts Japanese OMRON® color touch screen controller as programming inputting and Japanese MITSUBISHI® PLC as control. There  are Chinese and English interface which is easy for you to operate.



     3.Test conditions are all set in the touch screen.(angle set, test speed, test cycles,finished test cycles, rotation interval time and certain minutes pause after certain test cycles.)



     4.It is equipped with inpedance test module and adopts color touch screen to conduct online monitoring of conduction impedance.You can set the upper limit and lower limit impedance value of each station in the touch screen. Once the conduction impedance value exceeds set value in the test, the red light in the touch screen will send alarm and current station will stop testing.
