| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-6300H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Control Way: | LCD+PLC | Motor: | Stepping Motor |
|---|---|---|---|
| Test Load: | 0~1000g | Test Stroke: | 20~100mm |
| Dimension: | 450X380X700mm | Power: | AC220V 50Hz 5A Or Specified By User |
| Weight: | 45kg | Test Cycle: | 1~999,999times (cycle) |
| Highlight: | flex tester machines,cable testing machine |
||
Touch Screen Flexural Strength Testing Machine Stepping PLC Controller
Model: RS-6300H
Application:
Apply for bending test of FPC; such as the bending test, bending life-span of FPC used in mobile phone, PDA, note-book, electronic dictionary and electronic products.
Features:
Adopt touch screen and PLC controller,english interface with easy operation and long life time.
Adopt servo motor driver, so that it is with precise location, low angle deviation. It can operate in high speed and with durable use. It can operate FPC conductive test.
Specification:
| Model | RS-6300H |
| Control way | LCD+PLC |
| Motor | Stepping motor |
| Test load | 0~1000g |
| Test stroke | 20~100mm |
| FPC width | 5~100mm(max) |
| Test speed | 10~150times/min |
| Test cycle | 1~999,999times (cycle) |
| Bending R (angle) | 0.38, 0.8, 1.2, 2 (replaceable) |
| Bending angle | 0~180°(any angle) |
| Dimension (WxDxH) | 450X380X700mm |
| Weight | 45kg |
| Power | AC220V 50Hz 5A or specified by user |

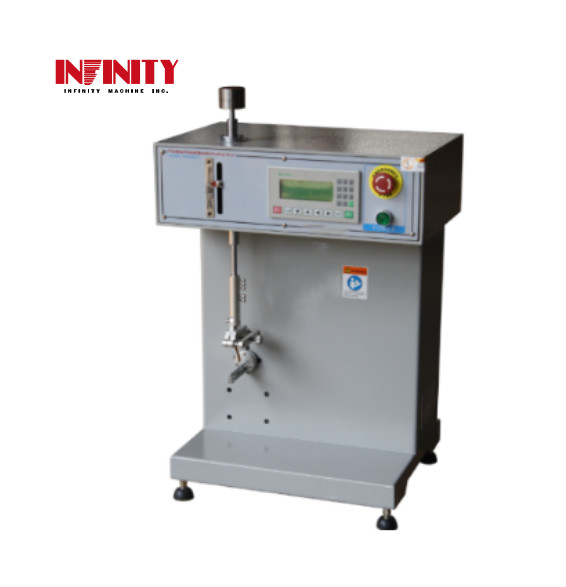

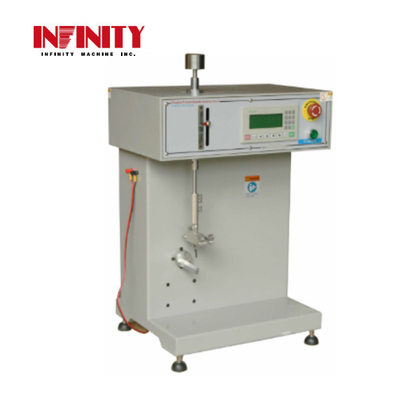

Picture:
