Durability Digital Compression Testing Machine FPC Bending Large Stroke

Durability Digital Compression Testing Machine FPC Bending Large Stroke

  • Durability Digital Compression Testing Machine FPC Bending Large Stroke
Durability Digital Compression Testing Machine FPC Bending Large Stroke
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Speed: 30~120 Times/min Test Stroke: 30~100mm
Adjustable Bending Angle: 45°，90°，135°，180° Weight: 45kg
Dimension: 880x300x320mm Power: AC220V 50Hz 3A Or Specified By User
Highlight:

bend test equipment

,

flex tester machines

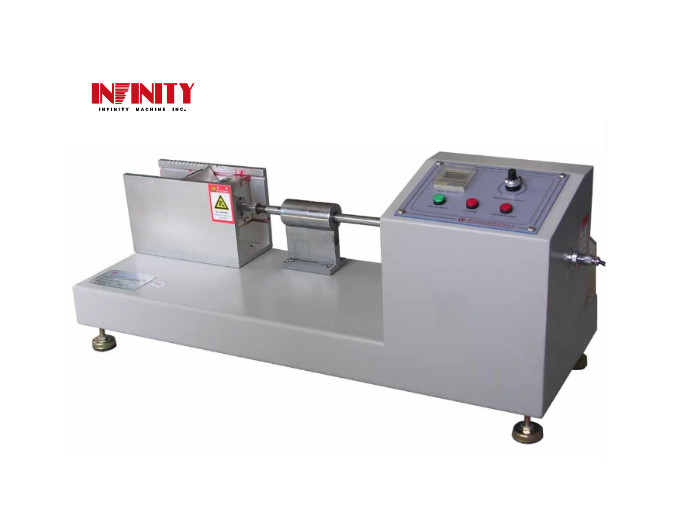

Durability Test Digital Compression Testing Machine FPC Bending Large Stroke



Model: RS-6310



Application:



This tester is used for bending test of FPC, like the FPC used in mobile phone, PDA, note-book, electronic dictionary, to check the FPC bending durability by repeating bending testing.



Features:



This tester is with adjustable testing speed and adjustable bending angle, automatic counting, automatically stop when reaching the setting testing cycles.

Durability Digital Compression Testing Machine FPC Bending Large Stroke 0

Specification:



 Model  RS-6310
 Test speed  30~120 times/min
 Test stroke  30~100mm
 Adjustable bending angle  45°,90°,135°,180°
 Testing cycle  1~999,999times (cycle)
 Dimension (WxDxH)  880x300x320mm
 Weight  45kg
 Power supply  AC220V 50Hz 3A or specified by user

Tag:

bend test equipment,

flex tester machines,

cable testing machine
