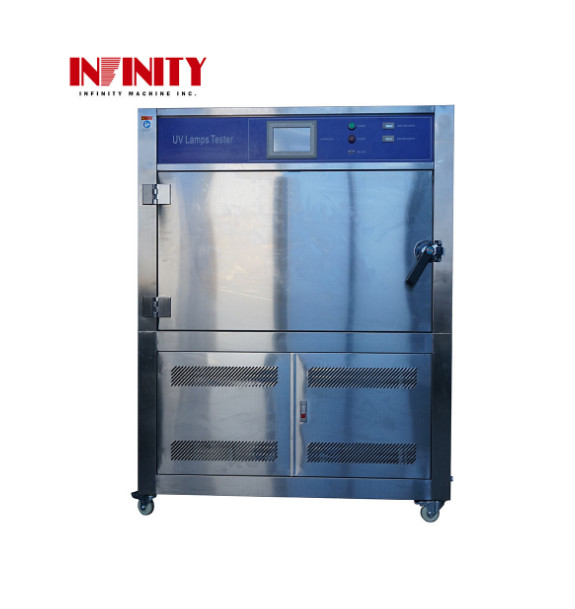

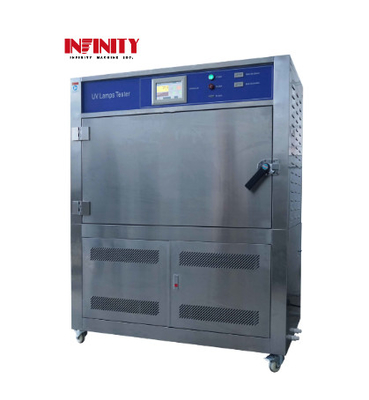

UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW

UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW

  • UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW
  • UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW
UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Temp-range: RT+10℃~70℃ Humid-range: 90% RH ~98% RH
Lamps Type: UV-A, 40W / UV-B, 40W Standard Test Shelf: 75x300mm(3x12”)/23 Or 100x300mm(4x12”)/15
Lamps Amount: 8 Sets Nozzle: 12 Pieces
Light Size: W450xH260mm Power Supply: AC220V 15A Or Specified By User
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

benchtop environmental chamber

UV Light Testing Equipment



Purpose:



UV Lamp tester adopt fluorescent lamp simulating the UV spectrum of sun shine, combined with temperature control, humidity system. It can simulates various of conditions such as temperature, shining strength and humidity to evaluate the breakage, peeling, pulverization, oxidization of the specimen.



Standard:



ASTM D4329,D499,D4587,D5208,G154,G53, ISO 4892-3,ISO 11507, EN 534, EN 1062-4, BS 2782, JIS D0205, SAE J2020



Features:



This machine provides good UV simulation, low maintance cost, easy operation. It runs itself by programme automatically with stable light.



Specification:



 Temperature range  RT+10℃~70℃
 Humidity range  90% RH ~98% RH
 Distance between lamps  70±2mm
 Distance between specimen and lamp  50±2mm
 Lamps type  UV-A, 40W / UV-B, 40W
 UV light wavelength  315~400nm/280~315nm
 Standard test shelf  75x300mm(3x12”)/23 or 100x300mm(4x12”)/15
 Lamps amount  8 sets
 Nozzle:  12 pieces
 Light Size:  W450xH260mm
 Main unit dimension (WxDxH)  580x280x1450mm
 Main unit weight  130 Kg
 Power supply  AC220V 50Hz 3KW or specified by user



Internal structure:



UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW 0



Our workshop:

UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW 1



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW 2

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW 3

UV Light Testing UV Lamp Tester Environmental Chambers 90% RH ~98% RH AC220V 50Hz 3KW 4



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
