ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test

ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test

ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test
ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test
ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 50 set per month
Contact Now
Detailed Product Description
Product Name: Flex-Cycle Testing Machines For SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount: 2 Pcs Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year

Flex Cycle Testing Machines for SFF-8417 and ISO 19642-2:2023 Multi-Conductor Cable Bending Fatigue Test
Product Overview

The C5092 Cable Cycle Flex Tester is a specialized testing machine designed for evaluating the bending fatigue performance of various cable types in compliance with ISO 19642-2 standards and SFF-8417 test procedures.

This automotive cables cyclic bending fatigue test equipment is engineered to assess cable conductivity after repeated flex cycles, providing critical quality evaluation for vehicle wiring and other cable applications.

Applications
  • Multi-conductor cables
  • Communication cables
  • Data cables
  • Robot cables
  • Automotive cables
  • Earphone wires
  • Machine cables
Testing Methodology

The testing process involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying calibrated weights, and performing controlled left-right rotational movements to assess cable conductivity after repeated cycles.

Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Technical Specifications
Parameter Specification
Model C5092
Test Amount 2 PCS
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (or customize)
Dimension (W*D*H) 1280*724*1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user
Product Images
ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test 0

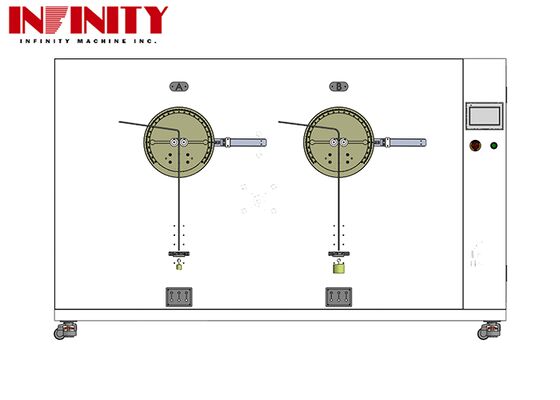

Automotive Cables Cyclic Bending Fatigue Test Machine diagram showing testing configuration
ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test 1

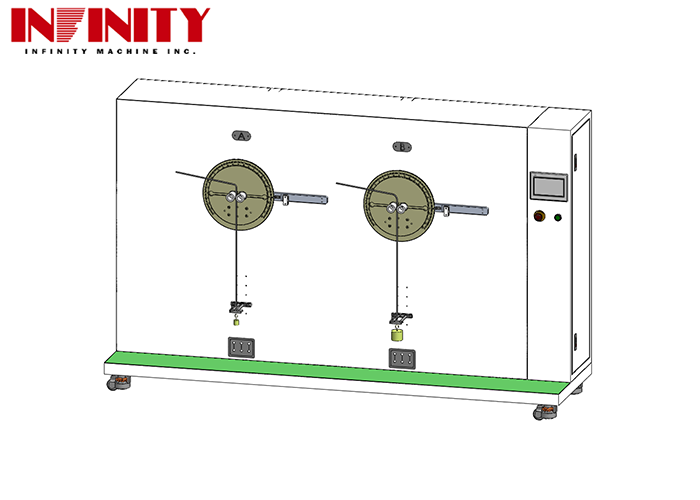

ISO 19642-2:2023 Cyclic Bending Test Apparatus for Automotive Wires
ISO 19642-2:2023 Automotive Cables Cyclic Bending Tester Flex Cycle Testing Machine for SFF-8417 Multi-Conductor Cable Bending Fatigue Test 2

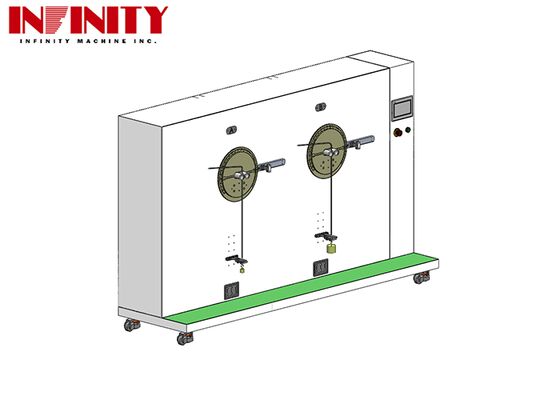

Cyclic Bending Test Equipment for Automotive Cables ISO 19642-2:2023
Packaging and Shipping
Product Packaging

Automotive cables cyclic bending testing equipment is packaged in sturdy wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification and handling.

Shipping

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive comprehensive tracking information to monitor shipment status throughout the transportation process.
