Name: ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

Home Products Bending Test Machine

ISO 19642-2 Compliant Cyclic Bending Fatigue Test Machine for Multi-Conductor Cables with Adjustable Angle Range ±90°

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	C5092

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35-40 days after order confirmed
Payment Terms:	T/T
Supply Ability:	50 set per month

Contact Now

Detailed Product Description

Product Name:	Auto Cable Cyclic Flexing Test Machine	Model:	C5092
Application:	Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc.	Test Standard:	SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount:	2 Pcs	Test Speed:	10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range:	±90° / 0°~180°	Testing Cycles:	1～999,999times
Power:	Single Phase AC220V Or 120V±10%, 50/60Hz	Warranty:	1 Year

Automotive Wires Cyclic Bending Fatigue Test Machine

Product Overview

The Auto Cable Cycle Flexing Test Machine evaluates bending fatigue performance for various cable types, compliant with ISO 19642-2 standards. This specialized testing equipment assesses cable conductivity and overall quality through repeated cyclic bending movements.

Applications

Multi-conductor cables
Communication cables
Data cables
Robot cables
Automotive cables
Earphone wires
Machine cables

Testing Methodology

The testing process involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Testing Configuration

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 pcs
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (or customized)
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

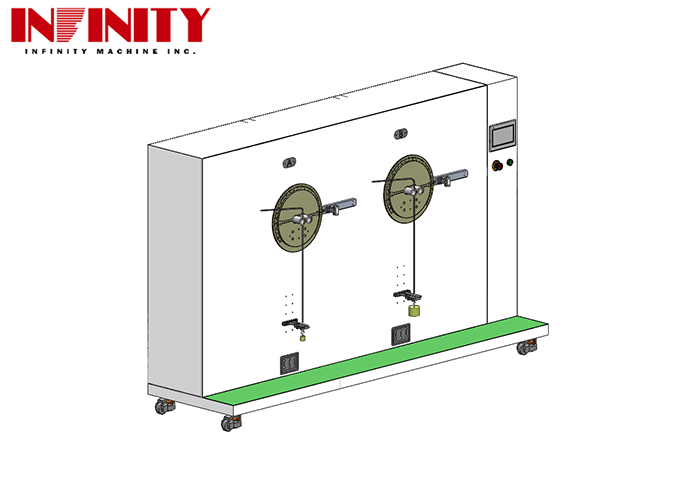

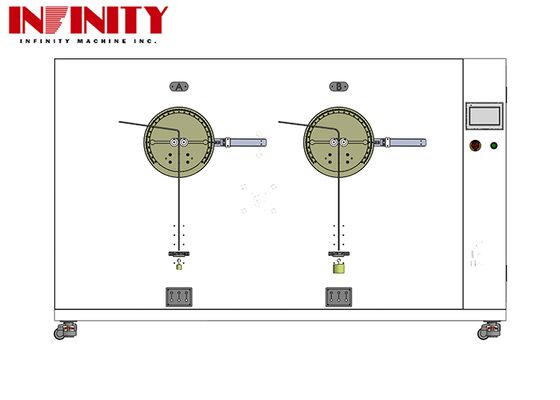

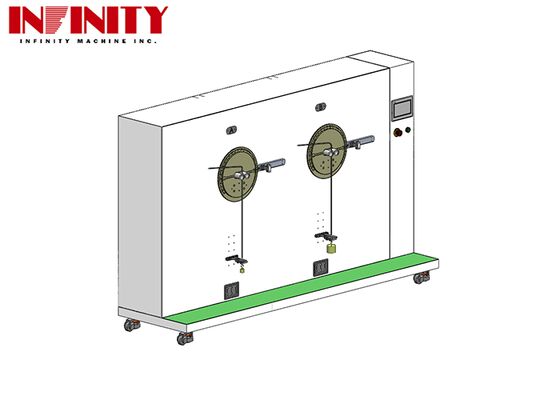

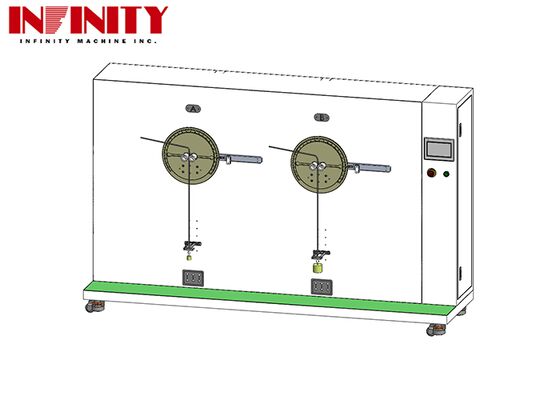

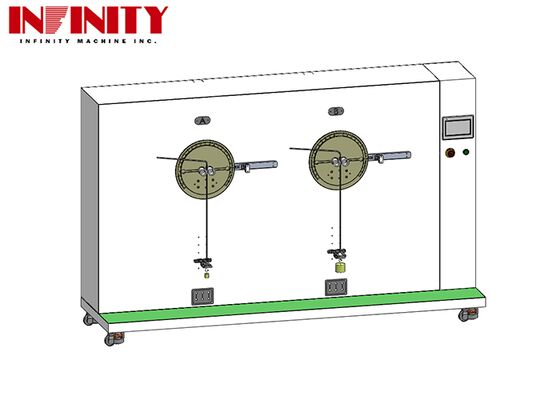

Product Appearance

Packaging and Shipping

Automotive cables cyclic bending test machine is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
