Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester

Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester

Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester
Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester
Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 50SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Cables Cyclic Bending Fatigue Test Machine Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

ISO 19642-2 compliant wire bending tester

,

cyclic bending test machine

,

wire swing left right tester

Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements
Automotive Cables Cyclic Bending Fatigue Test Machine
Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards
Purpose and Application
This cyclic bending test machine evaluates the bending fatigue performance of various cable types including:
  • Multi-conductor cables
  • Communication cables
  • Data cables
  • Robot cables
  • Automotive cables
  • Earphone wires
The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.
Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester 0
Technical Specifications
Parameter Specification
Model C5092
Test Amount 2 PCS
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H) 1280×724×1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user

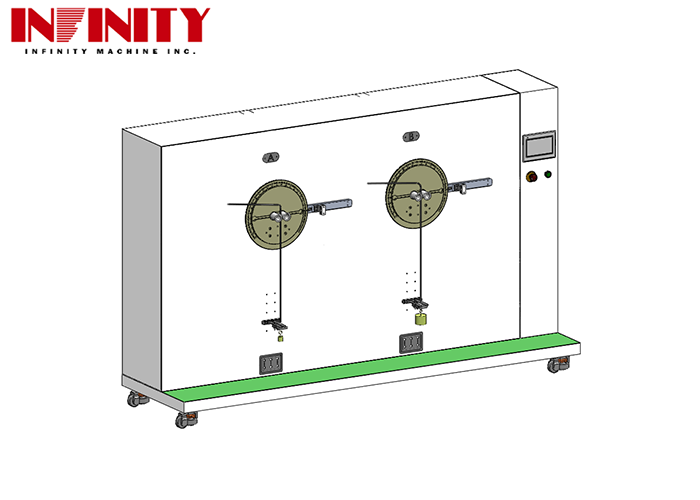

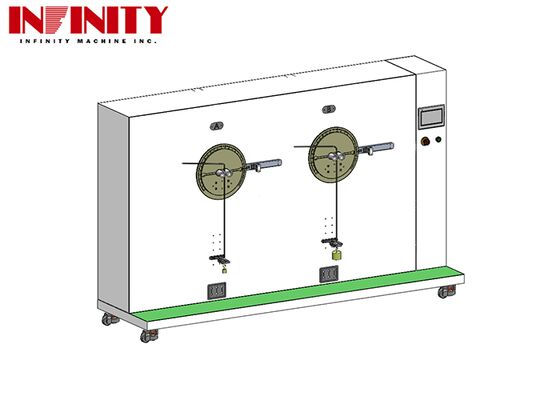

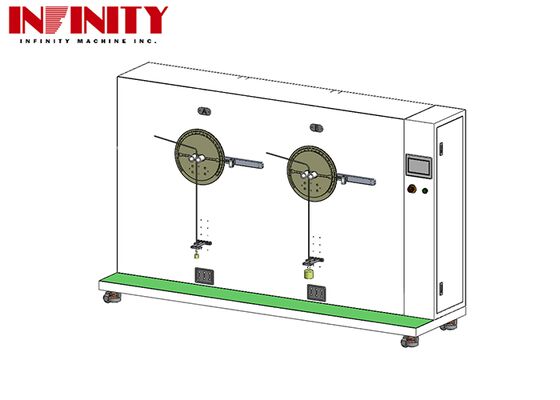

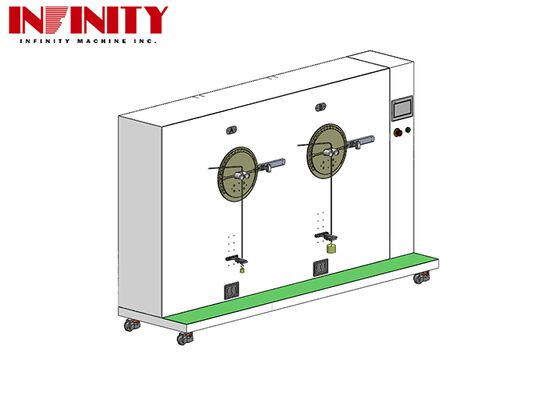

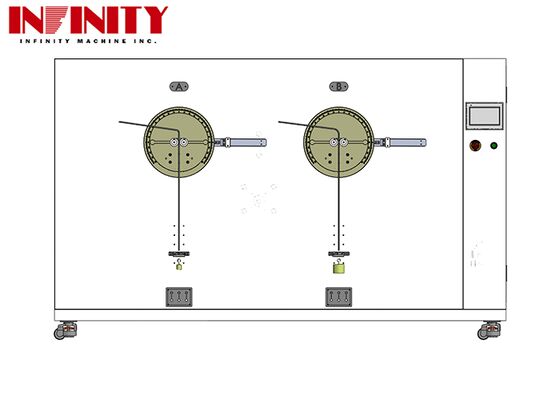

Product Appearance
Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester 1 Wire Bending Tester Meeting ISO 19642-2:2023 Cyclic Bending Requirements Wire Swing Left And Right Tester 2
Packaging and Shipping
Product Packaging
Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.
Shipping
We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
