Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2

Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2

Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2
Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2
Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine Inc.
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 50SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Cables Cyclic Bending Fatigue Test Machine Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

automotive cable bending fatigue tester

,

cyclic flex tester ISO 19642-2

,

cable cycle bending test machine

Automotive Cables Cyclic Bending Fatigue Test Machine
Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards
Purpose and Application
This cyclic bending test machine is designed for evaluating the bending fatigue performance of various cable types including multi-conductor cables, communication cables, data cables, robot cables, automotive cables, and earphone wires.

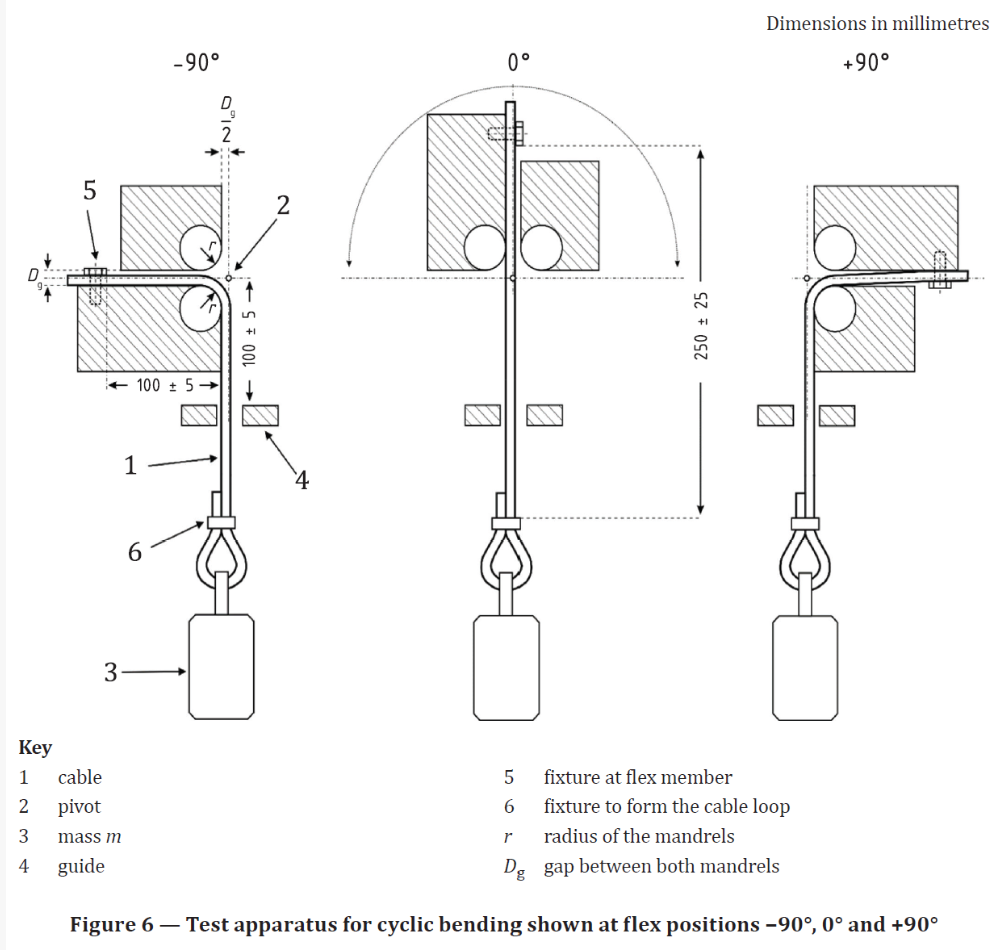

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.
Compliance Standards
  • ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
  • ISO 19642-2:2019 & ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2 0
Technical Specifications
ParameterSpecification
ModelC5092
Test Amount2 PCS
Test Speed10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range90°
Min Display Angle±1°
Testing Cycles1～999,999 times
Guide Wheel RadiusR13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate275mm
Weights100g, 200g, 500g, 1000g (or customize)
Dimension (W×D×H)1280×724×1320mm
Weight350kg
Power SupplySingle phase AC220V / AC120V 50/60Hz 5A or specified by user

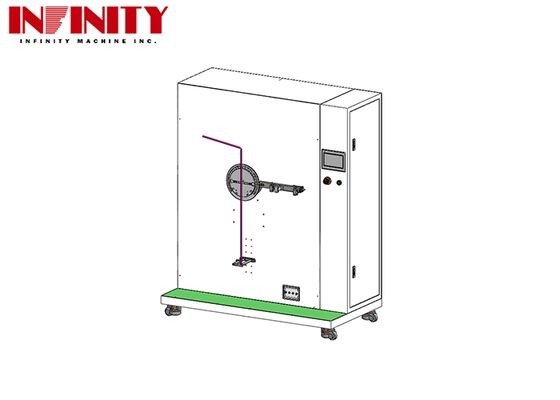

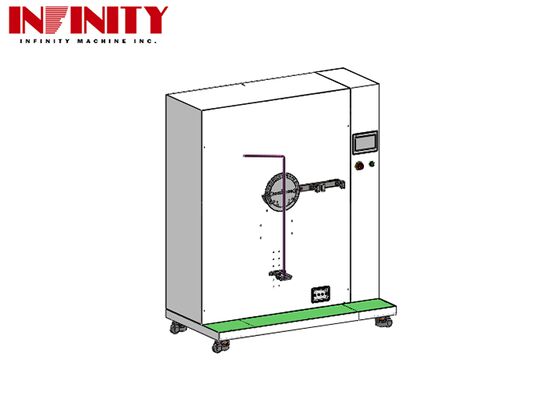

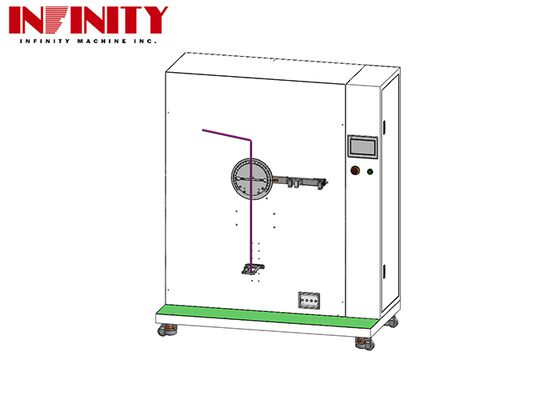

Product Appearance
Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2 1 Automotive Cables Cyclic Bending Fatigue Test Machine Cable Cycle Flex Tester ISO 19642-2 2
Packaging and Shipping
Product Packaging: Automotive cables cyclic bending testing machines are securely packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.
Shipping: We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
