Name: ISO 19642-2 Road Vehicles Automotive Cables Cyclic Test Machine Cable Bending Test Machine
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

Home Products Bending Test Machine

ISO 19642-2 Road Vehicles Automotive Cables Cyclic Test Machine Cable Bending Test Machine

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine
Certification:	ISO
Model Number:	C5092

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35-40 days after order confirmed
Payment Terms:	T/T
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Cable Flex Cyclic Testing Machine	Model:	C5092
Application:	Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc.	Test Standard:	SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount:	2 PCS	Test Speed:	10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range:	±90° / 0°~180°	Testing Cycles:	1～999,999times
Power:	Single Phase AC220V Or 120V±10%, 50/60Hz	Warranty:	1 Year
Highlight:	ISO 19642-2 automotive cable test machine , cable bending test machine for vehicles , automotive cyclic bending test machine

ISO 19642-2 Road Vehicles Automotive Cables Cyclic Test Machine

Model: C5092

Purpose

This automotive cable bending test machine is designed for cyclic bending testing of multi-wire cables, communication cables, earphone cables, and similar products. The testing method involves short-circuit connecting one end of the cable, fixing it on the rotation plate, applying weights, and performing left-right rotation cycles to evaluate cable conductivity after specified rotations and assess cable quality.

Test Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019
ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (each 2 pcs)
Dimension (W×D×H)	1280×724×1320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

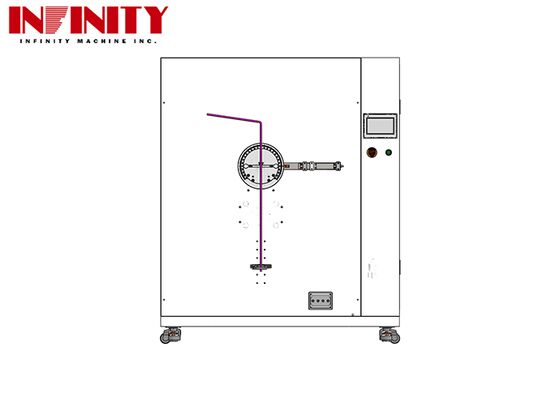

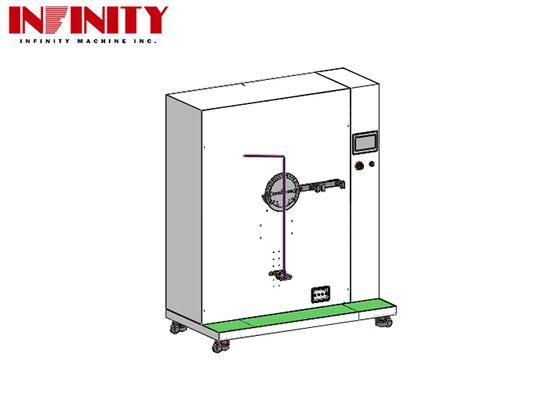

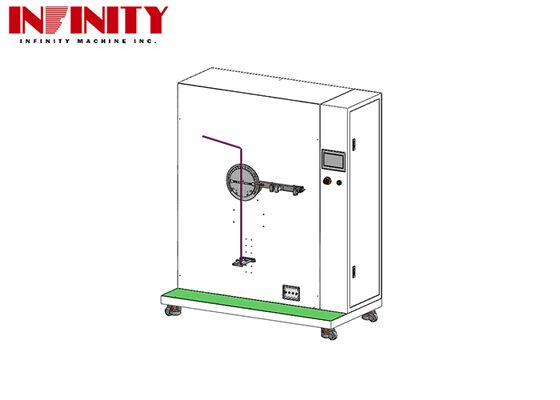

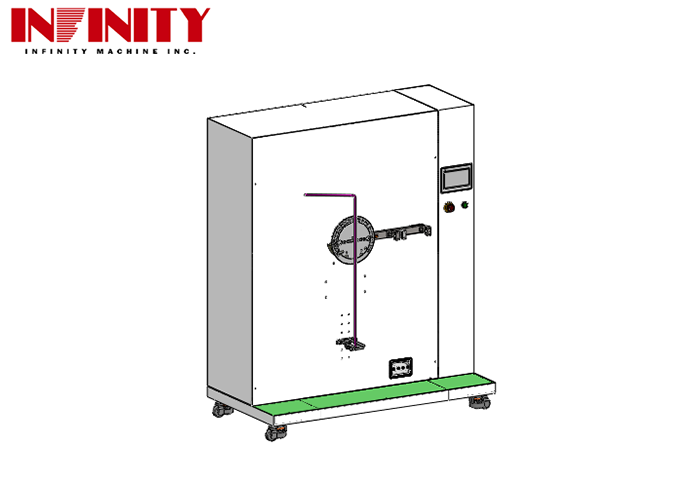

Appearance

Packaging and Shipping

Product Packaging: Automotive cables cyclic bending test machines are securely packaged in wooden crates to prevent damage during transportation. The exterior is clearly labeled with shipping marks for easy identification.

Shipping: We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
