ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine

  • ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
  • ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
  • ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
  • ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: ISO
Model Number: C5092
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 35-40 days after order confirmed
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: Cable Flex Cycle Testing Machine Model: C5092
Application: Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc. Test Standard: SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure,
Test Amount: 2 PCS Test Speed: 10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range: ±90° / 0°~180° Testing Cycles: 1～999,999times
Power: Single Phase AC220V Or 120V±10%, 50/60Hz Warranty: 1 Year
Highlight:

ISO 19642-2 automotive cable tester

,

multi-core cable bending test machine

,

flex cyclic testing machine for vehicles

ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines
Model: C5092
Purpose
Road vehicles automotive cables cyclic cable bending test machines are designed for bending testing of multi-wire cables, communication cables, earphone cables, and similar products. The testing method involves short-circuit connecting one end of the cable and fixing it on the rotation plate, applying weight to the cable, then performing left and right rotations to check cable conductivity after specified rotation cycles and evaluate cable quality.
Test Standards
  • ISO 19642-2 Road vehicles -- Automotive cables -- Part 2: Test methods
  • ISO 19642-2:2019
  • ISO 19642-2:2023
  • ISO 14572
  • GB/T 25085.2--2024
  • SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure
Specifications
Model C5092
Test Amount 2 PCS
Test Speed 10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range 90°
Min Display Angle ±1°
Testing Cycles 1～999,999 times
Guide Wheel Radius R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate 275mm
Weights 100g, 200g, 500g, 1000g (each 2 pcs)
Dimension (W×D×H) 1280×724×1320mm
Weight 350kg
Power Supply Single phase AC220V / AC120V 50/60Hz 5A or specified by user

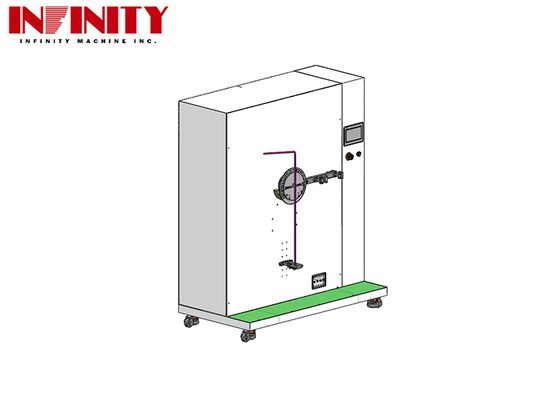

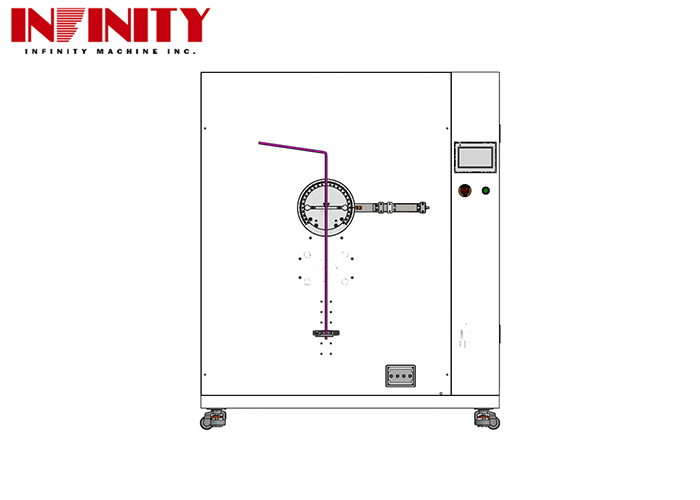

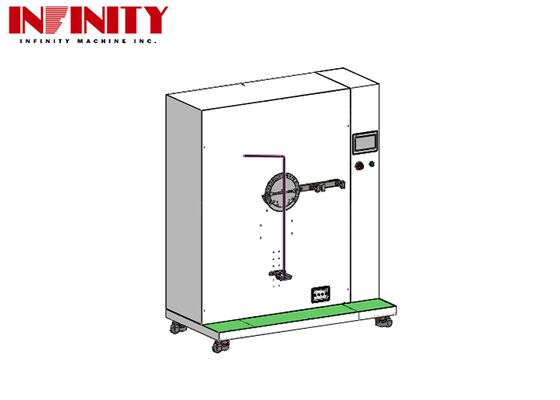

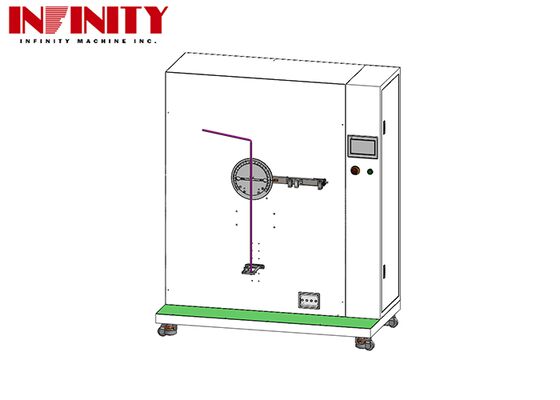

Product Appearance
ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine 0 ISO 19642-2 Road Vehicles Automotive Cables Flex Cyclic Testing Machines Multi Core Cable Bending Cycle Test Machine 1
Packaging and Shipping
Product Packaging:
Automotive cables cyclic bending test machines are securely packaged in wooden crates to prevent damage during transportation. The exterior is clearly labeled with shipping marks for easy identification.
Shipping:
Shipping is handled by reliable, experienced shipping companies to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status throughout the delivery process.

Tag:

bend test equipment,

flex tester machines,

cable testing machine
