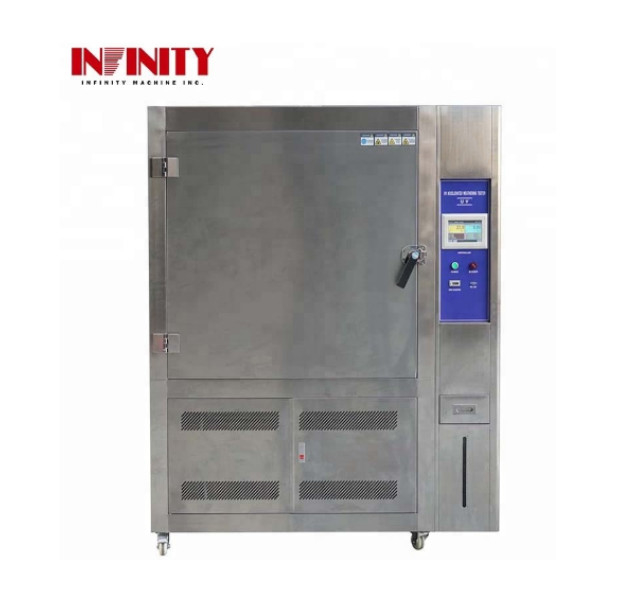

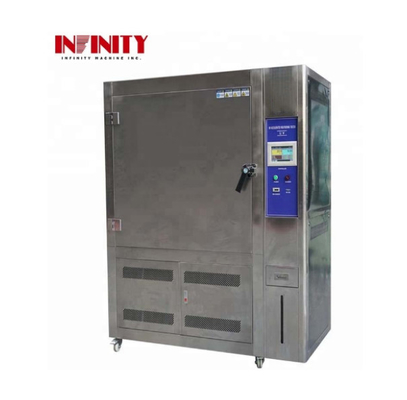

Name: UV Irradiation Chamber Ultraviolet Irradiation Testing Machine 350nm 365nm 315~400nm 280~315nm
Brand: Infinity Machine International Inc.
SKU: IE60 series
Price: 100000.00 USD
Availability: InStock

Home Products Environmental Test Chamber

UV Irradiation Chamber Ultraviolet Irradiation Testing Machine 350nm 365nm 315~400nm 280~315nm

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	IE60 series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	T/T
Supply Ability:	200SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	UV Test Chamber	Model:	IE60 Series
Temperature Range:	RT+20℃~70℃	Humidity Range:	≥90%RH
Applicable Standard:	ISO 4892-3、ISO 11507;ASTM D4329、D499、D4587、D5208、G154、G53；	Feature:	Automatic Operation Of Equipment Control, Automatic Test Cycle, Saving Labor, Improve Test Efficiency.
Box Structure:	Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes	Sample Holder:	Aluminum Frame Type Base Frame Vision Plate, 24pcs
Power:	Electronic	Warranty:	1 Year
Highlight:	365nm uv irradiation chamber , 350nm uv irradiation chamber , Ultraviolet Irradiation Testing Machine

UV irradiation chamber Ultraviolet irradiation testing machine 350nm 365nm 315~400nm 280~315nm

Equipment Overview:

This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

UV Irradiation Chamber Ultraviolet Irradiation Testing Machine 350nm 365nm 315~400nm 280~315nm 0

Applicable standards:

ASTM D4329,D499,D4587,D5208,G154,G53；
ISO 4892-3,ISO 11507；
EN 534；EN 1062-4；BS 2782；JIS D0205；SAE J2020

Features:

Using the original American UV lamp, the light stability is good, and the test results are high reproducibility.
Provides the best sunlight UV simulation, low maintenance and easy to use.
Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Specification parameter:

Model	IE60304	IE60313
Temperature range	RT+20℃~70℃
Humidity range	≥90%RH
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
Center distance inside the lamp	70mm
The distance between the specimen and the center of the lamp	50±3mm
Modulator tube	UVA-340 L=1200/40W,8pcs	UVB-313 L=1200/40W,8pcs
Irradiance	Adjustable within 1.2W/m²	Adjustable within 1.0W/m²
Ultraviolet wavelength	315-400nm	280-315nm
Effective irradiation region	900×210mm
Irradiated blackboard temperature	50℃~70℃
Internal dimension:WxHxD(mm)	1140400390
Outside box size:WxDxH(mm)	13005001360
Box structure	Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes
Sample holder	Aluminum frame type base frame vision plate, 24pcs
Standard sample size	75×290mm (Special specifications need to be explained)
Safety protection device	Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply	AC220V;50Hz;5KW

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
