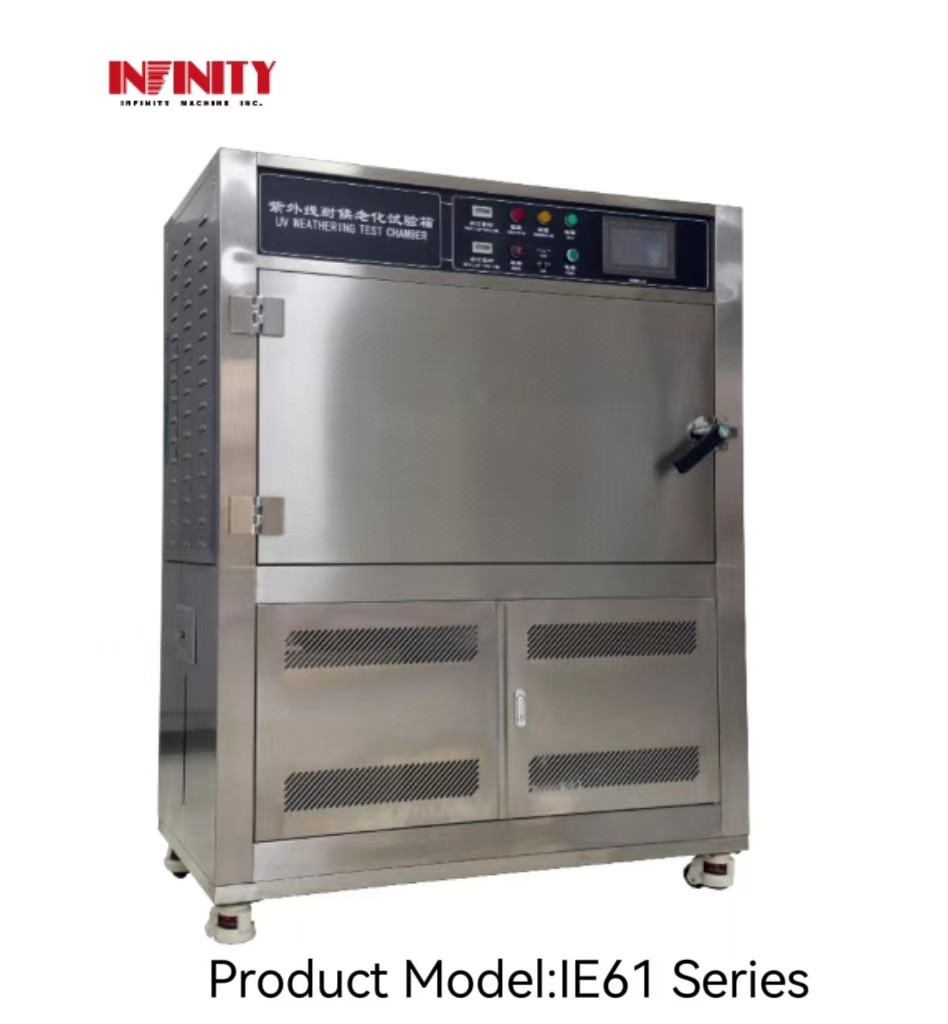

UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine

UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine

  • UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine
  • UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine
UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: ISO
Model Number: IE61 series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: T/T
Supply Ability: 200SETS PER MONTH
Contact Now
Detailed Product Description
Product Name: UV Climate Test Chamber Application: It Is Widely Used To Evaluate The Weather Resistance Of The Material.
Applicable Standard: ISO 4892-3、ISO 11507 Feature: Provides The Best Sunlight UV Simulation, Low Maintenance And Easy To Use.
Model: IE61 Series Temperature Range: RT+20℃~70℃
Humidity Range: ≥90%RH Box Structure: Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes
Power: Electronic Warranty: 1 Year
Highlight:

Stainless Steel Climatic Test Chamber

,

UV Accelerated Aging Test Chamber

,

UVA340 UVB313 Climatic Test Chamber

UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine



Equipment Overview:
This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine 0
Applicable standards:

  • ASTM D4329,D499,D4587,D5208,G154,G53;
  • ISO 4892-3,ISO 11507;
  • EN 534;EN 1062-4;BS 2782;JIS D0205;SAE J2020

Features:

  • UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine 1Using the original American UV lamp, the light stability is good, and the test results are high reproducibility.
  • UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine 2Provides the best sunlight UV simulation, low maintenance and easy to use.
  • UV Accelerated Aging Climatic Test Chamber Ultraviolet Temperature Condensation Test Machine 3Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Specification parameter:

Model number

IE61304

IE61313

Temperature range

       RT+20℃~70℃

Humidity range

≥90%RH

Temperature fluctuation

  ±0.5℃

Temperature uniformity

   ≦1.0℃

Center distance inside the lamp

   70mm

The distance between Sample and the center of the lamp

50±3mm

Modulator tube /lamp      UVA-340 L=1200/40W,8 pcs      UVB-313 L=1200/40W,8 pcs
Irradiance         Adjustable within 1.2W/㎡          Adjustable within 1.0W/㎡
Ultraviolet wavelength

     315-400nm

           280-315nm

Effective irradiation region

900×210mm

Irradiated blackboard temperature

50℃~70℃

Inner box size:WxHxD(mm)

         1180*650*600

Outer box size:WxDxH(mm)

         1300*620*1630

Box structure Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes

Sample holder

Aluminum frame type base frame vision plate, 24 pcs

Standard sample size

        75×290mm(Special specifications need to be explained)

Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over-temperature alarm, water shortage protection
Power supply

AC220V;50Hz;5KW



Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.



Packing and Shipping:

Product Packaging:

The Environmental Test Cahmber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping:

The shipping of the Environmental Test Cahmber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
