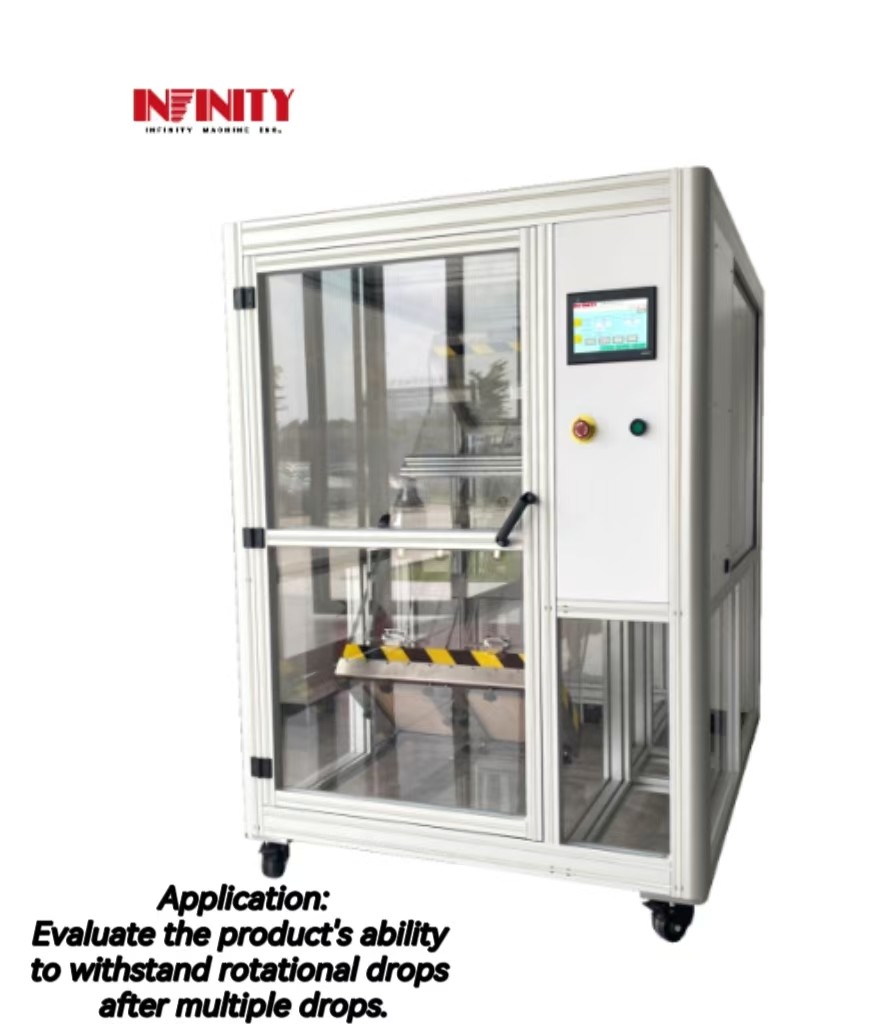

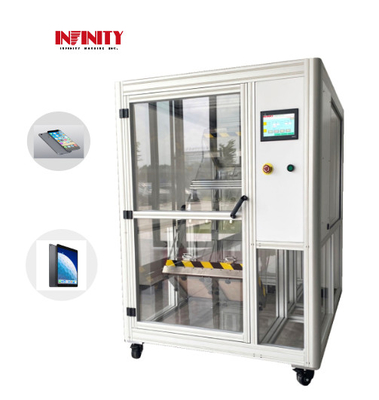

Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test

Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test

  • Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test
  • Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test
Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IB1151
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Tumble Drop Test Machine Implementation Standards：: IEC 60068-2-32；GB/T 2423.8-1995
Warranty: 1 Year Power: Electronic
Highlight:

Touch Screen Control Drop Test Machine

,

Electronic Products Drop Test Machine

,

Tumble Drop Test Machine

Tumble Drop Test Machine

Product Model:IB1151





Equipment use:

This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.

Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test 0

Features:

  • Designed with dual stations to meet simultaneous testing of 500 and 1000mm drop heights.
  • Using Panasonic servo motor drive to set the rotation speed, ensuring it can stop at any position with low noise and smooth operation.
  • Using touch screen control, you can set the number of tests, test speed, and have a power-down memory function. It will automatically stop when the set number of times is reached.
  • Adopt safety door design: open the safety door, the drum stops running, and close the safety door before it can run.

Specifications:

             Project

                                   Specification

Implementation standards

IEC 60068-2-32；GB/T 2423.8-1995

Drop height

500(1set)1000mm(1set)

Maximum weight of test piece

5KG

Drop frequency

1~40 Times / min (customized)

Roller width

300mm

Barrel material

Transparent acrylic

Falling plank material

3mm thickness steel plate+19mm Thickness solid wood board (or specified)

Number of drops

1~9999999 (customized)

Machine size (WxDxH)

W1445xD1560xH1650mm

Machine weight

378KG

Working power supply

AC220V 5A 50Hz

Equipment power

750Ｗ





Dimensions:(mm)

Touch Screen Control Tumble Drop Test Machine for Electronic Products Drop Test 1
