| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | BD1050S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Repeated Free Falls Tumbling Drop Test Machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Repeated Free Falls Tumble Test Machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Repeated Free Falls Tumbling Test Machine : 50 sets per month |
| Products: | Tumble Tester | Display: | Touch Panel Control |
|---|---|---|---|
| Test Amount: | 2 Set, 3 Set, 4 Set | Drop Width: | 350mm |
| Drop Height: | 500mm Or 1000mm | Test Speed: | 5~20 Times /min |
| Test Cycle: | 1~999,999times (can Set) | Dimension: | 1300x1200x1500mm |
| Weight: | 350kg | Power Supply: | AC220V 50Hz 5A Or Specified By User |
| Highlight: | Repeated Free Fall Tumble Tester,IEC Standard 60068-2-32 Tumble Tester,Repeated Free Fall Tumble Test Machine |
||

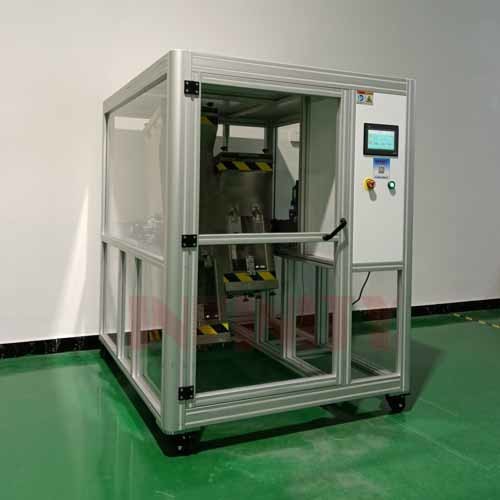

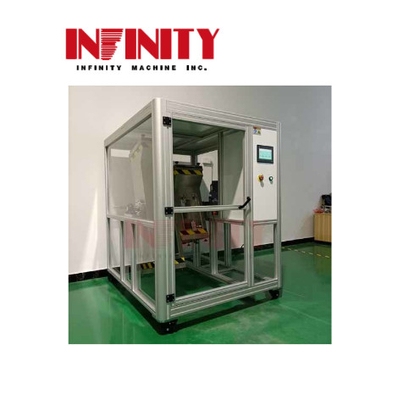

Model: BD1050
Standards:
Free drop repeated tumbling test apparatus complies with IEC60068-2-32, GB/T2324.8 and other test standards.
Application:
Repeated free fall tumbling test apparatus is suitable for continuous rotation drop test of small consumer electronic products such as mobile phones, cameras, tablets, Bluetooth speakers, chargers, earphones, Pad, electronic dictionaries, CD, MP3, MP4, MP5, remote controller, adapters and so on.
The repetitive free-fall tumbling tester is a device specially designed for continuous rotary drop testing of small consumer electronics products. It works on a wide range of products, including mobile phones, cameras, tablets, Bluetooth speakers, chargers, headphones, pads, electronic dictionaries, CDS, MP3, MP4, MP5, remote controls, adapters, and more.
The device works by placing the product to be tested in a rotating drum, and then letting the drum continuously rotate, so that the product constantly falls and rolls in the drum. This test can simulate the unexpected falls and rollover situations that the product may encounter during daily use to evaluate the durability and fall resistance of the product. The repeated free-fall tumbling tester has a wide range of applications, which can provide important testing means for the design, improvement and factory inspection of various small electronic products.
Continuous rotary drop testing helps manufacturers assess the performance of products in the event of unexpected drops and rollover, including the durability of the housing, the stability of internal components, and the overall reliability of the product. The test results can provide an important reference for product design and improvement, ensuring that the product can maintain good performance and reliability in the face of unexpected falls and rolls. This helps to improve product quality and reduce the damage caused by falling during use, while also helping to ensure the user experience and product safety of consumers.

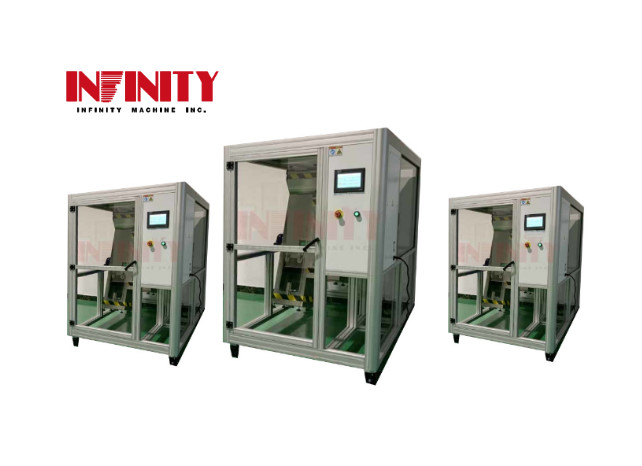

There have double tumbling barrels testing equipment, three tumbling drop tester, four barrels tumbling drop tester apparatus . In addition, we can customize the tumble drop test machine according to your requirements.
Besides, the free fall height have 1000mm and 500mm for your selection.
Specification:
| Products | Free Fall Tumbling Drop Test Apparatus |
| Model | BD1050 |
| Test amount | 2 set, 3 set or 4 set |
| Drop width | 350mm |
| Drop height | 500mm or 1000mm |
| Test speed | 5~20 times /min |
| Test cycle | 1~999,999times (can set) |
| Dimension (WxDxH) | 1300x1200x1500mm |
| Weight | 350kg |
| Power Supply | AC220V 50Hz ( AC 110V 60Hz ) 5A or specified by user |

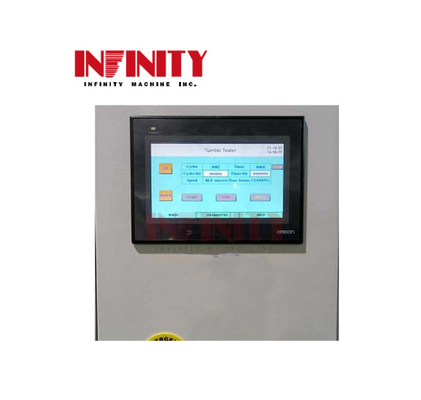

Operating Interface:
Free fall tumbling test apparatus is controlled by touch panel, it is more easier and more convienient for operating.
Also, free falls tumbling drop apparatus have English and Chinese language for your option.
Working Video:
FAQ:
| 1. How to choose the most suitable repeated free fall tumble tester from INFINITY MACHINE INC.? |
|
Our professional team will provide specialized suggestion to you when we received your testing requirements.
|
| 2. What’s the delivery term? |
|
At most of time, we have stock in the factory. If there is no stock, normally, the lead time is about 15-20 working days.
|
| 3. Do you accept customization service? |
|
Yes, of course, we are not only offer standard machines, but also provide customized service according to your request. If you have any testing requirements, please contact us.
|
| 4. Can we visit your factory before order? |
|
Sure, we sincerely welcome you to visit our factory, if it is not convenient for you to visit our facotry, you could arrrange your friends to visit our company as well.
|
| 5. Do you have customers in our country? |
|
Our equipment is not only sold in China (mainland, Hong Kong, Taiwan), but also sold to more than 70 countries, such as, The United States, Canada, Mexico, Germany, Britain, France, Italy, Sweden, Denmark, Poland, Portugal, the Netherlands, Ireland, Turkey, Hungary, Austria, Spain, Bosnia and Herzegovina, Romania, Bulgaria, Serbia, Belgium, Slovakia, Lithuania, Latvia, belarus, Russia, New Zealand, Australia, Vietnam, South Korea, Japan, Singapore, Malaysia, Thailand, the Philippines, the United Arab Emirates, Iran, Sudan, Kuwait, Saudi Arabia, Qatar, Uzbekistan, Lebanon, Sri Lanka, South Africa, Afghanistan, Botswana, Nigeria, Gambia, Namibia, Cameroon, Israel, Pakistan, Indonesia, India, Egypt, Brazil, Chile, Argentina, Colombia, Puerto Rico, Peru, Guatemala, Costa Rica, Uruguay and so on.
|
| 6. How about your warranty? |
|
Generally, we will provide 12 months warranty for testing machines.
|
| 7. How about the packing for testing machine, are there have safe protected during transportation? |
|
Usaully our equipment is packed by standard export wooden box, also, our products have been delivered to more than 70 countries, so we have rich experience to protect your machines.
|
| 8. What is the order process? |
|
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
|
| 9. How to install and use the testing equipments? |
|
We will provide installation instructions to you, also, we will prepare user manual and operating video in English version for you. If you have any question about the machine, please contact us freely.
|
