| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | DT2150 / DT2200 / DT2300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Drop Test MachineS: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Carton Drop Testing Machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Carton Drop Test Machine | Model: | DT2150 / DT2200 / DT250 / DT2300 |
|---|---|---|---|
| Max Load: | 100kg | Drop Height Range: | 300~1500mm / 300~2000mm / 300~3000mm |
| Display: | Digital Displayer | Height Accuracy: | ≤2% Of The Setted Value |
| Test Space: | 800x600x1000mm | Angle Tolerance: | ≤5° |
| Motor: | 1/2HP | Power Supply: | AC380V 50Hz Or Specified By User |
| High Light: | drop test equipment,drop weight tear tester,ISTA Amazon Packaging Drop Test Machine |
||

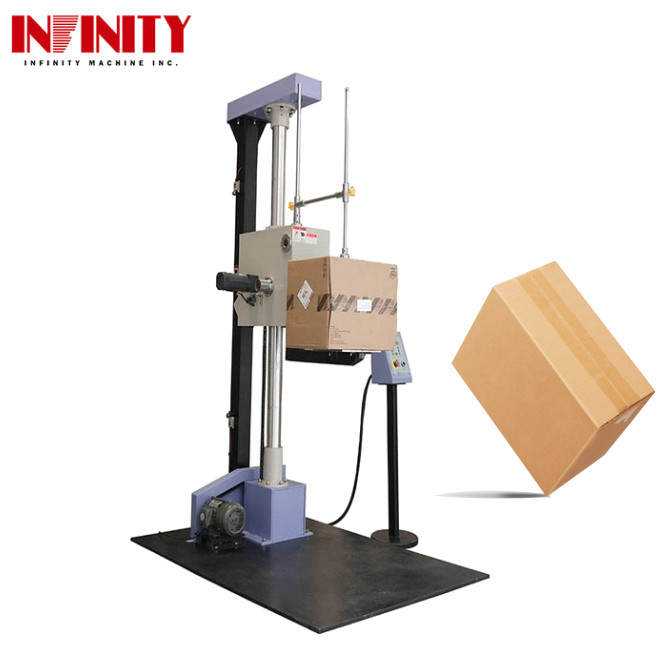

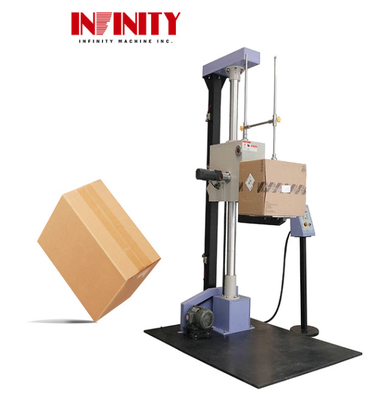

Purpose:
ISTA package products parcel drop test machine simulates dropping of the packaged finished products to evaluate their damages. All the rhombohedrons, angles and faces of the package container can be tested. so that manufacturer knows how to take measures effectively to protect the products against damage during transportation. During dropping, the carrier will rotate to allow the packed products to fall freely. Packaging carton drop testing machine can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.
Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995, ASTM, ISTA
Pakaaging parcel drop test machine is under vertical impact for complete and fully loaded package during transport.
Product:
Specialties:
1. Package carton drop test machine is with structure design of single arm and double poles: this design can conquer the accident dropping in the Pneumatic design when
power is suddenly cut off or the air source is interrupted. It can be up and down stably and no trembling in the process of up and down.
2. Support arm is with electronic control resetting, no need hand resetting, which can avoid the accident by hand resetting operation.
3. Support arm is designed to be Electro-magnet withdrawing, and assisted by the pulling spring, which can make sure the testing samples can be free dropping impact by sudden withdrawing of the support arm, the difference between real impact speed and free dropping impact speed is within±1%.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Impacted base board is steel, and with flat surface.
6.Control box:
Digital display design: Can display the current height of testing supporter in the process of up and down, the difference between real height and the display is within +/-2%.
Height setting control: Micro adjusting control, can rapidly set to the needed testing height.
Specification:
| Model | DT2150 | DT2200 | DT2300 |
| Dropping height range | 300~1500mm | 300~2000mm | 300~3000mm |
| Display | Digital displayer | ||
| Height accuracy | ≤2% of the setted value | ||
| Maximum load | 100kg | ||
| Test space (LxWxH) | 800x600x1000mm | ||
| Angle tolerance | ≤5° | ||
| Motor | 1/2HP | ||
| Dimension (WxDxH)mm | 1700x1200x2515 | 1700x1200x2835 | 1700x1200x3235 |
| Weight | About 750kg | About 800kg | About 900kg |
| Power supply | AC380V 50Hz or specified by user | ||
Application:
Product drop test machine is suitable for the drop test of toys, electronics, electrical appliances, communications, IT, ceramics, furniture, gifts, packaging and other finished products or components. Product drop (drop without packaging), packaging drop (the finished product and the outer packaging fall together) ), in order to evaluate the impact resistance of the product when it is transported, or the impact strength of the product good or damage when it is dropped.
Our factory:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
